16585 - Toro Walk-Behind Mower (SN: 008004252 - 008999999) (1988) HOUSING ASSEMBLY Parts Diagram

Walk-Behind Mower

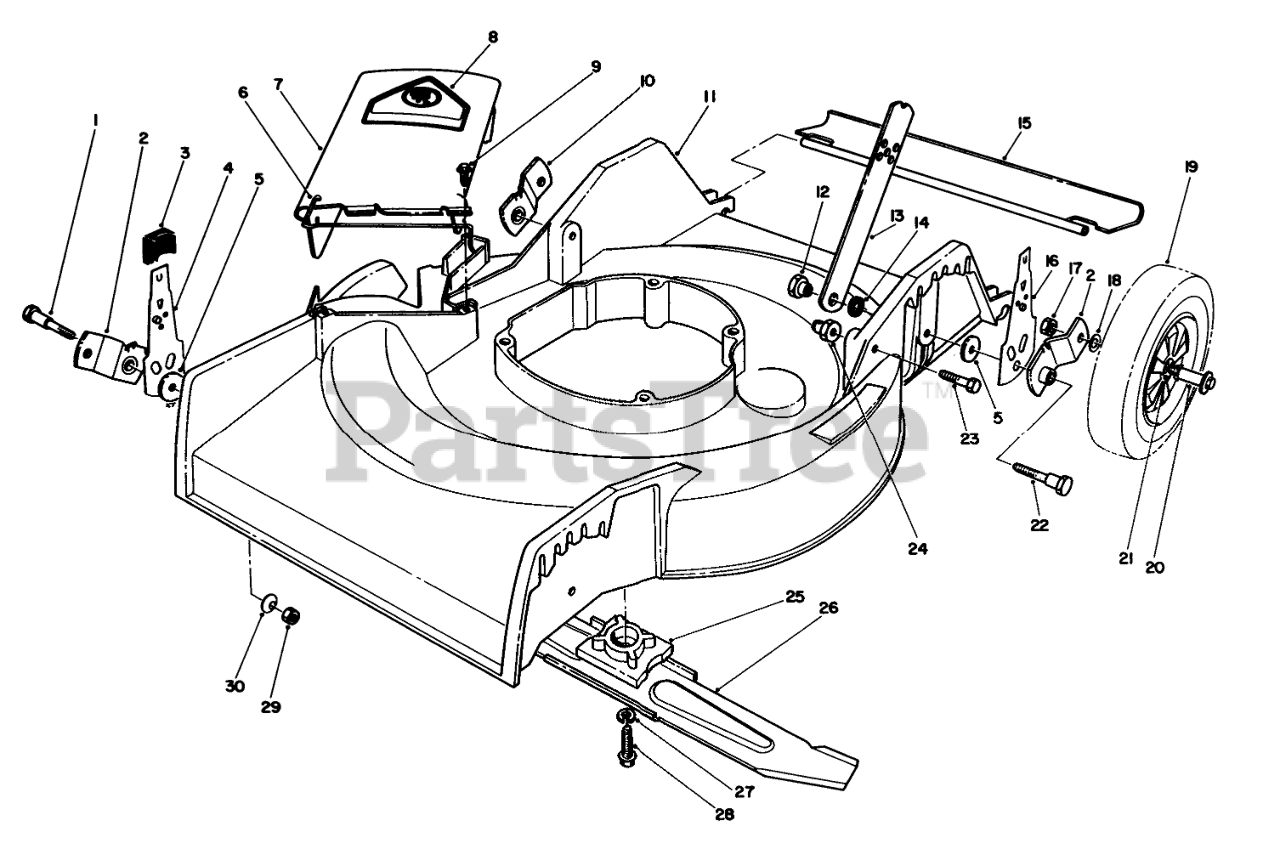

HOUSING ASSEMBLY Parts Diagram

  • Title
1

Toro 3-0655

5/16-18 PIVOT SCREW

$15.99

$

In Stock, only 1 left!

0

2

Toro 20-2140

Pivot Arm
(Superseded to 98-1511)

$

$

Not available

3

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 8

0

4

Toro 66-6070

RH FRONT SPRING ARM ASM

$16.99

$

In Stock, only 1 left!

0

Toro 66-6010

LH FRONT SPRING ARM ASM

$14.99

$

In Stock, only 1 left!

0

5

Toro 33-0390

PIVOT WASHER

$3.99

$

In Stock, only 2 left!

0

6

Toro 20-2640

SPRING HINGE

$

$

Not available

7

Toro 27-7817

Deflector Assembly (Incl. Ref. #6 & 8)
(Superseded to 13-4049)

$

$

Not available

8

Toro 39-5770

DECAL-DANGER

$8.99

$

In Stock, Qty 8

0

9

Toro 46-6811

SCREW-HWH

$3.49

$

In Stock, only 3 left!

0

10

Toro 20-2130

Pivot Arm
(Superseded to 98-1527)

$

$

Not available

11

Toro 62-7900

Housing
(Superseded to 13-2439)

$

$

Not available

12

Toro 27-6520

HANDLE PIVOT NUT

$9.99

$

Usually ships in 3-6 days

0

13

Toro 27-7080

HANDLE LATCH

$

$

Not available

14

Toro 3-3287

SPACER

$5.49

$

In Stock, Qty 6

0

15

Toro 66-5990

SHIELD - TRAILING

$

$

Not available

16

Toro 66-6030

REAR SPRING ARM ASM

$16.99

$

Usually ships in 3-6 days

0

17

Toro 52-3620

Nut
(Superseded to 32153-11)

$4.49

$

In Stock, Qty 15

0

18

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 18

0

19

Toro 27-6200

Wheel & Tire Assembly (Incl. Ref. #21)

$

$

Not available

20

Toro 27-6230

BOLT-WHEEL

$8.49

$

Usually ships in 3-6 days

0

21

Toro 27-6250

BUSHING

$2.99

$

In Stock, Qty 8

0

22

Toro 28-8880

PIVOT SCREW

$10.99

$

In Stock, only 2 left!

0

23

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

24

Toro 12-2080

HANDLE PIVOT NUT

$25.99

$

Usually ships in 3-6 days

0

25

Toro 49-7900

BLADE RETAINER

$73.99

$

In Stock, only 2 left!

0

26

Toro 20-2720

Blade
(Superseded to 20-2720-03)

$41.99

$

In Stock, only 2 left!

0

27

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

28

Toro 26-0671

SCREW-HH

$9.49

$

In Stock, Qty 20+

0

29

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

30

Toro 3290-456

WASHER-BELLEVILLE

$2.99

$

In Stock, Qty 19

0
