16585 - Toro Walk-Behind Mower (SN: 008000001 - 008004251) (1988) ENGINE ASSEMBLY Parts Diagram

Walk-Behind Mower

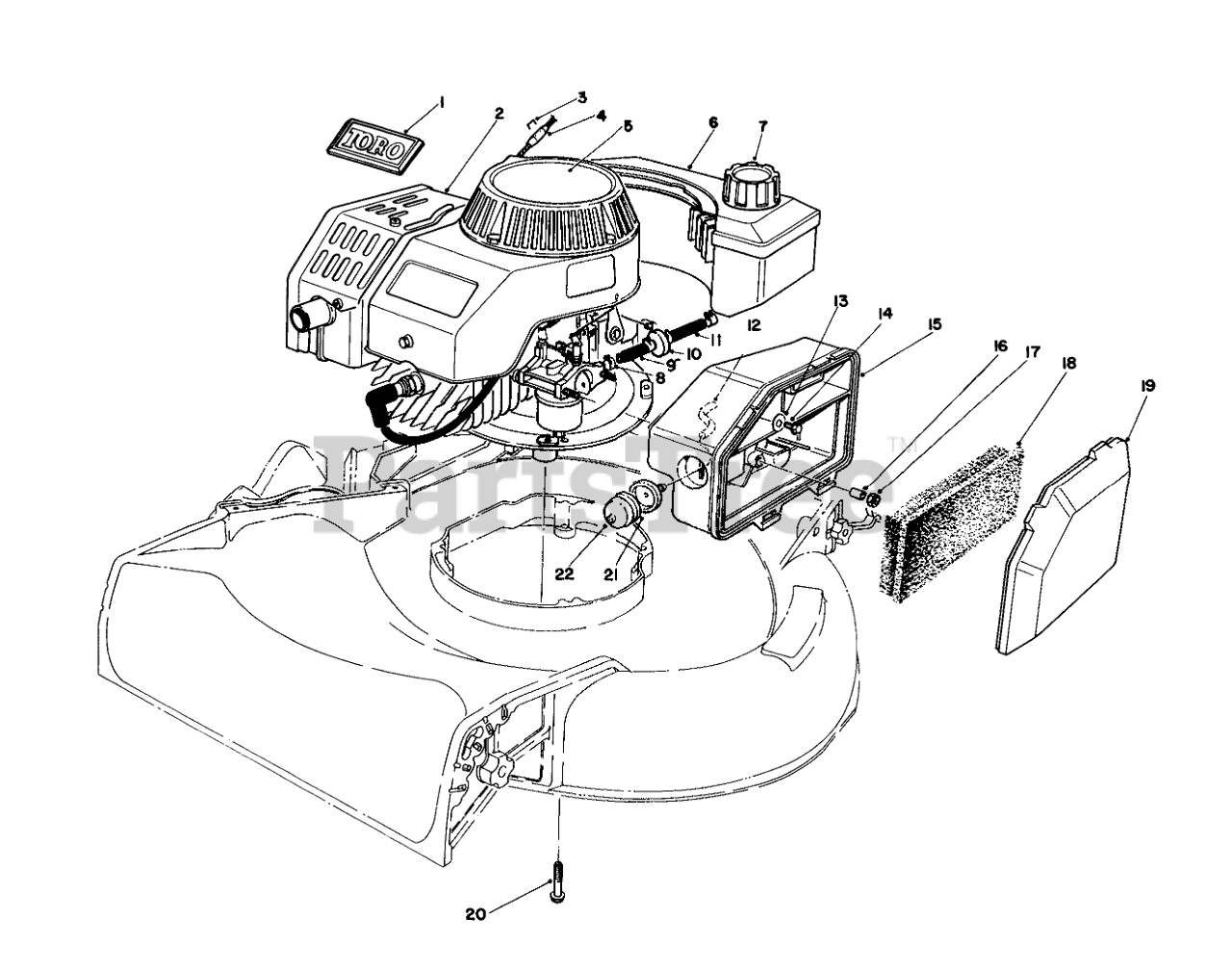

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 46-8290

TORO LOGO PLT
(Superseded to 98-3206)

$2.49

$

Usually ships in 3-6 days

0

2

Toro 51-0413

Engine
(Superseded to 12-8099)

$

$

Not available

3

Staple

$

$

Not available

4

Toro 47-2480

STOP-ROPE

$

$

Not available

5

Toro 57-9870

DECAL

$

$

Not available

6

Toro 81-0161

Fuel Tank Assembly

$

$

Not available

7

Toro 55-3575

GAS CAP ASM

$20.99

$

Usually ships in 3-6 days

0

8

Toro 2412-95

CLAMP-FUEL LINE

$1.49

$

In Stock, Qty 8

0

9

Toro 51-3216

HOSE-FUEL

$5.49

$

In Stock, only 4 left!

0

10

Toro 56-6360

FILTER-FUEL

$6.99

$

In Stock, only 4 left!

0

11

Toro 51-3215

HOSE-FUEL

$3.99

$

Usually ships in 3-6 days

0

12

Toro 44-3172

HOSE-PRIMER

$6.49

$

In Stock, only 1 left!

0

13

Toro 3256-16

WASHER-FLAT

$0.99

$

In Stock, Qty 18

0

14

Toro 51-2690

SCREW-HH

$2.49

$

In Stock, only 4 left!

0

15

Toro 63-9330

BODY-AIR CLEANER

$

$

Not available

16

Toro 62-3980

SPACER

$2.99

$

Usually ships in 3-6 days

0

17

Toro 50-7180

NUT

$6.99

$

In Stock, Qty 5

0

18

Toro 63-9380

ELEMENT-AIR CLEANER

$12.99

$

In Stock, only 2 left!

0

19

Toro 63-9340

COVER-AIR CLEANER

$

$

Not available

20

Toro 66-9302

SCREW-HHF, WHIZ

$4.99

$

Usually ships in 3-6 days

0

21

Toro 44-2750

BODY-PRIMER

$8.99

$

In Stock, Qty 20+

0

22

Toro 44-3100

Bulb Primer
(Superseded to 66-7460)

$6.49

$

In Stock, Qty 20+

0

23

Toro 56-2530

Fuel Filter Kit (Incl. Ref. #8-11

$

$

Not available
