16585 - Toro Walk-Behind Mower (SN: 007000001 - 007999999) (1987) BRAKE ASSEMBLY Parts Diagram

Walk-Behind Mower

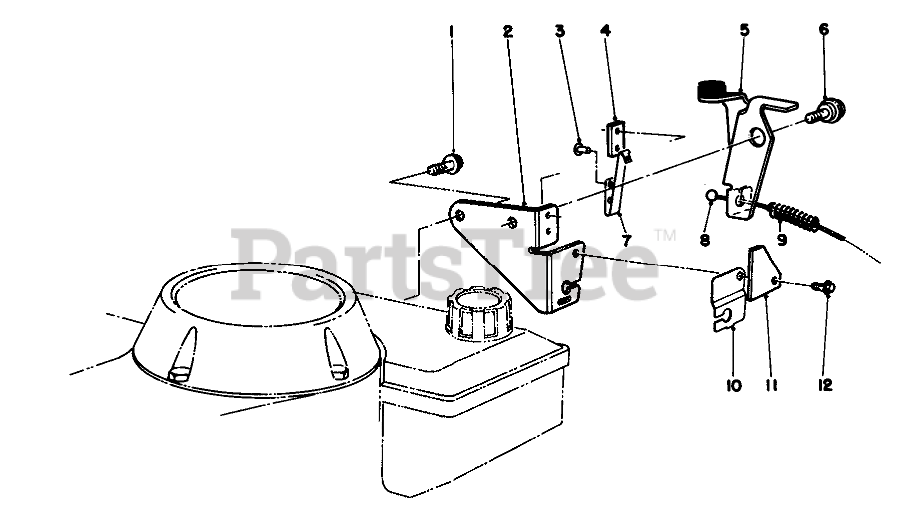

BRAKE ASSEMBLY Parts Diagram

  • Title

1

Toro 46-0790

THO FORM SCREW M6 X 1

$

$

Not available

2

Toro 53-4620

Plate-Mounting
(Superseded to 14-6009)

$

$

Not available

3

Toro 3290-459

RIVET-PLASTIC

$2.49

$

In Stock, only 1 left!

0

4

Toro 60-9020

Strap-Insulation
(Superseded to 77-5260)

$2.99

$

Usually ships in 3-6 days

0

5

Toro 53-4770

BRAKE PLATE ASM
(Superseded to 66-5380)

$78.99

$

Usually ships in 3-6 days

0

6

Toro 56-6190

Screw-Shoulder
(Superseded to 92-9698)

$5.49

$

Usually ships in 3-6 days

0

7

Toro 60-9010

STRAP-GROUND

$14.99

$

Usually ships in 3-6 days

0

8

Toro 56-6093

BRAKE CABLE

$

$

Not available

9

Toro 56-6370

COMPRESSION SPRING

$7.49

$

Usually ships in 3-6 days

0

10

Toro 53-4610

CABLE CLAMP

$

$

Not available

11

Toro 53-4690

STOP-GROUND STRAP

$4.49

$

In Stock, only 2 left!

0

12

Toro 12-5450

SCREW

$9.99

$

In Stock, only 2 left!

0

Toro 12-4599

Mounting Plate Assembly (Incl. Ref. #2-4 & 7)
(Superseded to 14-6009)

Note: Not illustrated

$

$

Not available
