16585 - Toro Walk-Behind Mower (SN: 006000001 - 006999999) (1986) ENGINE ASSEMBLY (USED ON UNITS WITH SERIAL NO. 6000101-6002073) Parts Diagram

Walk-Behind Mower

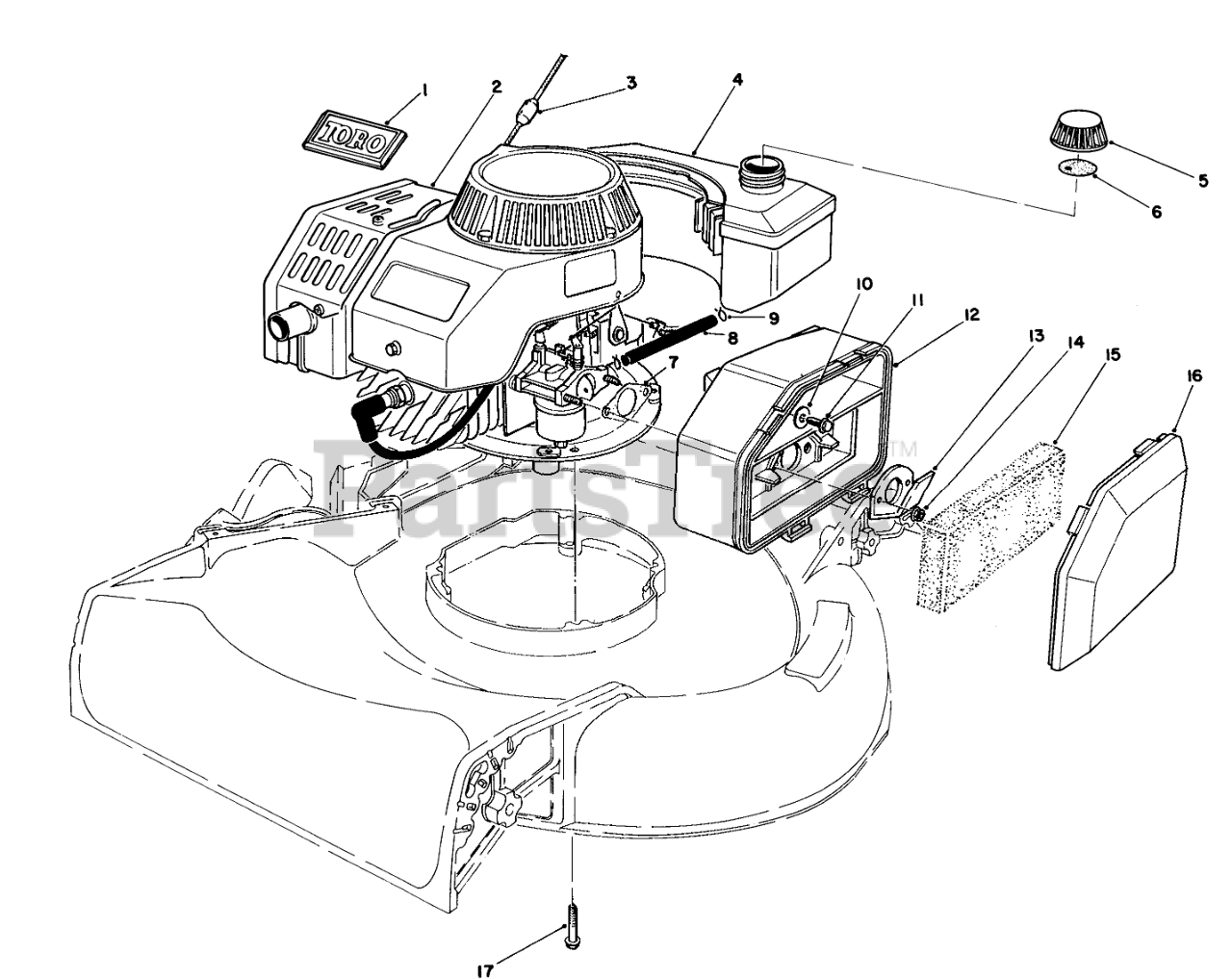

ENGINE ASSEMBLY (USED ON UNITS WITH SERIAL NO. 6000101-6002073) Parts Diagram

  • Title

1

Toro 46-8290

TORO LOGO PLT
(Superseded to 98-3206)

$2.49

$

Usually ships in 3-6 days

0

2

Toro 59257

Engine
(Superseded to 12-8099)

$

$

Not available

3

Toro 47-2480

STOP-ROPE

$

$

Not available

4

Toro 81-0160

Fuel Tank Assembly
(Superseded to 99-5263)

$

$

Not available

5

Toro 42-0681

Gas Cap Assy. (Incl. Ref. #6)

$43.99

$

Usually ships in 3-6 days

0

6

Toro 20-4620

GAS CAP GASKET

$10.99

$

In Stock, Qty 6

0

7

Toro 81-0090

GASKET-AIR CLEANER

$7.99

$

In Stock, only 3 left!

0

8

Toro 81-2310

FUEL LINE

$3.49

$

Usually ships in 3-6 days

0

9

Toro 2412-80

CLAMP-HOSE

$5.49

$

In Stock, only 1 left!

0

10

Toro 3256-16

WASHER-FLAT

$0.99

$

In Stock, Qty 18

0

11

Toro 51-2690

SCREW-HH

$2.49

$

In Stock, only 4 left!

0

12

Toro 81-0110

AIR CLEANER

$

$

Not available

13

Toro 81-0140

SPIT BACK DEFLECTOR

$

$

Not available

14

Toro 49-7810

NUT-LOCK
(Superseded to 33023-00)

$0.99

$

Usually ships in 3-6 days

0

15

Toro 81-0100

FILTER

$9.49

$

In Stock, only 1 left!

0

16

Toro 81-0120

AIR CLEANER COVER

$

$

Not available

17

Toro 3234-20

FLG SCREW,3/8-16X2.000
(Superseded to 66-9302)

$4.99

$

Usually ships in 3-6 days

0
