16585 - Toro Walk-Behind Mower (SN: 005000001 - 005999999) (1985) HANDLE ASSEMBLY Parts Diagram

Walk-Behind Mower

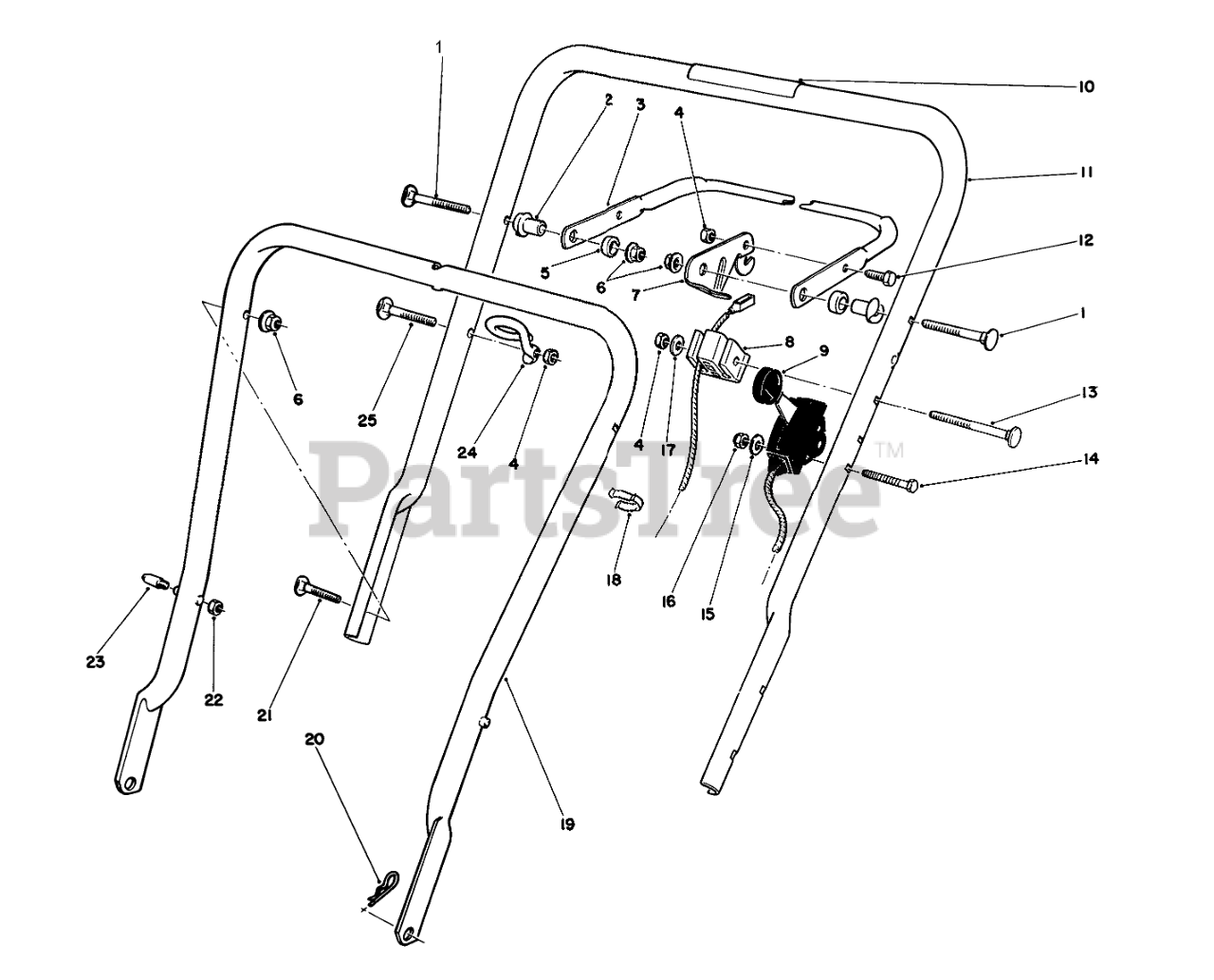

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 17-9421

5/16-18 X 2 HNDLE SCREW
(Superseded to 92-2260)

$3.99

$

In Stock, Qty 11

0

2

Toro 49-1630

SPACER-SUPPORT

$8.99

$

Usually ships in 3-6 days

0

3

Toro 49-4220

CONTROL BAR PROMO

$

$

Not available

4

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

5

Toro 256-276

SPACER-NYLON

$2.99

$

Usually ships in 3-6 days

0

6

Toro 3296-58

NUT-LOCK, NI

$2.99

$

In Stock, only 1 left!

0

7

Toro 46-7950

Lever-Control
(Superseded to 66-5350)

$13.99

$

Usually ships in 3-6 days

0

8

Toro 46-6980

SUPPORT-CABLE

$15.99

$

Usually ships in 3-6 days

0

9

Toro 49-4194

Control-Throttle (Bend Type #1)(Sheath Lg. 35-1/4-)(Wire Log. 2-3/8")
(Superseded to 49-4193)

$67.99

$

Usually ships in 3-6 days

0

10

Toro 52-7510

Decal-Danger

$

$

Not available

11

Toro 49-4231

UPPER HANDLE

$

$

Not available

12

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

13

Toro 46-6434

HANDLE SCREW

$4.49

$

Usually ships in 3-6 days

0

14

Toro 3290-424

SCREW-SHH

$2.99

$

Usually ships in 3-6 days

0

15

Toro 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

16

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

17

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

18

Toro 218-465

BOWDEN CLIP

$

$

Not available

19

Toro 49-1690

LOWER HANDLE ASM

$152.99

$

Usually ships in 3-6 days

0

20

Toro 3290-255

PIN-COTTER, HAIR

$8.99

$

In Stock, only 1 left!

0

21

Toro 17-9424

SCREW
(Superseded to 6-6330)

$

$

Not available

22

Toro 3296-47

NUT-LOCK, NI

Note: Service Replacement Part.

$3.99

$

In Stock, Qty 7

0

23

Toro 49-2750

HANDLE PIN

Note: Service Replacement Part.

$32.99

$

Usually ships in 3-6 days

0

24

Toro 46-8080

Guide
(Superseded to 86-9671)

$4.49

$

In Stock, Qty 5

0

25

Toro 46-6433

HANDLE SCREW

$11.99

$

Usually ships in 3-6 days

0
