16580 - Toro Walk-Behind Mower (SN: 004000001 - 004999999) (1984) HANDLE ASSEMBLY Parts Diagram

Walk-Behind Mower

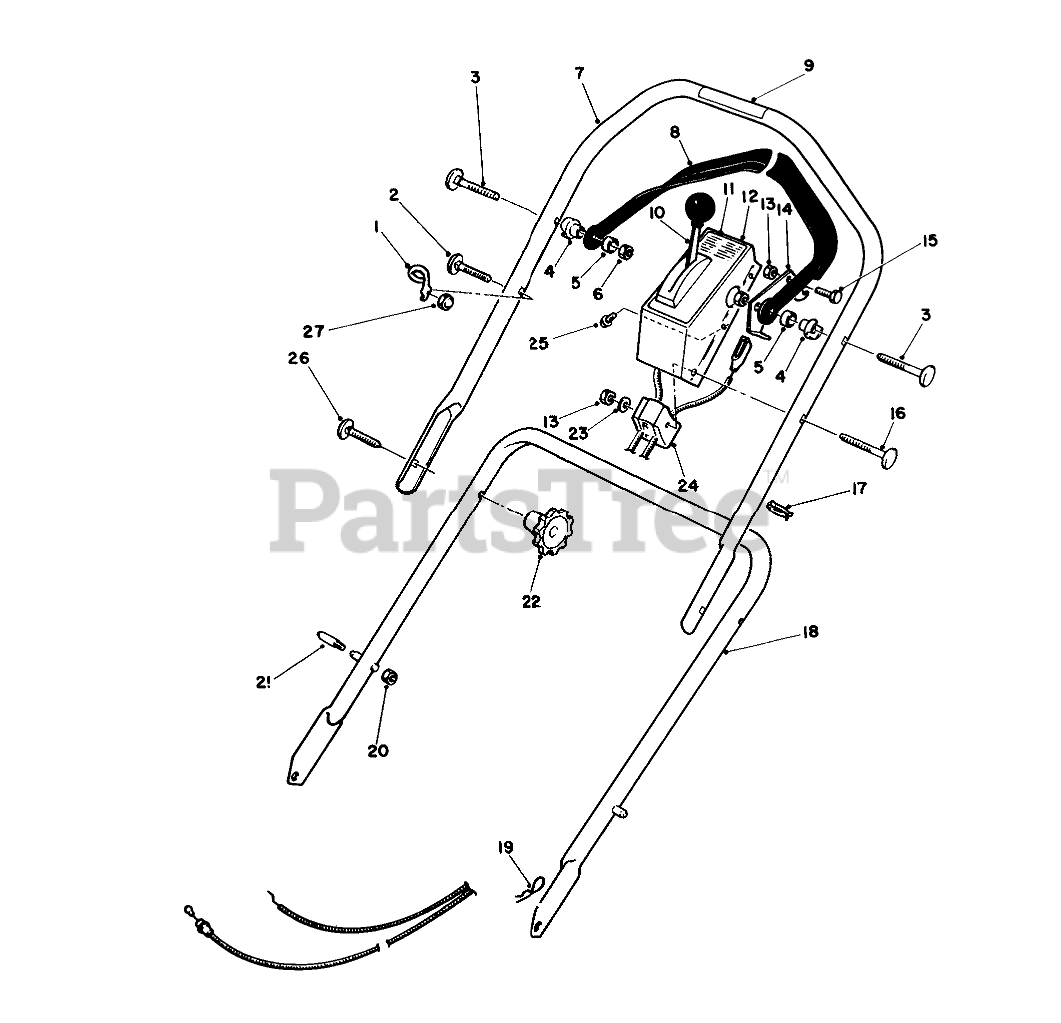

HANDLE ASSEMBLY Parts Diagram

  • Title
1

Toro 46-8080

Guide
(Superseded to 86-9671)

$4.49

$

In Stock, Qty 20+

0

2

Toro 46-6433

HANDLE SCREW

$14.99

$

Usually ships in 3-6 days

0

3

Toro 17-9421

5/16-18 X 2 HNDLE SCREW
(Superseded to 92-2260)

$3.99

$

In Stock, Qty 20+

0

4

Toro 49-1630

SPACER-SUPPORT

$8.99

$

Usually ships in 3-6 days

0

5

Toro 256-276

SPACER-NYLON

$2.99

$

Usually ships in 3-6 days

0

6

Toro 3296-58

NUT-LOCK, NI

$2.99

$

In Stock, Qty 11

0

7

Toro 11-6739

Handle-Upper (Incl. Ref. #9)
(Superseded to 11-5589)

$

$

Not available

8

Toro 46-5560

Bar-Control
(Superseded to 52-7430-03)

$

$

Not available

9

Toro 49-1770

DANGER DECAL

$

$

Not available

10

Toro 49-4193

THROTTLE CONT-SERVICE

$81.99

$

Usually ships in 3-6 days

0

11

Toro 49-7790

Decal-Control Cover

$

$

Not available

12

Toro 11-6749

Cover-Control (Incl. Ref. #11)

$

$

Not available

13

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

14

Toro 46-7950

Lever-Control
(Superseded to 66-5350)

$15.99

$

Usually ships in 3-6 days

0

15

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

16

Toro 46-6432

SCREW-HANDLE

$14.99

$

Usually ships in 3-6 days

0

17

Toro 218-465

BOWDEN CLIP

$

$

Not available

18

Toro 49-1690

LOWER HANDLE ASM

$173.99

$

Usually ships in 3-6 days

0

19

Toro 3290-255

PIN-COTTER, HAIR

$8.99

$

In Stock, only 1 left!

0

20

Toro 3296-47

NUT-LOCK, NI

Note: Service Replacement Part

$3.99

$

In Stock, Qty 20+

0

21

Toro 49-2750

HANDLE PIN

Note: Service Replacement Part

$36.99

$

Usually ships in 3-6 days

0

22

$17.99

$

In Stock, only 2 left!

0

23

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

24

Toro 46-6980

SUPPORT-CABLE

$15.99

$

In Stock, only 1 left!

0

25

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

26

Toro 17-9421

5/16-18 X 2 HNDLE SCREW
(Superseded to 92-2260)

$3.99

$

In Stock, Qty 20+

0

27

Toro 32111-7

NUT-CAP

$7.99

$

In Stock, only 2 left!

0
