16580 - Toro Walk-Behind Mower (SN: 003000001 - 003999999) (1983) HOUSING ASSEMBLY Parts Diagram

Walk-Behind Mower

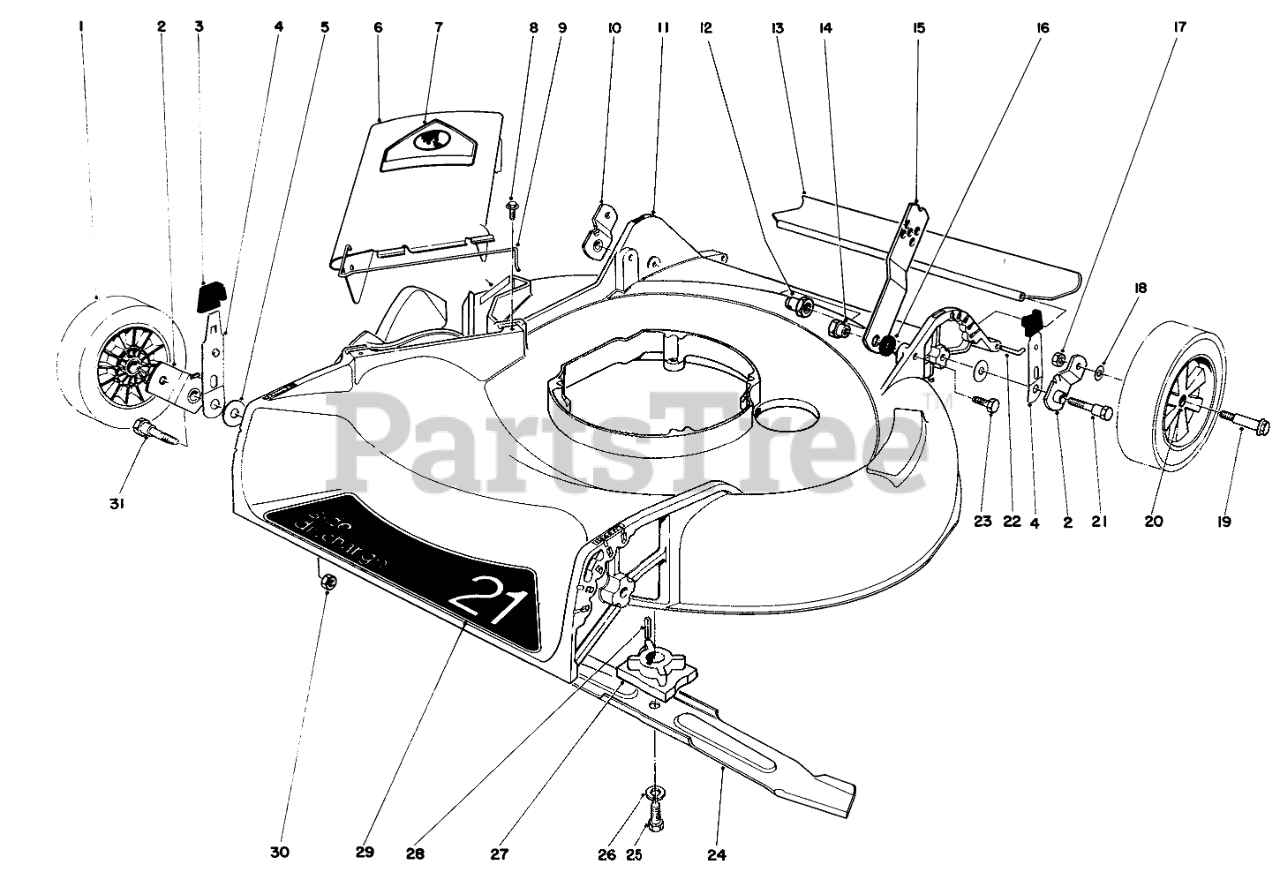

HOUSING ASSEMBLY Parts Diagram

  • Title
1

Toro 44-0560

Wheel & Tire Assembly (Incl. Ref. #19)
(Superseded to 11-6349)

$

$

Not available

2

Toro 20-2140

Pivot Arm
(Superseded to 98-1511)

$

$

Not available

3

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 20+

0

4

Toro 25-8000

SPRING ARM ASM

$

$

Not available

5

Toro 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 20+

0

6

Toro 27-7817

Deflector Assembly (Incl. Ref. #7&9)
(Superseded to 13-4049)

$

$

Not available

7

Toro 39-5770

DECAL-DANGER

$8.99

$

In Stock, Qty 8

0

8

Toro 46-6811

SCREW-HWH

$3.49

$

In Stock, only 3 left!

0

9

Toro 20-2640

SPRING HINGE

$

$

Not available

10

Toro 20-2130

Pivot Arm
(Superseded to 98-1527)

$

$

Not available

11

Toro 11-4589

HOUSING/DECAL

$

$

Not available

12

Toro 12-2080

HANDLE PIVOT NUT

$25.99

$

Usually ships in 3-6 days

0

13

Toro 22-4950

REAR SAFETY SHIELD 21

$

$

Not available

14

Toro 27-6520

HANDLE PIVOT NUT

$9.99

$

Usually ships in 3-6 days

0

15

Toro 27-7070

Handle Latch
(Superseded to 100-3296-03)

$

$

Not available

16

Toro 3-3287

SPACER

$5.49

$

In Stock, Qty 16

0

17

Toro 32146-6

Nut
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

18

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 20+

0

19

Toro 27-6230

BOLT-WHEEL

$8.49

$

In Stock, only 1 left!

0

20

Toro 27-6250

BUSHING

$2.99

$

In Stock, only 4 left!

0

21

Toro 3-0655

5/16-18 PIVOT SCREW

$15.99

$

In Stock, only 1 left!

0

22

Toro 33-3201

SHIELD ROD

$

$

Not available

23

Toro 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

24

Toro 20-2720

Blade
(Superseded to 20-2720-03)

$41.99

$

In Stock, only 2 left!

0

25

Toro 26-0671

SCREW-HH

$9.49

$

In Stock, Qty 20+

0

26

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

27

Toro 46-7800

Retainer Blade
(Superseded to 49-7900)

$73.99

$

In Stock, only 2 left!

0

28

Toro 27-8590

KEY-SQUARE

$6.49

$

Usually ships in 3-6 days

0

29

Toro 44-0430

Decal-Side Discharge

$

$

Not available

30

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

31

Toro 25-3440

PIVOT SCREW

$

$

Not available

Toro 11-3429

Loose Parts

Note: Not illustrated

$

$

Currently unavailable
