16580 - Toro Walk-Behind Mower (SN: 003000001 - 003999999) (1983) GOVERNOR ASSEMBLY Parts Diagram

Walk-Behind Mower

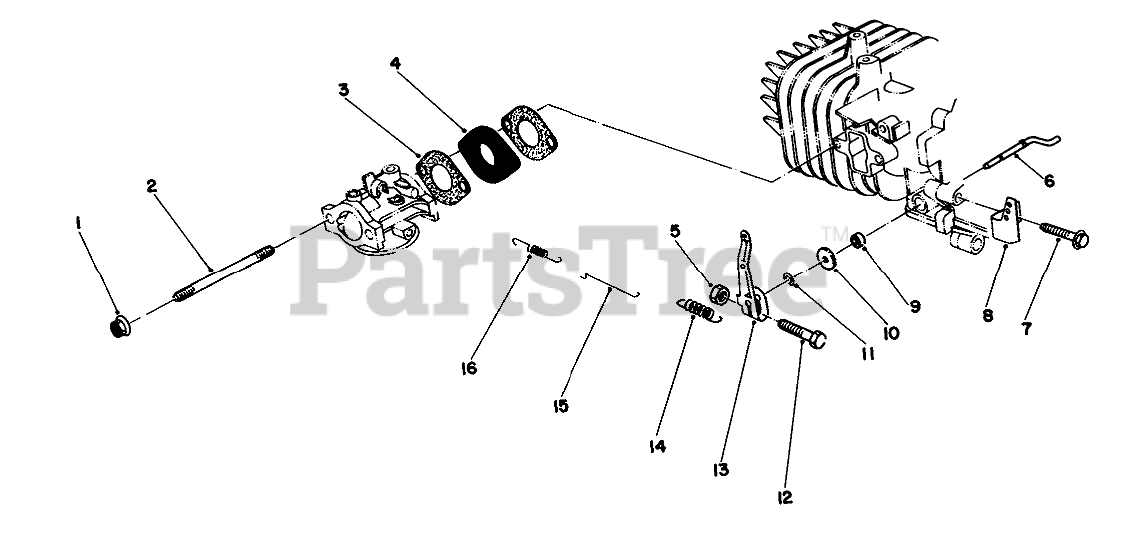

GOVERNOR ASSEMBLY Parts Diagram

  • Title
1

Toro 46-0400

M6 X 1 LOCKNUT

$

$

Not available

2

Toro 81-0800

Stud-Bolt-Carburetor
(Superseded to 81-2240)

$

$

Not available

3

Toro 81-0780

GASKET-CARB

$6.99

$

In Stock, only 2 left!

0

4

Toro 81-0790

CARB. INSULATOR

$

$

Not available

5

$

$

Not available

6

Toro 81-0840

Shaft-Govemor

$

$

Not available

7

$

$

Not available

8

Toro 81-0930

Bracket-Governor Spring

$

$

Not available

9

Toro 81-0850

SEAL-OIL

$18.99

$

Usually ships in 3-6 days

0

10

Toro 81-0860

WASHER

$

$

Not available

11

Toro 81-0870

E-RING

$

$

Not available

12

$

$

Not available

13

Toro 81-0880

Lever-Throttle Control

$

$

Not available

14

Toro 81-0920

SPRING

$11.99

$

Usually ships in 3-6 days

0

15

Toro 81-0910

ROD-CARBURETOR

$

$

Not available

16

Toro 81-0940

Spring-Governor
(Superseded to 81-1970)

$

$

Not available
