16580 - Toro Walk-Behind Mower (SN: 003000001 - 003999999) (1983) ENGINE ASSEMBLY Parts Diagram

Walk-Behind Mower

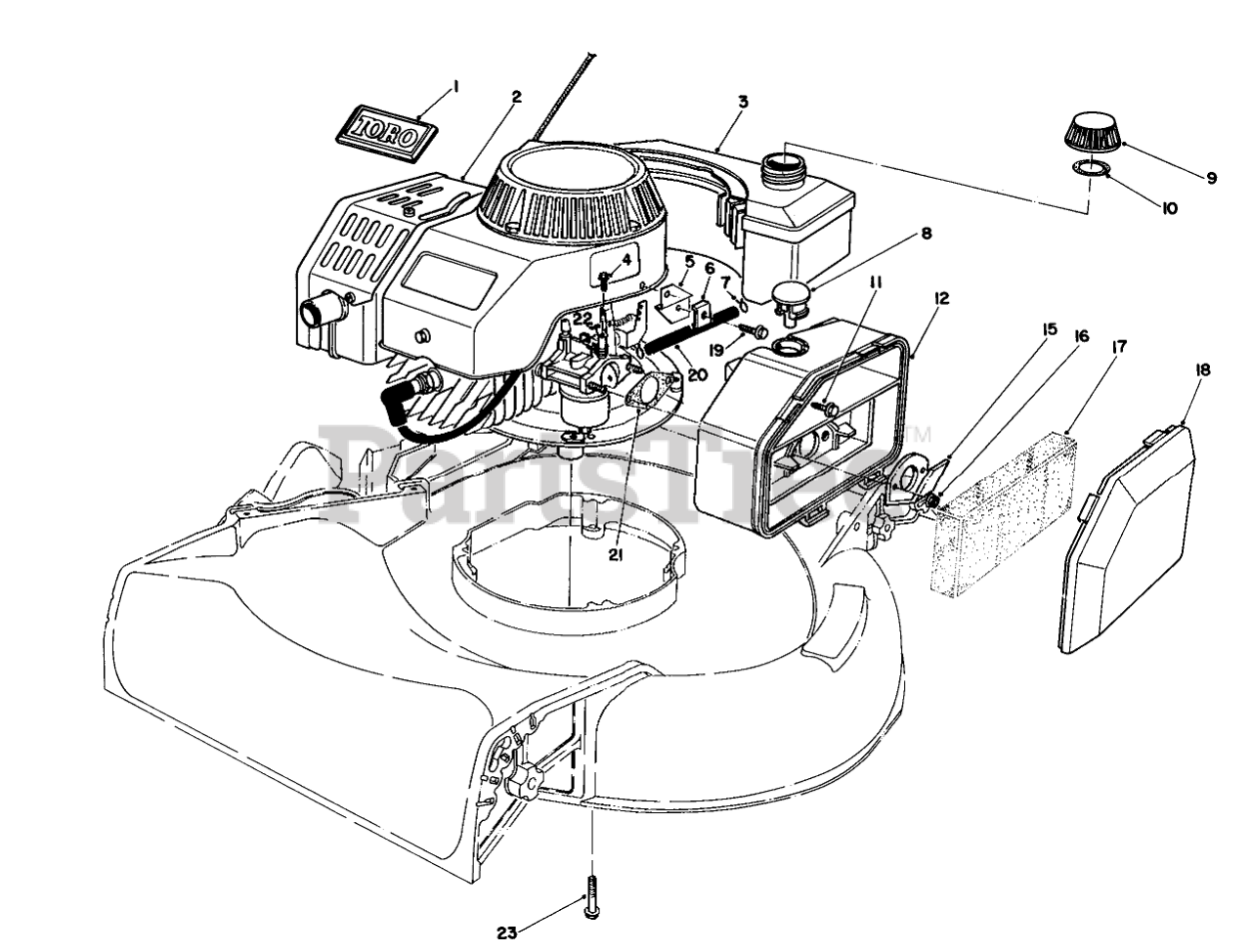

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 46-8290

TORO LOGO PLT
(Superseded to 98-3206)

$2.49

$

Usually ships in 3-6 days

0

2

Toro 11-5169

Engine (Incl. Ref. #1)

$

$

Not available

3

Toro 81-0160

Fuel Tank Assembly
(Superseded to 99-5263)

$

$

Not available

4

Toro 32144-60

TAPPING SCREW

$

$

Not available

5

Toro 46-7860

Carrier-Cable

$

$

Not available

6

Toro 29-9550

CLAMP-CABLE

$

$

Not available

7

Toro 2412-80

CLAMP-HOSE

$5.49

$

In Stock, only 1 left!

0

8

Toro 81-0080

Plug-Button

$

$

Not available

9

Toro 42-0681

Gas Cap Assembly (Incl. Ref. #10)

$43.99

$

Usually ships in 3-6 days

0

10

Toro 20-4620

GAS CAP GASKET

$10.99

$

In Stock, Qty 6

0

11

Toro 46-0071

Screw-Hex Head

$

$

Not available

12

Toro 81-0110

AIR CLEANER

$

$

Not available

15

Toro 81-0140

SPIT BACK DEFLECTOR

$

$

Not available

16

Toro 46-0400

M6 X 1 LOCKNUT

$

$

Not available

17

Toro 81-0100

FILTER

$9.49

$

In Stock, only 1 left!

0

18

Toro 81-0120

AIR CLEANER COVER

$

$

Not available

19

Toro 11-9760

Screw
(Superseded to 49-2040)

$2.49

$

In Stock, Qty 20+

0

20

Toro 81-0150

FUEL LINE

$

$

Not available

21

Toro 81-0090

GASKET-AIR CLEANER

$7.99

$

In Stock, only 3 left!

0

22

Toro 81-0190

CHOKE LEVER

$

$

Not available

23

Toro 3234-20

FLG SCREW,3/8-16X2.000
(Superseded to 66-9302)

$4.99

$

Usually ships in 3-6 days

0
