16551 - Toro Walk-Behind Mower (SN: 009000001 - 009999999) (1989) ENGINE ASSEMBLY Parts Diagram

Walk-Behind Mower

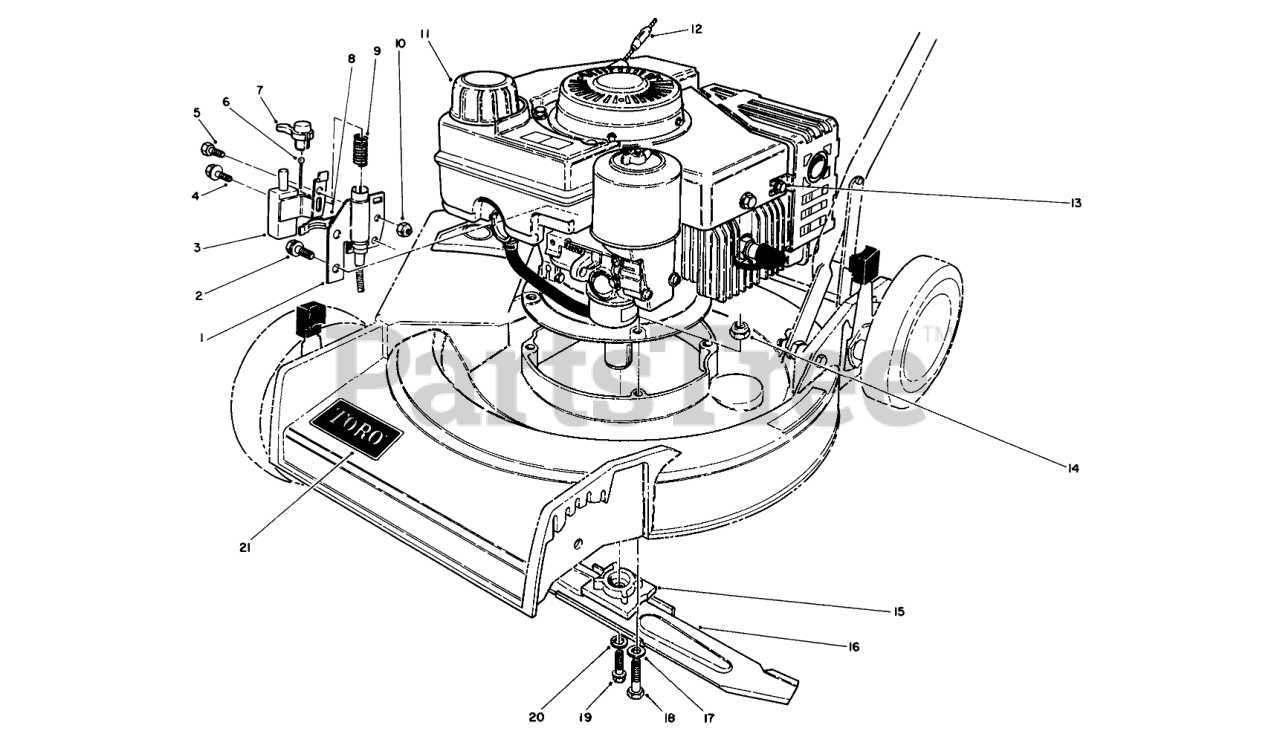

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 70-7740

TUBE WA

$

$

Not available

2

Toro 12-3270

SCREW

$3.49

$

In Stock, Qty 20+

0

3

Toro 47-6520

PUSH BUTTON SWITCH

$

$

Not available

4

Toro 12-5450

SCREW

$9.99

$

In Stock, only 2 left!

0

5

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

6

Cable Brake (Ref.)

$

$

Not available

7

Toro 47-7350

BRAKE PAD/PLUNGER ASM

$

$

Not available

8

Toro 46-6530

CABLE CLAMP

$

$

Not available

9

Toro 46-9130

COMP SPRING

$25.99

$

Usually ships in 3-6 days

0

10

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

11

Engine (2 cycle)

$

$

Not available

12

Recoil Stop (Ref.)

$

$

Not available

13

Toro 2210-250

SCREW-HH

$

$

Not available

14

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

15

Toro 49-7900

BLADE RETAINER

$73.99

$

In Stock, only 2 left!

0

16

Toro 20-2720

Blade
(Superseded to 20-2720-03)

$41.99

$

In Stock, only 2 left!

0

17

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

18

Toro 323-12

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

19

Toro 26-0671

SCREW-HH

$9.49

$

In Stock, Qty 20+

0

20

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

21

Toro 70-2200

DECAL

$6.49

$

Usually ships in 3-6 days

0
