16551 - Toro Walk-Behind Mower (SN: 009000001 - 009999999) (1989) CARBURETOR NO. 632434 Parts Diagram

Walk-Behind Mower

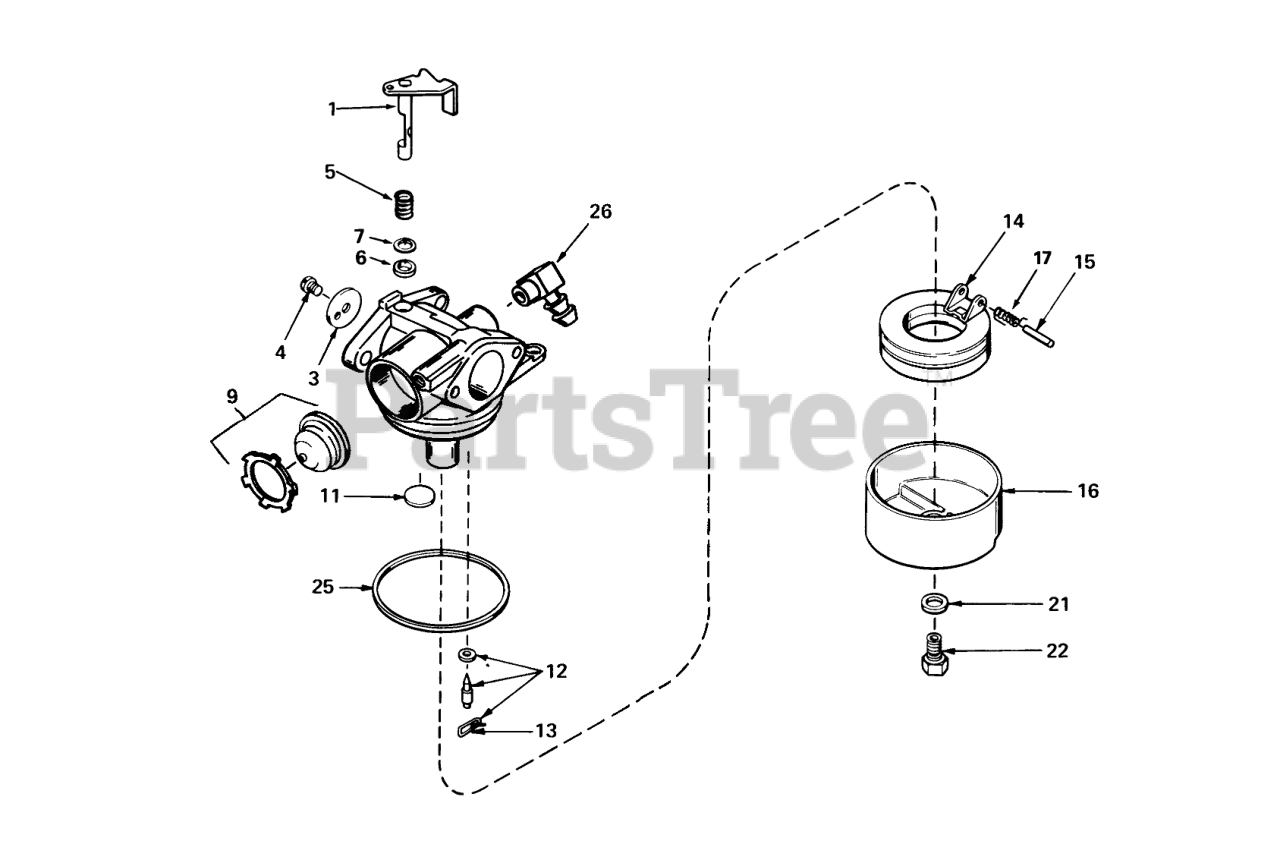

CARBURETOR NO. 632434 Parts Diagram

  • Title

1

Tecumseh 632432

Throttle Shaft & Lever Assy.
(Superseded to 632749)

$5.99

$

Usually ships in 3-12 days

0

3

Tecumseh 631757

Shutter-Throttle

$2.99

$

Usually ships in 3-12 days

0

4

Tecumseh 650506

Screw-Shutter

$1.49

$

In Stock, Qty 14

0

5

Tecumseh 632169

Spring-Trottle, Return

$1.99

$

Usually ships in 3-12 days

0

6

Tecumseh 631183

Seal-Dust

$1.99

$

In Stock, Qty 7

0

7

Tecumseh 631184

Washer-Seal, Dust

$1.99

$

In Stock, Qty 16

0

9

Tecumseh 632433

Bulb-Primer
(Superseded to 632433A)

$11.99

$

In Stock, only 1 left!

0

11

Tecumseh 631027

Plug-Welch, Atmospheric Vent

$1.99

$

In Stock, only 4 left!

0

12

Tecumseh 631021

Inlet Needle, Seat & Clip Assy. (Incl. Ref. #13)
(Superseded to 631021B)

$6.99

$

In Stock, Qty 20+

0

13

Tecumseh 631022

Clip-Spring

$1.99

$

In Stock, only 4 left!

0

14

Tecumseh 632019

Float
(Superseded to 632019A)

$7.49

$

In Stock, Qty 7

0

15

Tecumseh 631024

Shaft-Float

$1.99

$

In Stock, Qty 10

0

16

Tecumseh 631867

Bowl-Float (no drain)

$3.49

$

In Stock, Qty 11

0

17

Tecumseh 632386

Spring-Float, Dampening

$1.49

$

Usually ships in 3-12 days

0

21

Tecumseh 27110

Washer-Bowl Nut
(Superseded to 27110A)

$2.49

$

In Stock, only 3 left!

0

22

Tecumseh 632435

Nut-Float Bowl

$7.49

$

Usually ships in 3-12 days

0

25

Tecumseh 631028

O Ring-Bowl, Float
(Superseded to 631028A)

$2.49

$

In Stock, Qty 18

0

26

Tecumseh 631807

Fitting-Fuel

$8.49

$

In Stock, only 1 left!

0
