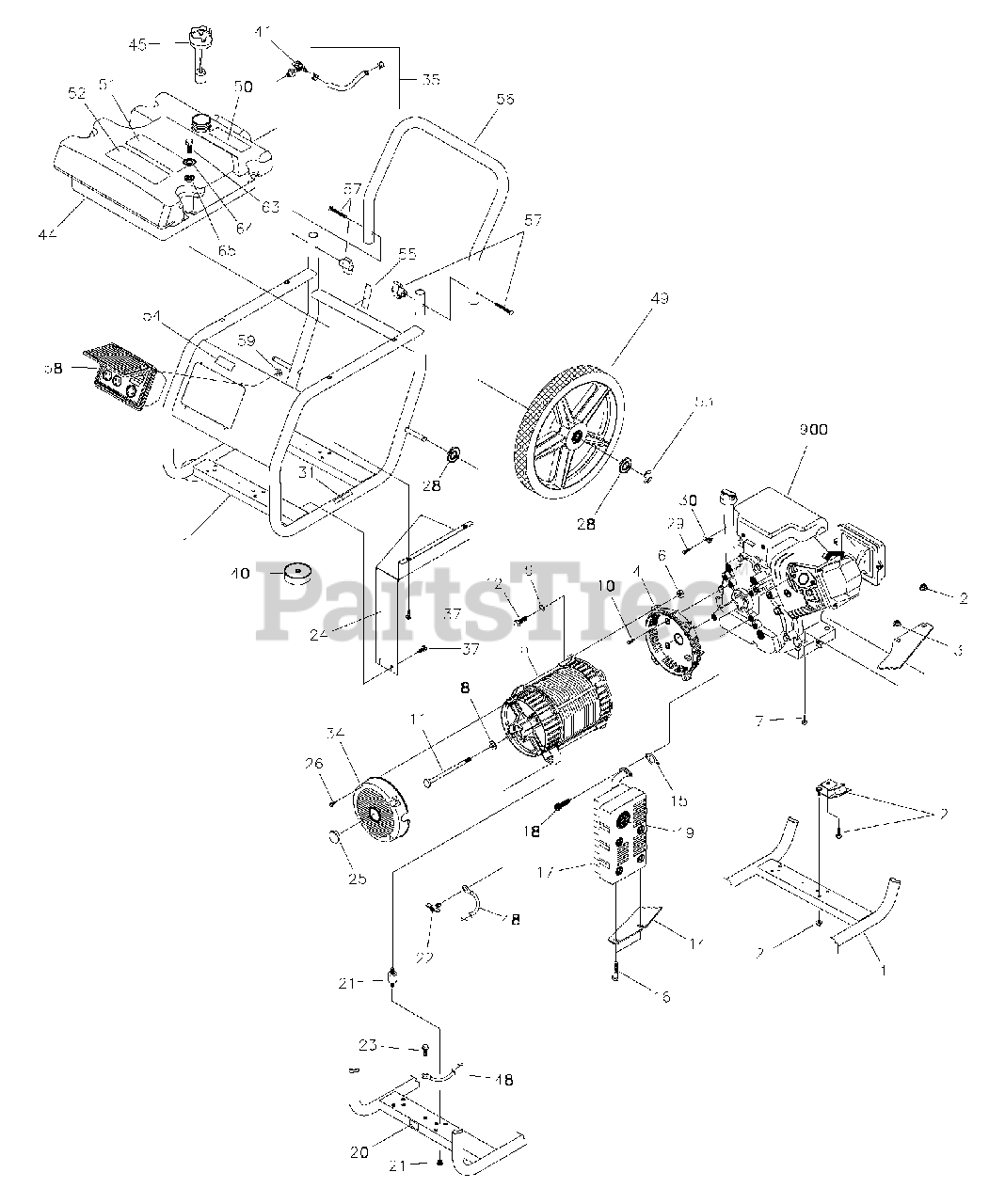

1655-3 - Generac 5,550 Watt Portable Generator Main Unit Parts Diagram

5,550 Watt Portable Generator

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton 201352GS

ASSY, Frame

Note: (Includes Items 20, 31, 40, 54 & 55)

$372.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 194150GS

KIT, Mount, Vibration 45°

$13.99

$

In Stock, only 3 left!

0

3

-----

NUT, M8, Flange Serrated

Note: (Purchase locally)

$

$

Not available

4

Briggs & Stratton 190220GS

HOUSING, Engine Adapter

$43.99

$

Usually ships in 2-12 days

0

5

NSP

ASSY, Alternator

Note: (see "Alternator")

$

$

Not available

6

-----

NUT, Hex, M8 - 1.25

Note: (Purchase locally)

$

$

Not available

7

-----

TPHMS, M8 - 1.25 x 35

Note: (Purchase locally)

$

$

Not available

8

Briggs & Stratton 96796GS

WASHER, M8 Flat

$3.49

$

Usually ships in 2-12 days

0

9

-----

WASHER, 5/16-M8, Lock

Note: (Purchase locally)

$

$

Not available

10

Briggs & Stratton 190274BGS

SHCS, 3/8-16 x 1.00 Lg.

$3.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 187365FGS

HHCS, 5/16-24 x 7.44

$17.99

$

Usually ships in 2-12 days

0

12

-----

HHCS, M8 - 1.25 x 25

Note: (Purchase locally)

$

$

Not available

14

Briggs & Stratton 189009GS

BRACKET, Muffler

$23.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 695398

GASKET, Exhaust

$7.99

$

In Stock, Qty 8

0

16

-----

HHCS, M6 - 1.0 x 12

Note: (Purchase locally)

$

$

Not available

17

Briggs & Stratton 189008GS

MUFFLER

$

$

Not available

18

Briggs & Stratton 60706GS

SCREW, 5/16 - 18 x 3/4"

$2.49

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 83083GS

SCREEN, Spark Arrest

$9.49

$

In Stock, only 2 left!

0

20

Briggs & Stratton B4986GS

DECAL, Ground, Green

$2.99

$

In Stock, only 1 left!

0

21

Briggs & Stratton 194153GS

KIT, Mount, Vibration, Alt.

$11.99

$

In Stock, Qty 7

0

22

Briggs & Stratton 86494GS

SCREW, Wing M6 - 1.0 x 16

$2.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton B2153GS

SCREW, Self Drill, 12-14 X 7/8

$4.49

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 192793GS

SHIELD, Heat

$94.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 191190GS

CAP

$3.99

$

In Stock, only 1 left!

0

26

Briggs & Stratton 74908GS

SCREW, M5-0.8 x 10 Taptite

$2.99

$

Usually ships in 2-12 days

0

28

-----

WASHER, M12 Flat

Note: (Purchase locally)

$

$

Not available

29

Briggs & Stratton 94929GS

SCREW, Hex Washer

$6.49

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 226846

BRACKET, Oil Fill Tube

$

$

Currently unavailable

31

Briggs & Stratton 200310GS

DECAL, Warning Exhaust

$15.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 195422GS

COVER, RBC, Plastic w/Cap

$13.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 791745

KIT, Fuel Hose (cut to fit)

$10.99

$

In Stock, Qty 20+

0

37

Briggs & Stratton 192376GS

SCREW, 12 -24 x 1/2 THD Forming

$3.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 192310GS

KIT, Vibe Mount with Hardware

$9.99

$

In Stock, Qty 11

0

41

Briggs & Stratton 192980GS

KIT, Valve, Tank

$17.99

$

In Stock, Qty 20+

0

44

Briggs & Stratton 196814GS

ASSY, Tank, Fuel,

Note: (Includes Items 41. 50, 51 & 52)

$

$

Not available

45

Briggs & Stratton 189420GS

CAP, Fuel Gauge

$47.99

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 195373GS

WIRE, Ground

$2.49

$

Usually ships in 2-12 days

0

49

Briggs & Stratton 191908GS

WHEEL
(Superseded to 193548GS)

$

$

Not available

50

Briggs & Stratton 188333GS

DECAL, Fuel Tank

$23.99

$

In Stock, only 1 left!

0

51

Briggs & Stratton 194984GS

DECAL, Warning, French

$17.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 94480GS

DECAL, Start Instructions, French

$17.99

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 192050GS

E-RING, 1/2"
(Superseded to 703976)

$4.49

$

In Stock, Qty 10

0

54

Briggs & Stratton 200311GS

DECAL, Neutral Bonded

$8.99

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 197798GS

DECAL, Shut-Off, Fuel

$9.49

$

Usually ships in 2-12 days

0

56

Briggs & Stratton J194907GS

HANDLE

$107.99

$

Usually ships in 2-12 days

0

57

Briggs & Stratton B2203GS

KIT, Handle Fastening

$5.49

$

In Stock, only 1 left!

0

58

Briggs & Stratton 196356GS

ASSY, Control Panel

Note: (see "Control Panel")

$148.99

$

Usually ships in 2-12 days

0

59

-----

NUT, Palnut 3/16"

Note: (Purchase locally)

$

$

Not available

63

Briggs & Stratton 94974GS

SCREW
(Superseded to 691127)

$4.49

$

In Stock, Qty 13

0

64

Briggs & Stratton 197820GS

WASHER, Master Seal

$3.49

$

Usually ships in 2-12 days

0

65

Briggs & Stratton 197821GS

SPACER

$5.49

$

Usually ships in 2-12 days

0

900

-----

ENGINE

Note: Contact Engine Manufacturer

$

$

Not available

--

Briggs & Stratton MS3431

MANUAL, Engine

Note: Not Illustrated

$

$

Not available

--

Briggs & Stratton 200708GS

MANUAL, Operator's

Note: Not Illustrated

$14.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 197581GS

TRAY, Overflow

Note: Not Illustrated

$12.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton BB3061GS

BOTTLE, Oil

Note: Not Illustrated

$13.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 193988GS

KIT, Decals

Note: Not Illustrated

$59.99

$

Usually ships in 2-12 days

0
