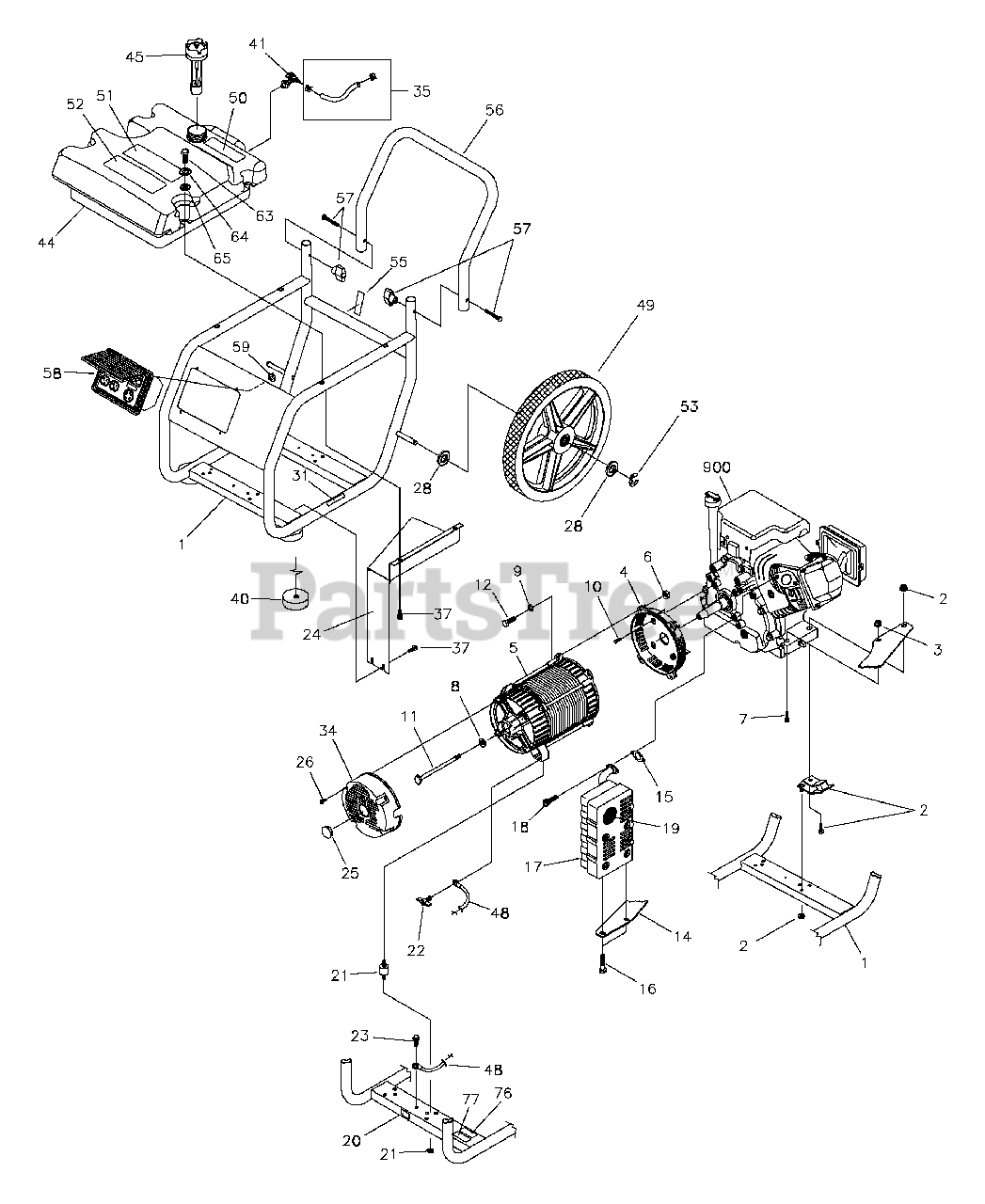

1655-2 - Generac Wheelhouse 5,500 Watt Portable Generator Main Unit Parts Diagram

Wheelhouse 5,500 Watt Portable Generator

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton 200119GS

ASSY, Frame

$372.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 194150GS

KIT, Mount,Vibration 45°

$13.99

$

Usually ships in 2-12 days

0

3

NUT, M8, Flange Serrated

Note: (Purchase locally)

$

$

Not available

4

Briggs & Stratton 190220GS

HOUSING, Engine Adapter

$43.99

$

Usually ships in 2-12 days

0

5

NSP

ASSY,Alternator

Note: (see "Alternator")

$

$

Not available

6

NUT, Hex, M8 - 1.25

Note: (Purchase locally)

$

$

Not available

7

TPHMS, M8 - 1.25 x 35

Note: (Purchase locally)

$

$

Not available

8

Briggs & Stratton 96796GS

WASHER, M8 Flat

$3.49

$

Usually ships in 2-12 days

0

9

WASHER, 5/16 - M8, Lock

Note: (Purchase locally)

$

$

Not available

10

Briggs & Stratton 190274BGS

SHCS, 3/8-16 x 1.00 Lg.

$3.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 187365FGS

HHCS, 5/16-24 x 7.44

$17.99

$

Usually ships in 2-12 days

0

12

HHCS, M8 - 1.25 x 25

Note: (Purchase locally)

$

$

Not available

14

Briggs & Stratton 189009GS

BRACKET, Muffler

$23.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 695398

GASKET, Exhaust

$7.99

$

In Stock, Qty 8

0

16

HHCS, M6 - 1.0 x 12

Note: (Purchase locally)

$

$

Not available

17

Briggs & Stratton 189008GS

MUFFLER

$

$

Not available

18

Briggs & Stratton 60706GS

SCREW, 5/16 - 18 x 3/4"

$2.49

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 83083GS

SCREEN, Spark Arrest

$9.49

$

In Stock, only 2 left!

0

20

Briggs & Stratton B4986GS

DECAL, Ground, Green

$2.99

$

In Stock, only 1 left!

0

21

Briggs & Stratton 194153GS

KIT, Mount,Vibration,Alt.

$11.99

$

In Stock, Qty 5

0

22

Briggs & Stratton 86494GS

SCREW,Wing M6 - 1.0 x 16

$2.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 86292GS

SCREW, 10-16 x 3/4, Self Drill
(Superseded to 313085GS)

$4.99

$

In Stock, only 1 left!

0

24

Briggs & Stratton 192793GS

SHIELD, Heat

$94.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 191190GS

CAP

$3.99

$

In Stock, only 1 left!

0

26

Briggs & Stratton 66849AGS

SCREW, M5-0.8 x 20 Taptite

$4.49

$

Usually ships in 2-12 days

0

28

WASHER, M12 Flat

Note: (Purchase locally)

$

$

Not available

31

Briggs & Stratton 191436GS

DECAL, Hot Muffler

$8.49

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 197462GS

COVER, Bearing Carrier

$52.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 791745

KIT, Fuel Hose (cut to fit)

$10.99

$

In Stock, Qty 20+

0

37

Briggs & Stratton 192376GS

SCREW, 12 -24 x 1/2 THD Forming

$3.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 192553GS

KIT,Vibe Mount with Hardware

$16.99

$

In Stock, Qty 7

0

41

Briggs & Stratton 192980GS

KIT,Valve,Tank

$17.99

$

In Stock, Qty 20+

0

44

Briggs & Stratton 196814GS

ASSY,Tank, Fuel

Note: (Includes Items 41, 50, 51 & 52)

$

$

Not available

45

Briggs & Stratton 189420GS

CAP, Fuel Gauge

$47.99

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 195373GS

WIRE, Ground

$2.49

$

Usually ships in 2-12 days

0

49

Briggs & Stratton 191908GS

WHEEL
(Superseded to 193548GS)

$

$

Not available

50

Briggs & Stratton 188333GS

DECAL, Fuel Tank

$23.99

$

In Stock, only 1 left!

0

51

Briggs & Stratton 194984GS

DECAL, Danger, French

$17.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 94480GS

DECAL, Start Instructions, French

$17.99

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 192050GS

E-RING, 1/2"
(Superseded to 703976)

$4.49

$

In Stock, Qty 10

0

55

Briggs & Stratton 197798GS

DECAL, Shut-Off, Fuel

$9.49

$

Usually ships in 2-12 days

0

56

Briggs & Stratton M194907GS

HANDLE

$

$

Not available

57

Briggs & Stratton 189456GS

KIT, Handle Fastening

$24.99

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 196356GS

ASSY, Control Panel

Note: (see "Control Panel")

$148.99

$

Usually ships in 2-12 days

0

59

NUT, Palnut 3/16"

Note: (Purchase locally)

$

$

Not available

63

Briggs & Stratton 94974GS

SCREW
(Superseded to 691127)

$4.49

$

In Stock, Qty 13

0

64

Briggs & Stratton 197820GS

WASHER, Master Seal

$3.49

$

Usually ships in 2-12 days

0

65

Briggs & Stratton 197821GS

SPACER

$5.49

$

Usually ships in 2-12 days

0

76

Briggs & Stratton 195940GS

DECAL, Ground, French

$6.99

$

Usually ships in 2-12 days

0

77

Briggs & Stratton 195459GS

DECAL, Neutral Ground

$6.99

$

Usually ships in 2-12 days

0

900

ENGINE

Note: Contact Engine Manufacturer

$

$

Not available

Briggs & Stratton MS6737

MANUAL, Engine

Note: Not Illustrated

$

$

Not available

Briggs & Stratton 195222GS

MANUAL, Operator's

Note: Not Illustrated

$14.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 43438GS

PLUG, 250V, 30A

Note: Not Illustrated

$26.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 100031

STABILIZER, Fuel
(Superseded to 100126)

Note: Not Illustrated

$3.49

$

In Stock, Qty 20+

0

Briggs & Stratton 199384GS

DECAL, Family, CA EVP

Note: Not Illustrated

$7.99

$

Usually ships in 2-12 days

0

Briggs & Stratton BB3061GS

BOTTLE, Oil

Note: Not Illustrated

$13.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 193988GS

KIT, Decals

Note: Not Illustrated

$59.99

$

Usually ships in 2-12 days

0
