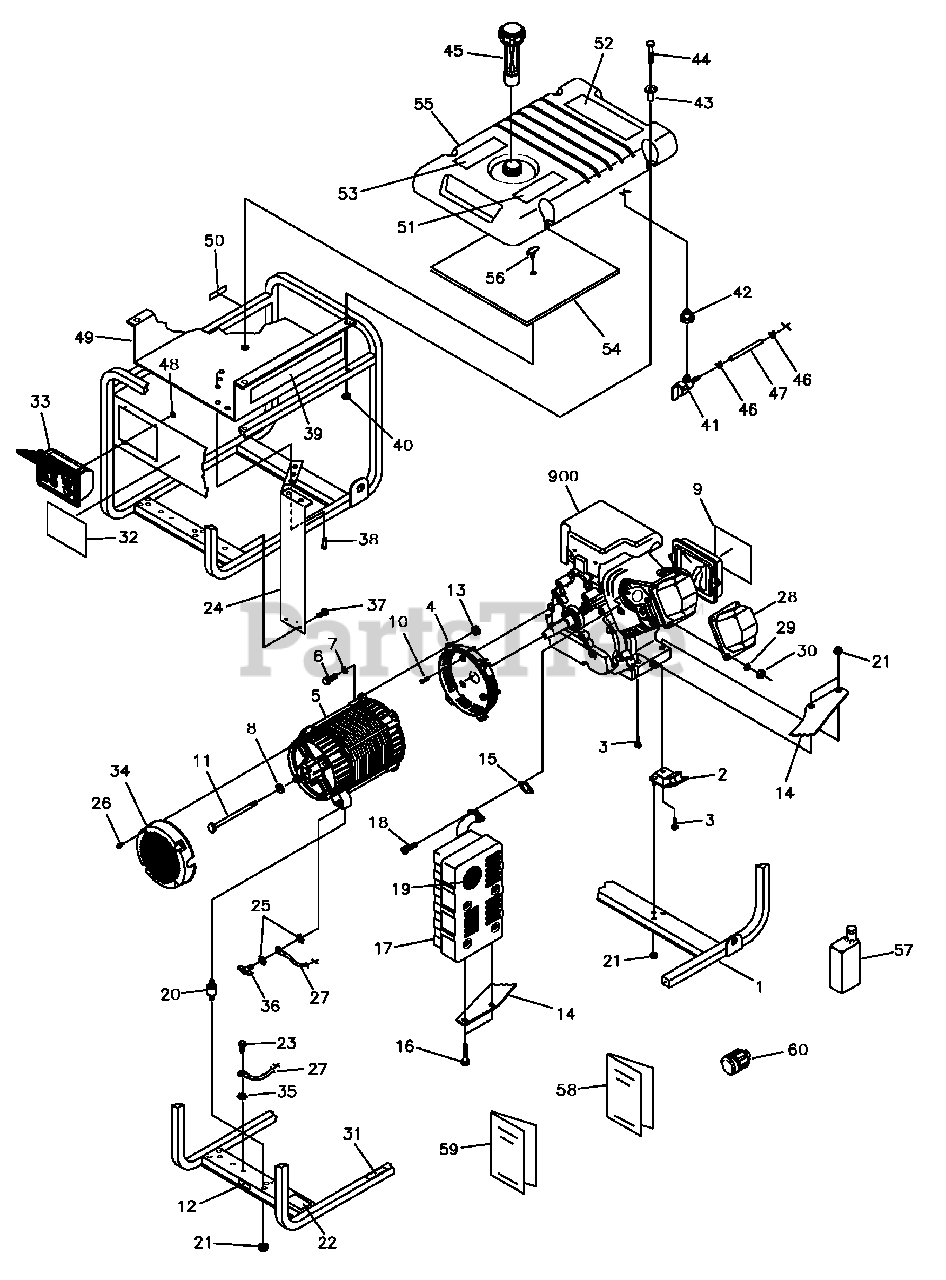

1654-1 - Generac 5,500 Watt Portable Generator Main Unit Parts Diagram

5,500 Watt Portable Generator

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton A189503GS

CRADLE
(Superseded to M189503GS)

$118.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 70642GS

MOUNT, Vibration

$31.99

$

In Stock, only 2 left!

0

3

Briggs & Stratton 76222GS

SCREW

$4.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 190220GS

HOUSING, Engine Adapter

$43.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 190442GS

ASSY, Alternator

Note: (see "Alternator")

$759.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 43107GS

SCREW

$3.49

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 22129GS

WASHER, Lock

$2.99

$

In Stock, only 2 left!

0

8

Briggs & Stratton 96796GS

WASHER

$3.49

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 189949GS

DECAL, Cover,Air Cleaner

$8.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 190274BGS

SCREW

$3.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 187365FGS

SCREW

$17.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton B4986GS

DECAL, Ground, Green

$2.99

$

In Stock, only 1 left!

0

13

Briggs & Stratton 45771GS

NUT

$6.49

$

In Stock, only 2 left!

0

14

Briggs & Stratton 189009GS

BRACKET, Muffler

$23.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 188551GS

GASKET, Exhaust
(Superseded to 695398)

$7.99

$

In Stock, Qty 8

0

16

Briggs & Stratton 66476GS

SCREW, w/Lock Washer

$3.49

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 189008GS

MUFFLER

$

$

Not available

18

Briggs & Stratton 60706GS

SCREW

$2.49

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 83083GS

SCREEN, Spark Arrest

$9.49

$

In Stock, only 2 left!

0

20

Briggs & Stratton 85652GS

MOUNT, Vibration
(Superseded to 194153GS)

$11.99

$

In Stock, Qty 5

0

21

Briggs & Stratton 67989GS

NUT, Flange Serrated

$3.49

$

In Stock, Qty 5

0

22

Briggs & Stratton 20566GS

DECAL, 1-800 #

$1.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 86292GS

SCREW
(Superseded to 313085GS)

$4.99

$

In Stock, only 1 left!

0

24

Briggs & Stratton J190061GS

SHIELD, Heat

$

$

Not available

25

Briggs & Stratton 26850GS

WASHER

$2.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 74908GS

SCREW

$2.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 14353621GS

WIRE, Ground
(Superseded to 195373GS)

$2.49

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 187330GS

HOOD, Rocker Arm Cover

$12.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 22097GS

WASHER, Lock

$3.49

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 22127GS

NUT

$1.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 77816GS

DECAL, Hot Muffler

$4.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 189949GS

DECAL, Panel, Control

$8.49

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 190355GS

ASSY, Control Panel

Note: (see "Control Panel")

$

$

Not available

34

Briggs & Stratton 186347GS

COVER, Bearing Carrier
(Superseded to 195422GS)

$13.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 23762GS

WASHER

$2.99

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 86494GS

SCREW,Wing

$2.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton B2153GS

SCREW

$4.49

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 56893GS

SCREW

$3.49

$

In Stock, only 1 left!

0

39

Briggs & Stratton 189948GS

DECAL, Heat Shield

$9.49

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 77395GS

NUT, Lock

$3.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 80270GS

VALVE,Tank
(Superseded to 192980GS)

$17.99

$

In Stock, Qty 20+

0

42

Briggs & Stratton 78299GS

BUSHING, Plastic Tank
(Superseded to 192980GS)

$17.99

$

In Stock, Qty 20+

0

43

Briggs & Stratton 83465GS

GROMMET, Tank

$3.99

$

In Stock, only 4 left!

0

44

Briggs & Stratton 78831BGS

SCREW

$

$

Not available

45

Briggs & Stratton B4363GS

CAP, Fuel Gauge

$41.99

$

In Stock, Qty 20+

0

46

Briggs & Stratton 48031CGS

CLAMP, Hose, Band
(Superseded to 691038)

$3.99

$

In Stock, Qty 16

0

47

Briggs & Stratton 30340GS

HOSE, Fuel
(Superseded to 499742)

$77.99

$

In Stock, Qty 9

0

48

Briggs & Stratton 189164GS

NUT, Palnut

$3.99

$

Usually ships in 2-12 days

0

49

Briggs & Stratton J92039GS

SHIELD, Heat

$

$

Not available

50

Briggs & Stratton 73054GS

DECAL, Fuel Shut-off

$8.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 92982GS

DECAL, Danger
(Superseded to 194799GS)

$11.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 189235GS

DECAL, Start Instructions

$19.99

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 188333GS

DECAL, Gas Fill

$23.99

$

In Stock, only 1 left!

0

54

Briggs & Stratton 92665GS

INSULATION

$16.99

$

Usually ships in 2-12 days

0

55

Briggs & Stratton B1998GS

ASSY,Tank, Fuel
(Superseded to 193500GS)

Note: (Includes Items 41 & 42)

$

$

Not available

56

Briggs & Stratton 85000GS

CLIP, Insulation

$2.99

$

Usually ships in 2-12 days

0

57

Briggs & Stratton BB3061GS

BOTTLE, Oil

$13.99

$

In Stock, only 1 left!

0

58

Briggs & Stratton 192159GS

MANUAL, Owners

$14.99

$

Usually ships in 2-12 days

0

59

Briggs & Stratton 275092

MANUAL, Engine

$

$

Not available

60

Briggs & Stratton 43438GS

PLUG, 250V, 30A

$26.99

$

Usually ships in 2-12 days

0

900

Briggs & Stratton ~NSP

ENGINE

$

$

Currently unavailable
