16533 ES (1696272-00) - Murray 33" Snow Thrower, 16.5hp (2013) Handles & Controls Group Parts Diagram

33" Snow Thrower, 16.5hp

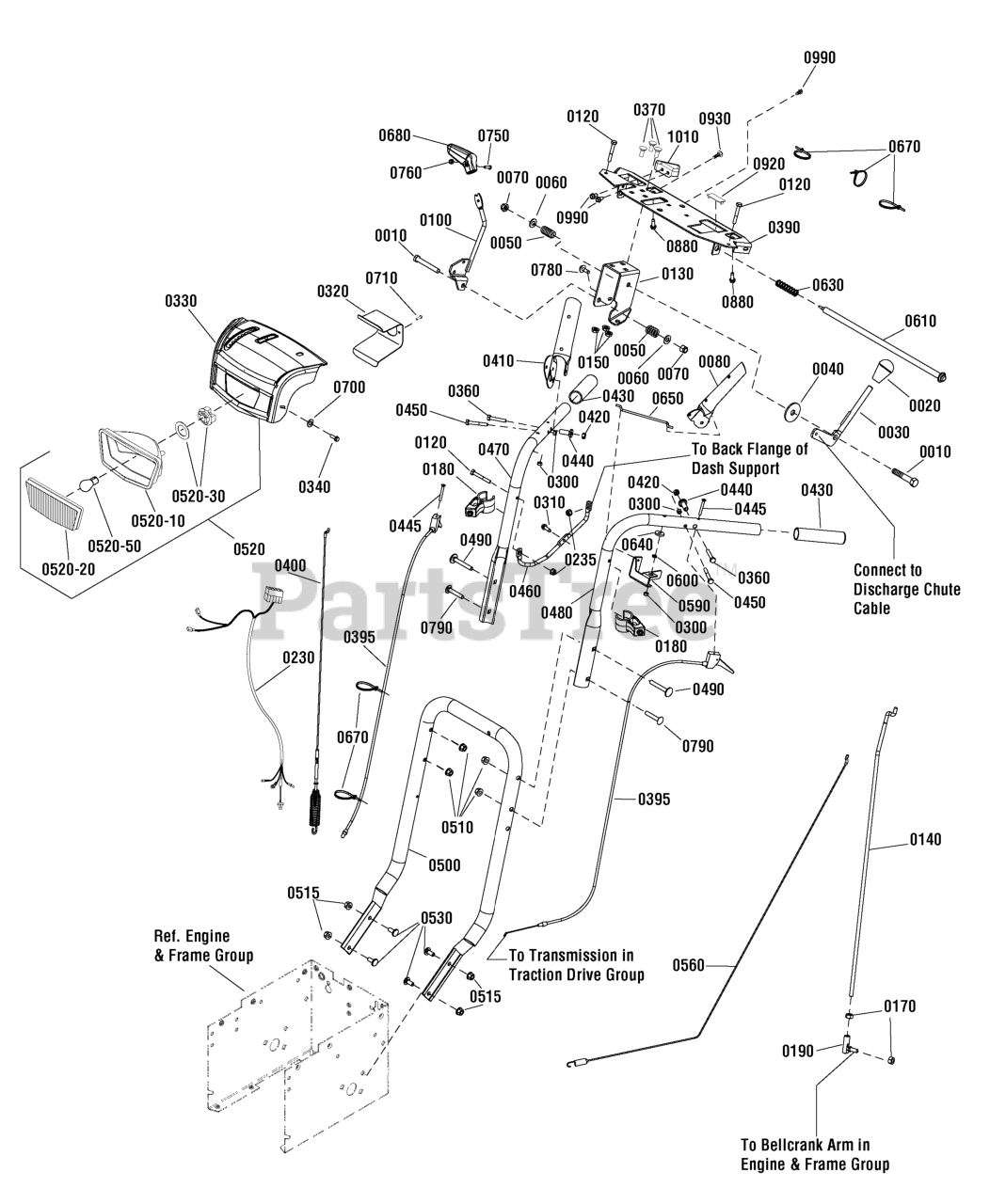

Handles & Controls Group Parts Diagram

  • Title

0010

Murray 703589

CAPSCREW, Hex Head, 3/8-16 x 2, G5

$4.49

$

In Stock, only 1 left!

0

0020

Murray 1732470SM

KNOB, 3/8-16

$19.99

$

In Stock, Qty 6

0

0030

Murray 1736192YP

LEVER, Deflector Control

$13.99

$

Usually ships in 2-12 days

0

0040

Murray 703591

WASHER, Flat, 13/32 x 1 1/2 x 1/8

$5.49

$

In Stock, Qty 20+

0

0050

Murray 50786MA

SPRING, 1/2 Dia. x 3/4

$5.49

$

Usually ships in 2-12 days

0

0060

Murray 71072MA

WASHER, Flat, 13/32

$4.49

$

In Stock, only 4 left!

0

0070

Murray 1919439SM

NUT, Hex Lock, 3/8-16
(Superseded to 703117)

$3.49

$

In Stock, Qty 20+

0

0080

Murray 1739782AYP

LEVER, Clutch, LH

$

$

Not available

0100

Murray 703047

SPEED LEVER ASSEMBLY

$56.99

$

Usually ships in 2-12 days

0

0120

Murray 7091003YP

CAPSCREW, Hex Head, 1/4-20 x 1-3/4, G5

$3.49

$

Usually ships in 2-12 days

0

0130

Murray 1737684YP

BRACKET, Controls

$16.99

$

Usually ships in 2-12 days

0

0140

Murray 1737331YP

ROD, Speed Control

$19.99

$

In Stock, only 1 left!

0

0150

Murray 690272MA

NUT, Hex Flange, Whiz Lock, 5/16-18

$

$

Not available

0170

Murray 703331

NUT, Hex Flange Serrated Lock, 5/16-18

$3.99

$

In Stock, Qty 20+

0

0180

Murray 1739510YP

BRACKET, Handle, Lower Mounting

$14.99

$

Usually ships in 2-12 days

0

0190

Murray 703224

BALL JOINT, Quick Release

$21.99

$

In Stock, only 2 left!

0

0230

Murray 1755059YP

HARNESS

$59.99

$

Usually ships in 2-12 days

0

0235

Murray 703463

NUT, Nylock Flanged, 1/4-20

$4.49

$

In Stock, Qty 20+

0

0300

Murray 15X145MA

NUT, Hex Nylock, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

0310

Murray 703466

SCREW, Hex Washer Head, Taptite, 1/4-20 x 3/4

$3.99

$

In Stock, Qty 10

0

0320

Murray 1736305BMYP

BRACKET, Light Mount

$

$

Currently unavailable

0330

Murray 1755298YP

PANEL ASSEMBLY

$

$

Currently unavailable

0340

Murray 703062

SCREW, Hex Washer Head, Plastite,10-14 x 5/8

$4.49

$

Usually ships in 2-12 days

0

0360

Murray 1753529YP

BOLT, Shoulder, Hex Washer Head, 1/4 x 1-1/2

$3.99

$

Usually ships in 2-12 days

0

0370

Murray 703225

BOLT, Carriage, 5/16-18 x 3/4

$3.99

$

In Stock, Qty 18

0

0390

Murray 1739500BMYP

SUPPORT, Dash

$54.99

$

Usually ships in 2-12 days

0

0395

Murray 1737510YP

CABLE, Steering Control

$33.99

$

Usually ships in 2-12 days

0

0400

Murray 703221

CABLE & SPRING ASSEMBLY, Auger Drive, R.H.

$24.99

$

In Stock, only 4 left!

0

0410

Murray 1739783AYP

LEVER, Clutch, RH

$28.99

$

In Stock, only 1 left!

0

0420

Murray 15X146MA

NUT, Nylock, 10 x 24
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0

0430

Murray 1726317SM

GRIP

$8.49

$

In Stock, only 1 left!

0

0440

Murray 703223

SPACER, Stepped

$4.49

$

Usually ships in 2-12 days

0

0445

Murray 703134

BOLT, 10-24 x 1.5, GR5

$3.49

$

Usually ships in 2-12 days

0

0450

Murray 703045

BOLT, Shoulder, 1/4-20 x 1 3/4

$3.49

$

Usually ships in 2-12 days

0

0460

Murray 1737552YP

BRACE

$22.99

$

In Stock, only 1 left!

0

0470

Murray 1737531AYP

HANDLE, Upper, R.H.

$59.99

$

Usually ships in 2-12 days

0

0480

Murray 1737532AYP

HANDLE, Upper, L.H.

$53.99

$

Usually ships in 2-12 days

0

0490

Murray 704421

BOLT, Carriage, 5/16-18 x 2-1/4 G5

$5.49

$

In Stock, only 1 left!

0

0500

Murray 1737274AYP

HANDLE, Lower

$107.99

$

Usually ships in 2-12 days

0

0510

Murray 703115

NUT, Flange Nylock, 5/16-18

$3.49

$

In Stock, Qty 20+

0

0515

Murray 703222

NUT, Hex KEPS, Conical Washer, 5/16-18

$5.99

$

In Stock, only 2 left!

0

0520

Murray 1736208YP

HEADLIGHT ASSEMBLY

$42.99

$

Usually ships in 2-12 days

0

0520-10

DEFLECTOR, Light

Note: (Included with Ref. No. 0520)

$

$

Not available

0520-20

LENS, Light (Included with Ref. No. 0520)

Note: (Included with Ref. No. 0520)

$

$

Not available

0520-30

Murray 1736180YP

SOCKET & GASKET ASSEMBLY, Headlight

Note: (Included with Ref. No. 0520)

$10.99

$

Usually ships in 2-12 days

0

0520-50

* BULB, Light, 12V 15W

Note: (Included with Ref. No. 0520)

$

$

Not available

0530

Murray 1737687YP

BOLT, Carriage, 5/16-18 x 3/4

$6.49

$

Usually ships in 2-12 days

0

0560

Murray 1737511YP

CABLE, Forward Drive

$24.99

$

In Stock, only 1 left!

0

0590

Murray 1733505BMYP

BRKT, Pivot, Free Hand

$14.99

$

Usually ships in 2-12 days

0

0600

Murray 703124

SPACER, Powdered Metal

$3.99

$

Usually ships in 2-12 days

0

0610

Murray 1736363YP

ROD & SPRING ASSEMBLY

$33.99

$

Usually ships in 2-12 days

0

0630

Murray 2108360SM

SPRING, Compression, 017/32 ID x 2-1/4 Lg

$5.49

$

In Stock, only 1 left!

0

0640

Murray 703229

WASHER, 0.261ID x 0.84OD x 0.12

$4.49

$

In Stock, Qty 7

0

0650

Murray 1736360YP

ROD, Hold Down, 5/32 Dia., 5-5/8 Lg

$11.99

$

Usually ships in 2-12 days

0

0670

Murray 703586

TIE, Self Locking

$4.99

$

Usually ships in 2-12 days

0

0680

Murray 1733192SM

KNOB, Speed

$8.49

$

Usually ships in 2-12 days

0

0700

Murray 703332

WASHER, Flat, 1/4

$4.49

$

In Stock, Qty 20+

0

0710

Murray 316042MA

SCREW, Hex Washer Head, #10-HL x 5/8

$4.49

$

Usually ships in 2-12 days

0

0750

Murray 1960589SM

SCREW, Phillips, #10-24 x 3/4

$3.99

$

Usually ships in 2-12 days

0

0760

Murray 703412

NUT, Nylock, 10 x 24

$4.49

$

In Stock, only 2 left!

0

0780

Murray 703466

SCREW, Hex Washer Head, Taptite, 1/4-20 x 3/4

$3.99

$

In Stock, Qty 10

0

0790

Murray 703175

BOLT, Carriage, Short Neck, 5/16-18 x 1-3/4, GR5

$3.99

$

In Stock, only 2 left!

0

0880

Murray 7091081SM

SCREW, 1/4-15X3/4, Self-Tapping, BZ

$4.49

$

In Stock, Qty 12

0

0920

Murray 1709188SM

PLUG

$4.99

$

In Stock, only 1 left!

0

0930

Murray 703576

BOLT, Carriage, 1/4-20 x 3/4
(Superseded to 703101)

$3.99

$

In Stock, only 1 left!

0

0990

Murray 1960556SM

SCREW, Pan Head, Torx, 1/4-20 x 3/4, Taptite

$4.49

$

Usually ships in 2-12 days

0

1010

Murray 1739483AYP

POD, Chute Rotation, RH

$35.99

$

Usually ships in 2-12 days

0
