16533 ES (1696272-00) - Murray 33" Snow Thrower, 16.5hp (2013) Discharge Chute Group Parts Diagram

33" Snow Thrower, 16.5hp

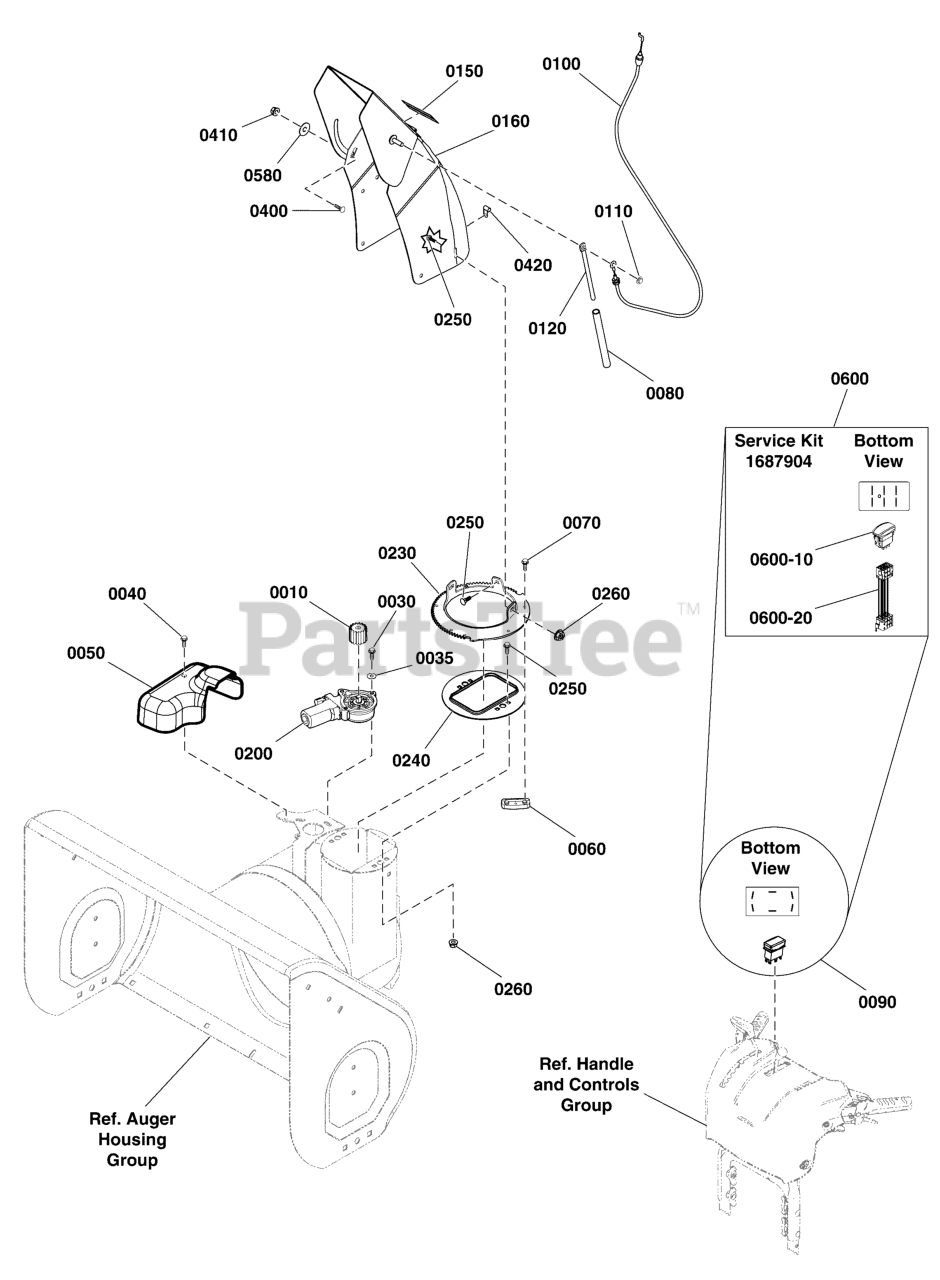

Discharge Chute Group Parts Diagram

  • Title
0010

$17.99

$

In Stock, only 4 left!

0

0030

Murray 1739621YP

SCREW, Button Head, Torx, M5 x .8 x 14

$4.49

$

In Stock, Qty 13

0

0035

Murray 7091552SM

WASHER, Flat, 1/4

$3.99

$

In Stock, Qty 14

0

0040

Murray 1925592SM

SCREW, Hex Washer Head, Taptite, 1/4-20 x 3/4
(Superseded to 703466)

$3.99

$

In Stock, Qty 10

0

0050

Murray 1752877YP

COVER, Electric Chute Rotation

$16.99

$

In Stock, only 1 left!

0

0060

Murray 7011938SM

RETAINER, Spout

$

$

Not available

0070

Murray 1960001SM

SCREW, Hex Washer Head, Plastite, 10-14 x 5/8
(Superseded to 703062)

$4.49

$

In Stock, only 3 left!

0

0080

Murray 1734647SM

SPRING, Compression, 6"
(Superseded to 703135)

$3.99

$

Usually ships in 2-12 days

0

0090

Murray 1737378YP

SWITCH, Chute Rotation
(Superseded to 1687904)

$82.99

$

In Stock, Qty 15

0

0100

Murray 1750623YP

CABLE ASSEMBLY, Chute Deflector

$49.99

$

In Stock, Qty 6

0

0110

Murray 1932718SM

NUT, Push, 5/16
(Superseded to 704028)

$5.49

$

In Stock, only 3 left!

0

0130

Murray 1734708ASM

ROD, Spring Guide

$13.99

$

Usually ships in 2-12 days

0

0140

Murray 7012080SM

CABLE TIE
(Superseded to 703586)

$4.99

$

Usually ships in 2-12 days

0

0150

Murray 1733601SM

DECAL, Hinge

$12.99

$

In Stock, only 1 left!

0

0160

$125.99

$

Usually ships in 2-12 days

0

0200

Murray 1739309YP

MOTOR, Chute Rotation
(Superseded to 708703)

$86.99

$

In Stock, Qty 8

0

0230

Murray 1737465AYP

GEAR, Chute

$39.99

$

Usually ships in 2-12 days

0

0240

Murray 1737411YP

ADAPTER, Chute Ring

$19.99

$

Usually ships in 2-12 days

0

0250

Murray 703101

BOLT, Carriage, 1/4-20 x 3/4

$3.99

$

In Stock, only 1 left!

0

0260

Murray 1960685SM

NUT, Hex KEPS, 1/4-20
(Superseded to 703061)

$3.49

$

In Stock, Qty 11

0

0400

Murray 1931333SM

BOLT, Carriage, Short Neck, 5/16-18 x 3/4, G5
(Superseded to 703185)

$3.49

$

In Stock, Qty 12

0

0410

Murray 1739305YP

NUT, Hex Flange, ESNA, 5/16-18
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

0420

Murray 703174

CLIP, Cable

$4.49

$

Usually ships in 2-12 days

0

0580

Murray 2860210SM

WASHER, Nylon

$4.49

$

In Stock, only 2 left!

0
