16533 ES (1696272-00) - Murray 33" Snow Thrower, 16.5hp (2013) Auger Drive Group Parts Diagram

33" Snow Thrower, 16.5hp

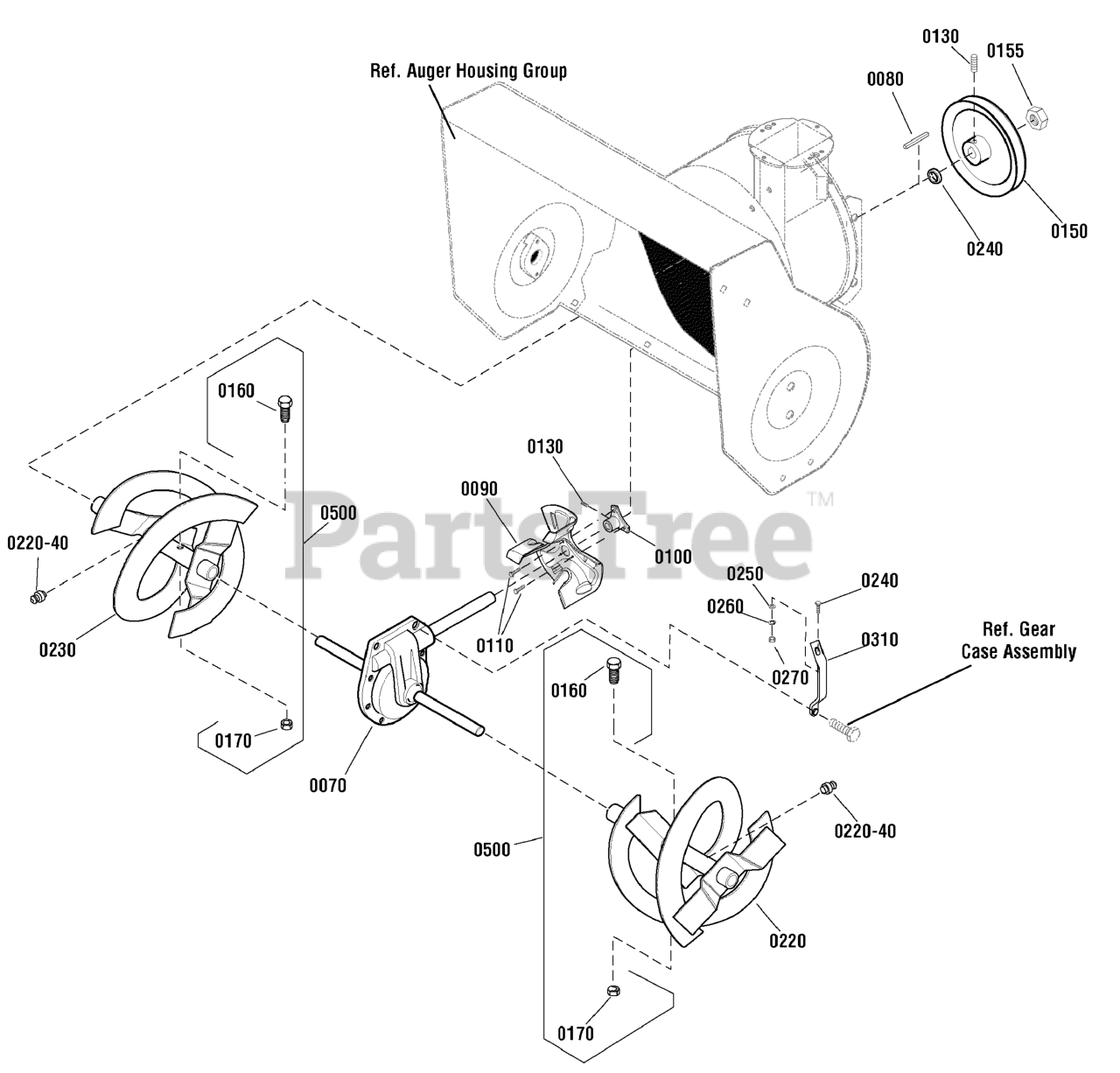

Auger Drive Group Parts Diagram

  • Title

0070

Murray 1752306YP

GEAR CASE ASSEMBLY
(Superseded to 1753711YP)

$552.99

$

Usually ships in 2-12 days

0

0080

Murray 056534MA

KEY, Square, 3/16 x 1

$4.99

$

Usually ships in 2-12 days

0

0090

Murray 1739094AYP

IMPELLER
(Superseded to 1687600YP)

$86.99

$

In Stock, Qty 20+

0

0100

Murray 1739073YP

HUB, Impeller

$23.99

$

In Stock, only 4 left!

0

0110

Murray 1924856SM

SCREW, Hex Washer Head Taptite, 5/16-18 x 1/2
(Superseded to 703985)

$4.49

$

In Stock, only 3 left!

0

0130

Murray 7090848SM

SCREW, Square Head Set, 5/16-18 x 1/2

$10.99

$

In Stock, only 1 left!

0

0150

Murray 1501211MA

PULLEY

$71.99

$

In Stock, only 4 left!

0

0160

Murray 578647MA

BOLT, Shoulder, 5/16-18 x 1-3/4
(Superseded to 703335)

$6.49

$

Usually ships in 2-12 days

0

0170

Murray 703164

NUT, Hex Centerlock, 5/16-18

$3.49

$

In Stock, Qty 19

0

0220

Murray 1737972BJYP

AUGER, LH, 33
(Superseded to 1737972BMYP)

Note: (Includes Ref. No. 0220-40)

$173.99

$

Usually ships in 2-12 days

0

0220-40

Murray 10104MA

FITTING, Grease
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

0230

Murray 1737973BJYP

AUGER, RH, 33
(Superseded to 1737973BMYP)

Note: (Includes Ref. No. 0220-40)

$186.99

$

Usually ships in 2-12 days

0

0240

Murray 302636MA

CAPSCREW, Hex Head, 5/16-18 x 1-1/4

$4.99

$

Usually ships in 2-12 days

0

0250

Murray 71071MA

WASHER, Flat
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

0260

Murray 703116

WASHER, Split Lock, 5/16

$3.49

$

In Stock, Qty 20+

0

0270

Murray 703465

NUT, Hex, 5/16-18

$4.49

$

Usually ships in 2-12 days

0

0310

Murray 703131

BRACE, Gear Box

$9.49

$

Usually ships in 2-12 days

0

0500

Murray 1501217MA

KIT, Shear Bolt

Note: (Includes Ref. Nos. 0160 & 0170)

$8.99

$

In Stock, only 1 left!

0
