16530 XLS (961930062-00) - Husqvarna 30" Snow Blower (2010-06) DRIVE Parts Diagram

30" Snow Blower

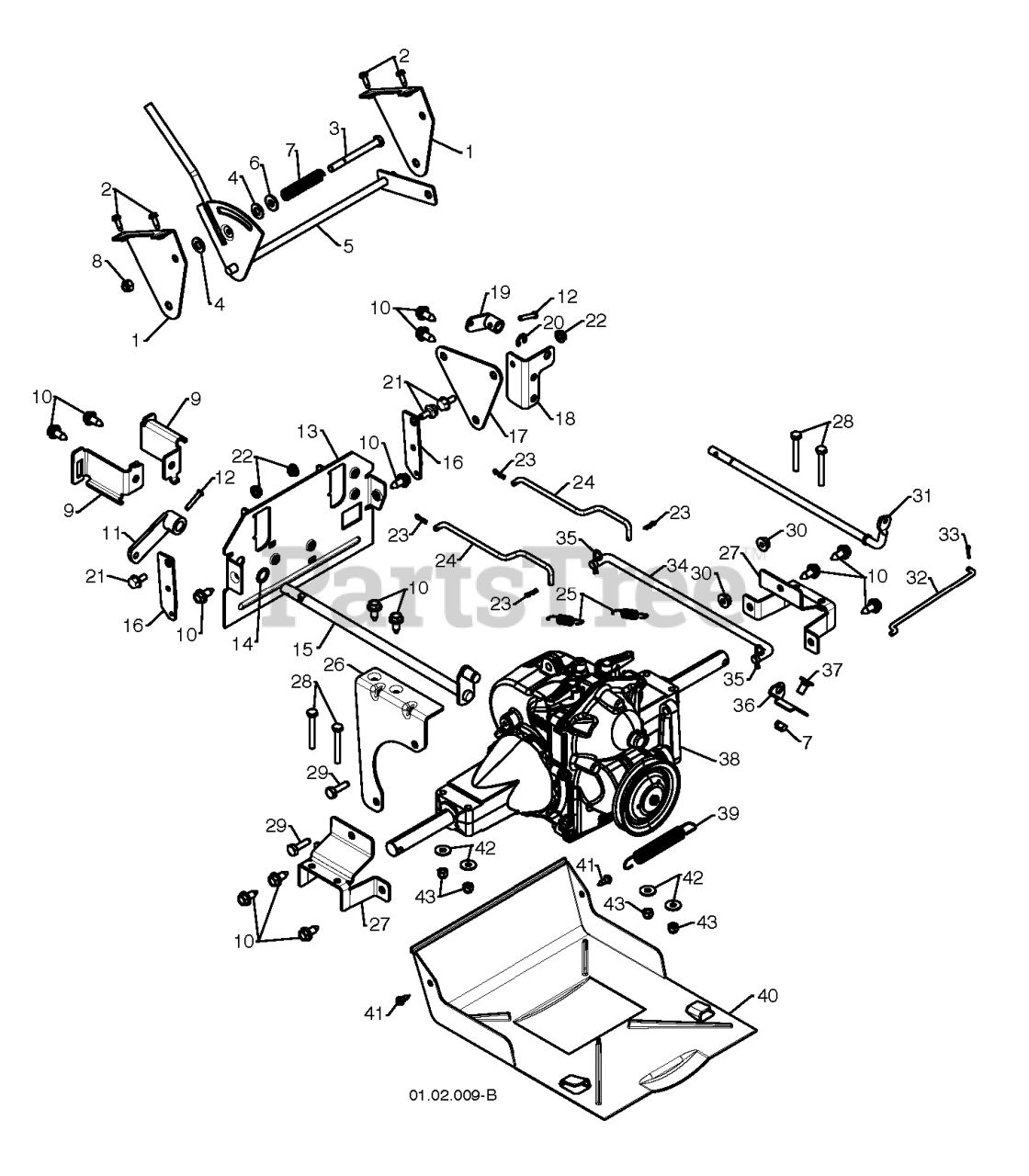

DRIVE Parts Diagram

  • Title

43

Husqvarna 873800400

LOCKNUT.NYLOC.1/4-20
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

37

Husqvarna 532180355

BOLT.CARRIAGE.5/16-18X

$7.49

$

In Stock, Qty 9

0

3

Husqvarna 874760552

SCREW 5/16-18 X 3.25

$

$

Not available

32

Husqvarna 532198250

RP ROD.HYD.CLUTCH
(Superseded to 532446293)

$10.99

$

Usually ships in 3-10 days

0

31

Husqvarna 532198251

SHAFT.HYD.CLUTCH

$

$

Not available

25

Husqvarna 532194124

SPRING.RETURN

$6.49

$

Usually ships in 3-10 days

0

13

Husqvarna 532437151

PLATE.REAR.HYDRO.PNT.ORANGE

$9.99

$

Usually ships in 3-10 days

0

40

Husqvarna 532425498

PAN.BOTTOM.PLASTIC.SNOW

$31.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532427944

BRACKET.CABLE.HYDRO
(Superseded to 532443347)

Note: RH

$4.99

$

Usually ships in 3-10 days

0

34

Husqvarna 532425499

ROD.SPEED.CONT.HYD.SNOW

$10.99

$

Usually ships in 3-10 days

0

24

Husqvarna 532425496

ROD.STEER.HYD

$26.99

$

Usually ships in 3-10 days

0

17

Husqvarna 532425545

BRACKET.SPEED.PIVOT.
(Superseded to 532443349)

$9.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532192195

SRPING.FRICTION.HYDRO

$4.99

$

In Stock, only 1 left!

0

29

Husqvarna 874760516

BOLT RB
(Superseded to 874780516)

$6.49

$

Usually ships in 3-10 days

0

28

Husqvarna 874880432

BOLT.HEX.1/4-20X2.00.HEX.HD.

$4.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532065322

COTTER PIN (3 2)(2 2MC)

$4.99

$

Usually ships in 3-10 days

0

8

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK

$3.99

$

Usually ships in 3-10 days

0

19

Husqvarna 532198249

ARM.HYD.CLUTCH

$7.99

$

Usually ships in 3-10 days

0

16

Husqvarna 532425534

$

$

Currently unavailable

5

Husqvarna 532425596

CONTROL.WLD.HYD.II

$60.99

$

Usually ships in 3-10 days

0

30

Husqvarna 532751153

NUT.LOCK.5/16-18

$4.99

$

In Stock, only 2 left!

0

10

Husqvarna 532428867

BOLT.HEX.HD.WASHER.5/16-18X.75

$6.49

$

In Stock, Qty 6

0

26

Husqvarna 532437150

BRACKET.HYDRO.STABILIZER
(Superseded to 532443346)

$8.99

$

Usually ships in 3-10 days

0

12

Husqvarna 532198580

CLEVIS PIN

$6.49

$

Usually ships in 3-10 days

0

33

Husqvarna 532700279

RETAINER CLIP

$6.49

$

Usually ships in 3-10 days

0

14

Husqvarna 532057079

THRUST WASHER

$6.49

$

In Stock, Qty 10

0

35

Husqvarna 532169675

SPRING RETAINER

$7.49

$

In Stock, only 1 left!

0

20

Husqvarna 532428288

E-RING.RETAINER.REINFORCED.375

$4.99

$

Usually ships in 3-10 days

0

1

Husqvarna 532192002

BRACKET, SHIFT
(Superseded to 532443344)

$4.99

$

Usually ships in 3-10 days

0

39

Husqvarna 532178828

SPRING, BRAKE

$6.49

$

In Stock, only 2 left!

0

42

Husqvarna 532053847

WASHER
(Superseded to 819091214)

$10.99

$

Usually ships in 3-10 days

0

21

Husqvarna 532402881

BOLT.SHOULDER.3/X.25

$4.99

$

Usually ships in 3-10 days

0

4

Husqvarna 532179246

WASHER, NYLON FRICTION

$7.49

$

In Stock, Qty 6

0

6

Husqvarna 532155415

WASHER.20X8.5

$5.99

$

In Stock, only 1 left!

0

22

Husqvarna 532191730

NUT.HEX.FLANGE.1/4

$7.49

$

In Stock, Qty 5

0

11

Husqvarna 532405485

ARM, AUGER CONTROL

$9.99

$

In Stock, only 1 left!

0

18

Husqvarna 532425543

BRACKET.SPEED.PIVOT
(Superseded to 532443348)

$8.99

$

Usually ships in 3-10 days

0

41

Husqvarna 532184471

SCREW, HEX HEAD, TAPPING

$4.99

$

Usually ships in 3-10 days

0

27

Husqvarna 532437149

BRACKET.TRANSMISSION.MOUNT
(Superseded to 532443345)

$9.49

$

Usually ships in 3-10 days

0

38

Husqvarna 532425394

TRANSAXLE HYDRO.II PS 71876
(Superseded to 591388201)

$1367.99

$

Usually ships in 3-10 days

0

36

Husqvarna 532198247

FRONT CLUTCH BRACKET
(Superseded to 532429803)

$

$

Not available

15

Husqvarna 532427542

CONTROL.SHAFT.ASM
(Superseded to 532429668)

$47.99

$

In Stock, only 1 left!

0

2

Husqvarna 817501010

SCREW #10-24 X 5/8

$

$

Not available
