1653-4 - Generac Elite Series 3,250 Watt Portable Generator Main Unit Parts Diagram

Elite Series 3,250 Watt Portable Generator

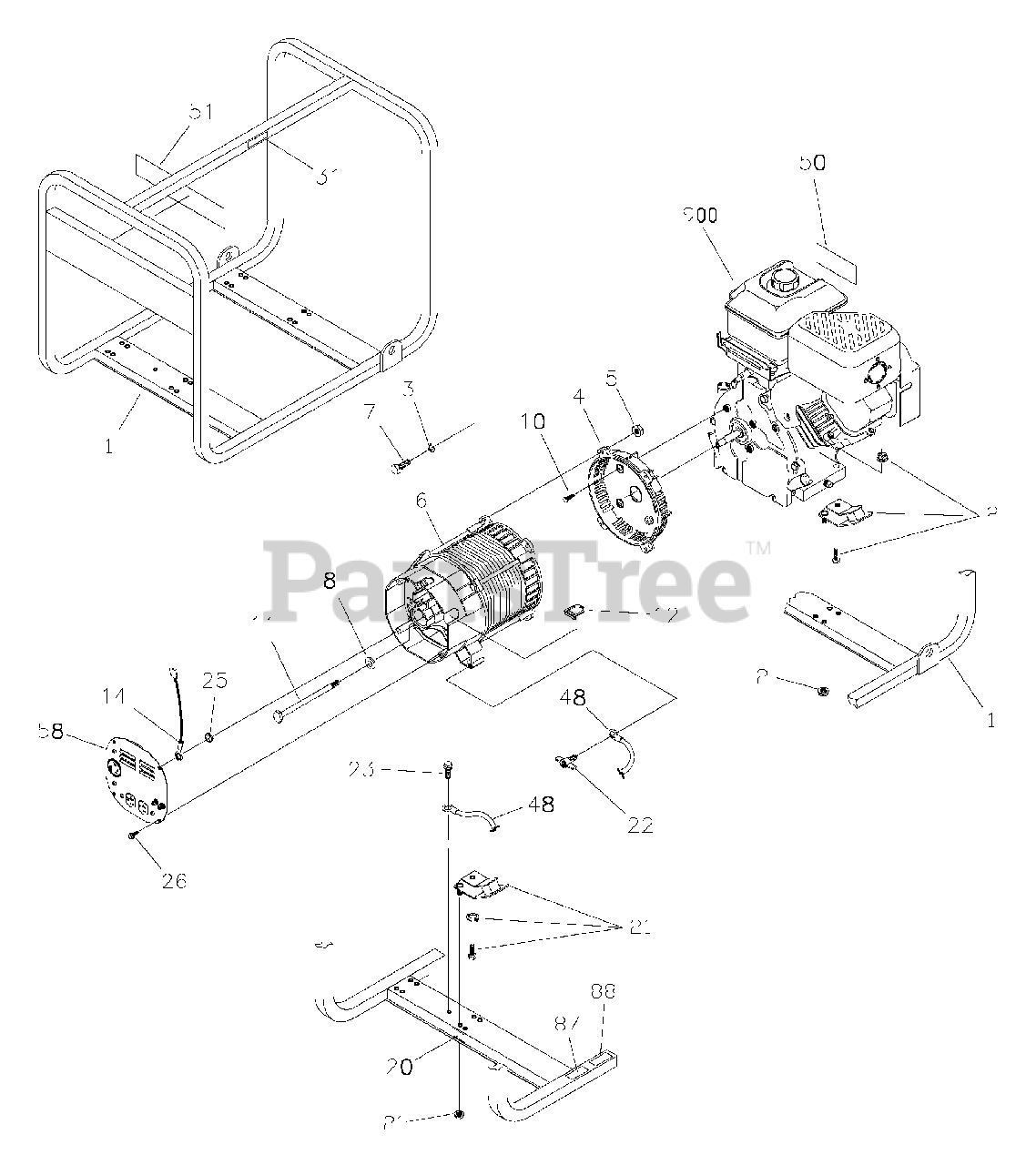

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton M190341GS

KIT, Cradle

$262.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 194150GS

KIT,Vibration Mount

$13.99

$

Usually ships in 2-12 days

0

3

WASHER, 5/16 - M8 Lock

Note: (Purchase locally)

$

$

Not available

4

Briggs & Stratton 186058AGS

HOUSING, Engine Adapter

$30.99

$

Usually ships in 2-12 days

0

5

NUT, Hex, M8 - 1.25

Note: (Purchase locally)

$

$

Not available

6

NSP

ASSY,Alternator

Note: (see "Alternator")

$

$

Not available

7

HHCS, M8 - 1.25 x 25

Note: (Purchase locally)

$

$

Not available

8

Briggs & Stratton 96796GS

WASHER, Flat (special)

$3.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 86307GS

HHCS, 5/16 - 24 x 3/4, SEMS

$2.99

$

In Stock, only 3 left!

0

11

Briggs & Stratton 47480GS

HHCS, 5/16" - 24 x 7"

$10.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 84242GS

GROMMET, Plastic RBC

$4.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 55199JGS

WIRE, Ground Panel

$1.49

$

Usually ships in 2-12 days

0

20

Briggs & Stratton B4986GS

DECAL, Ground

$2.99

$

In Stock, only 1 left!

0

21

Briggs & Stratton 194849GS

KIT,Vibration Mount

$11.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 86494GS

SCREW,Wing M6 - 1.0 x 16

$2.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 86292GS

SCREW, 10-16 x 3/4, Self Drill
(Superseded to 313085GS)

$4.99

$

In Stock, only 1 left!

0

25

WASHER, #10 Ext. Shakeproof

Note: (Purchase locally)

$

$

Not available

26

Briggs & Stratton 74908GS

TAPTITE, M5 .08 x 10mm

$2.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 191436GS

DECAL, Caution Hot Muffler

$8.49

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 195373GS

WIRE, Ground

$2.49

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 196740GS

DECAL, Fuel Tank

$17.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 196056GS

DECAL, Start,Warning, English/French

$26.99

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 189645GS

ASSY, Control Panel

Note: (see "Control Panel")

$104.99

$

Usually ships in 2-12 days

0

87

Briggs & Stratton 195459GS

DECAL, Neutral Ground

$6.99

$

Usually ships in 2-12 days

0

88

Briggs & Stratton 195940GS

DECAL, French Neutral Ground

$6.99

$

Usually ships in 2-12 days

0

900

ENGINE

$

$

Not available

Briggs & Stratton BB3061BGS

BOTTLE, Oil
(Superseded to 100005)

Note: Parts Not Illustrated

$8.99

$

In Stock, Qty 20+

0

Briggs & Stratton 199972GS

MANUAL, Operator's

Note: Parts Not Illustrated

$14.99

$

Usually ships in 2-12 days

0

Briggs & Stratton MS5242

MANUAL, Engine

Note: Parts Not Illustrated

$

$

Not available

Briggs & Stratton 200291GS

KIT, Decal Srv

Note: Parts Not Illustrated

$23.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 100031

STABILIZER, Fuel
(Superseded to 100126)

Note: Optional Accessories; Contact Engine Manufacturer

$3.49

$

In Stock, Qty 20+

0
