1653-1 - Generac 3,250 Watt Portable Generator Main Unit Parts Diagram

3,250 Watt Portable Generator

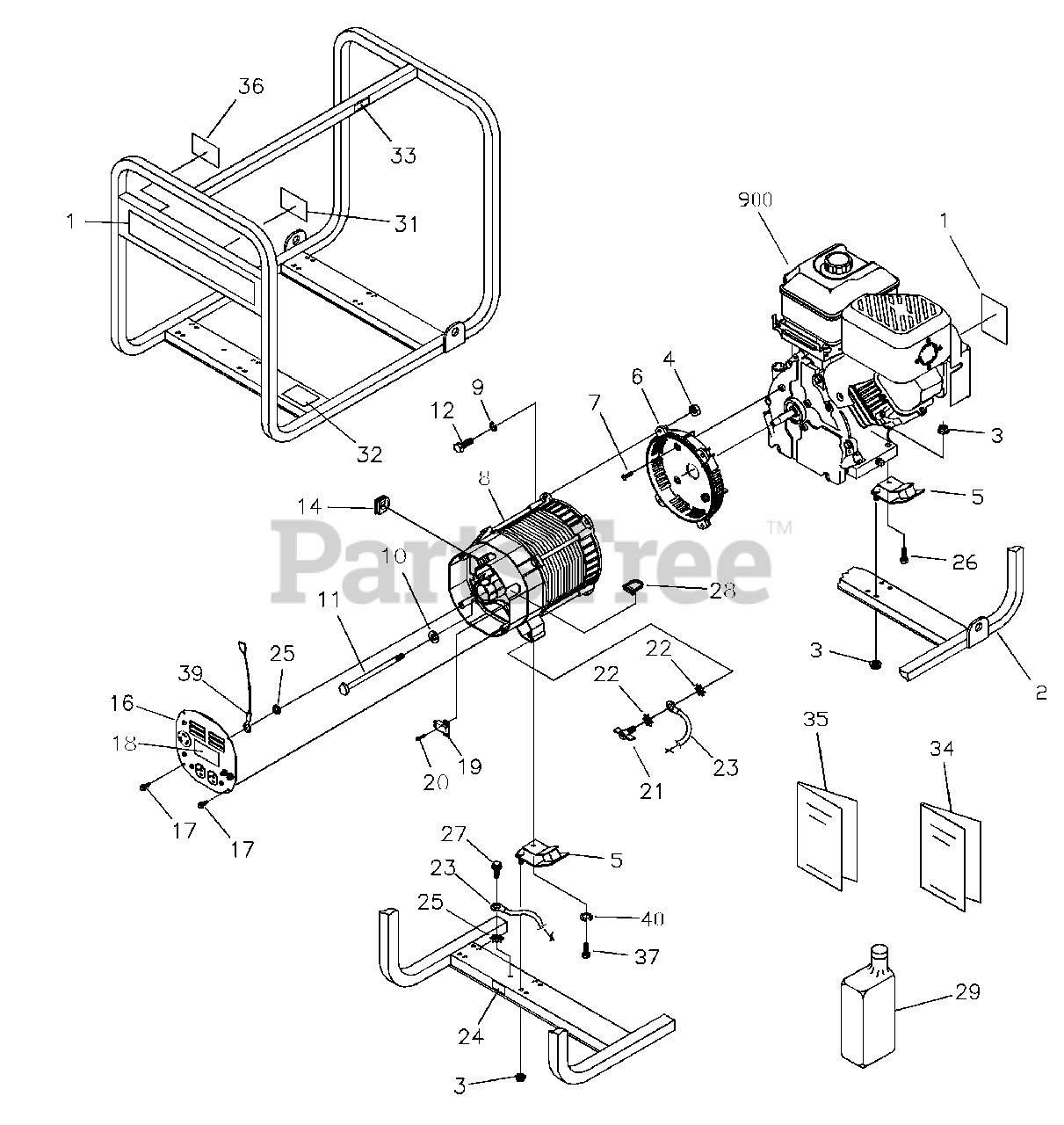

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton 189996GS

DECAL, Set

$22.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton M190341GS

ASSY, Cradle

$262.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 67989GS

NUT

$3.49

$

In Stock, Qty 5

0

4

Briggs & Stratton 45771GS

NUT

$6.49

$

In Stock, only 2 left!

0

5

Briggs & Stratton 70642GS

MOUNT, Vibration Engine

$31.99

$

In Stock, only 2 left!

0

6

Briggs & Stratton 186058AGS

HOUSING, Engine Adapter

$30.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 86307GS

SCREW

$2.99

$

In Stock, only 3 left!

0

8

Briggs & Stratton 192175GS

ASSY, Alternator

Note: (See "Alternator")

$

$

Currently unavailable

9

Briggs & Stratton 22129GS

WASHER, Lock

$2.99

$

In Stock, only 2 left!

0

10

Briggs & Stratton 96796GS

WASHER

$3.49

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 24823GS

SCREW

$18.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 43107GS

SCREW

$3.49

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 67022GS

GROMMET, Rubber

$3.49

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 86308GS

SCREW

$3.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 189645GS

ASSY, Control Panel

Note: (See "Control Panel")

$104.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 74908GS

SCREW

$2.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 189999GS

DECAL, Control Panel

$8.49

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 91825GS

RECTIFIER, Brush & Bridge

$54.99

$

In Stock, only 1 left!

0

20

Briggs & Stratton 66849GS

SCREW

$4.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 86494GS

SCREW, Wing

$2.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 26850GS

WASHER

$2.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 14353621GS

WIRE, Ground
(Superseded to 195373GS)

$2.49

$

Usually ships in 2-12 days

0

24

Briggs & Stratton B4986GS

DECAL, Ground

$2.99

$

In Stock, only 1 left!

0

25

Briggs & Stratton 23762GS

WASHER

$2.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 84346GS

SCREW
(Superseded to 195398GS)

$2.99

$

In Stock, only 1 left!

0

27

Briggs & Stratton 86292GS

SCREW
(Superseded to 313085GS)

$4.99

$

In Stock, only 1 left!

0

28

Briggs & Stratton 84242GS

GROMMET, Plastic RBC

$4.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton BB3061GS

BOTTLE, Oil

$13.99

$

In Stock, only 1 left!

0

31

Briggs & Stratton 191775GS

DECAL, Start Instructions

$5.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 20566GS

DECAL, 1-800

$1.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 77816GS

DECAL, Caution Hot Muffler

$4.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 192348GS

MANUAL, Owners

$14.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 275092

MANUAL, Engine

$

$

Not available

36

Briggs & Stratton 93639GS

DECAL, Danger

$11.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 70644GS

SCREW

$4.49

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 55199JGS

WIRE, Ground Panel

$1.49

$

Usually ships in 2-12 days

0

40

UNKNOWN

$

$

Not available

900

NSP

ENGINE

$

$

Not available
