1652G - MTD Pro Walk-Behind Mower (2000) Deck Assembly Standard Track Parts Diagram

Pro Walk-Behind Mower

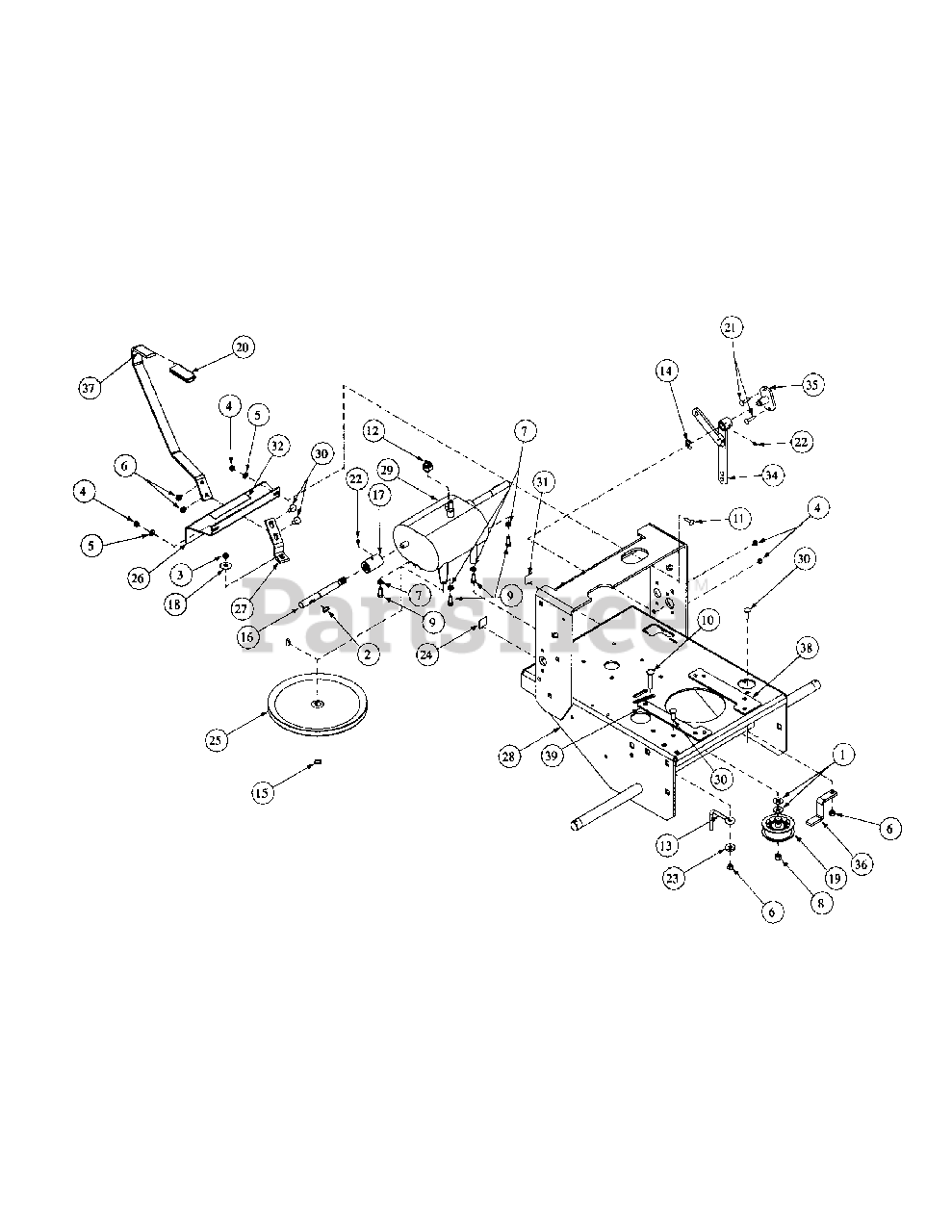

Deck Assembly Standard Track Parts Diagram

  • Title

1

MTD 00006168

Flat Washer, 3/8 Zinc
(Superseded to 936-3015)

$4.49

$

In Stock, Qty 20+

0

2

MTD 914-0868

Woodruff Key, 3/16 x 3/4

$3.99

$

In Stock, only 4 left!

0

3

MTD 00011454

Jam Nut, Insert Lock, 3/8-24

$

$

Not available

4

MTD 00012152

Lock Nut, Nylon Insert, 1/4-20

$4.49

$

In Stock, only 1 left!

0

5

MTD 00012154

Flat Washer, 1/4 Zinc
(Superseded to 936-3020)

$

$

Not available

6

MTD 00012165

Nut, 5/16-18 Nylock

$4.99

$

In Stock, only 1 left!

0

7

MTD 00012168

Lock Washer, 5/16 Zinc

$

$

Not available

8

MTD 712-04065

Lock Nut, Nylon Insert, 3/8-16

$3.99

$

In Stock, Qty 20+

0

9

MTD 00013406

Hex Cap Screw, 5/16-18 x 3/4
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

10

MTD 00014270

Carriage Bolt, 3/8-16 x2
(Superseded to 710-04157)

$8.99

$

In Stock, only 1 left!

0

11

MTD 00017584

Carriage Bolt, 1/4-20 x .750

$

$

Not available

12

MTD 00018329

Switch, WB Transmission

$107.99

$

Usually ships in 3-6 days

0

13

MTD 01005114

Drive Belt Guide

$13.99

$

Usually ships in 3-6 days

0

14

MTD 00021962

E-Ring, 5/8

$

$

Not available

15

MTD 00021964

External Retainer Ring

$

$

Not available

16

MTD 00030352

Jackshaft w/ Heavy Spline

$

$

Not available

17

MTD 00030353

Coupling w/Heavy Spline

$51.99

$

Usually ships in 3-6 days

0

18

MTD 00030355

Bell Washer, .39 ID x 1.13 OD x .062

$

$

Not available

19

MTD 02004558

Flat Idler Pulley w/Adapter

$22.99

$

In Stock, only 2 left!

0

20

MTD 00030884

Grip, .250 x 1 x 3-1/2, Yellow

$8.99

$

Usually ships in 3-6 days

0

21

MTD 00031602

Carriage Bolt, 1/4-20 x 1.00

$3.49

$

Usually ships in 3-6 days

0

22

MTD 737-04345

Grease Fitting, 1/4-28 x 3/16

$4.99

$

In Stock, Qty 6

0

23

MTD 00083192

Idler Washer
(Superseded to 736-0258)

$4.49

$

In Stock, only 2 left!

0

24

MTD 00090006

Decal "Made In America"

$

$

Not available

25

MTD 01000073

Transmission Pulley

$

$

Not available

26

MTD 01000092-0637

Shift Plate

$

$

Not available

27

MTD 01001014

Shift Arm

$

$

Not available

28

MTD 01001020

Engine Deck Assembly
(Superseded to 01000121-0637)

$

$

Not available

29

MTD 01000152P

Transmission, 5 Speed

$1084.99

$

Usually ships in 3-6 days

0

30

MTD 01000641

Carriage Bolt, 5/16-18 x 1

$3.49

$

Usually ships in 3-6 days

0

31

MTD 01001035

Label, Warning, Open Belt Drive

$

$

Not available

32

MTD 01001037

Label, Mower Instruction

$

$

Not available

34

MTD 00021902

Clutch, Bellecrank Weldment
(Superseded to 01009455)

$85.99

$

Usually ships in 3-6 days

0

35

MTD 00021906

Bellecrank Pivot, Weldment

$164.99

$

Usually ships in 3-6 days

0

36

MTD 01003146-0637

Engine Belt Guide

$

$

Not available

37

MTD 01004055

Shift Handle

$

$

Not available

38

MTD 01004394

Engine Spacer, RH

$

$

Not available

39

MTD 01004397

Engine Spacer, LH

Note: NLA

$

$

Not available
