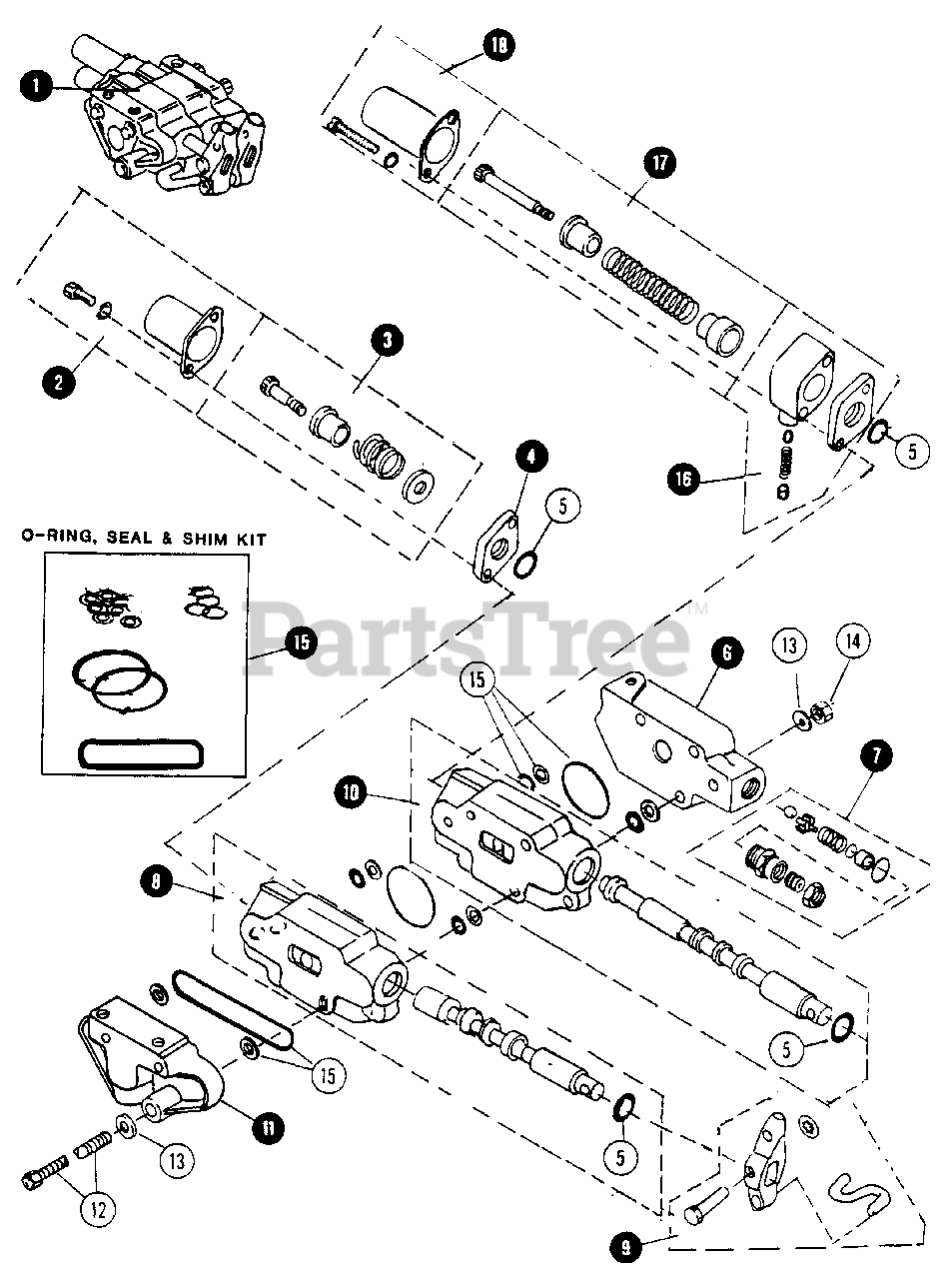

1650 A (80524) - Snapper Garden Tractor, 16hp Hydraulic Valve - 2 Spool Parts Diagram

Garden Tractor, 16hp

Hydraulic Valve - 2 Spool Parts Diagram

  • Title

1

Snapper 7019870

VALVE ASSEMBLY, 2 SPOOL

Note: (COMPLETE LESS HANDLES)

$

$

Currently unavailable

2

Snapper 7060427

KIT, SPOOL CAP REPLACEMENT

$

$

Currently unavailable

3

Snapper 60426

KIT, SPOOL SPRING REPAIR

$

$

Currently unavailable

4

Snapper 13747

SPACER, SPOOL

$

$

Currently unavailable

5

Snapper 7013001

O-RING

Note: (NOT PART OF ITEM 15 KIT - ORDER SEPARATELY)

$

$

Not available

6

Snapper 12962

COVER ASSEMBLY

Note: (INCLUDES SEAT)

$

$

Currently unavailable

7

Snapper 12984

KIT, RELIEF VALVE REPAIR

$

$

Currently unavailable

8

Snapper 13746

KIT, AUXILIARY VALVE REPLACEMENT

$

$

Currently unavailable

9

Snapper 7013749

KIT, HANDLE CONTROL REPAIR

$

$

Not available

10

Snapper 13745

KIT, MID/FRONT LIFT VALVE REPLACEMENT

$

$

Currently unavailable

11

Snapper 13750

COVER

$

$

Currently unavailable

12

Snapper 7090772

BOLT, 1/4 NF x 4-3/4 HEX HEAD

$

$

Currently unavailable

13

Snapper 7091294

WASHER, FLAT
(Superseded to 703332)

Note: Was 90055

$4.49

$

In Stock, Qty 20+

0

14

Snapper 7090095

NUT, 1/4 NF HEX
(Superseded to 7090095FS)

$3.49

$

Usually ships in 2-12 days

0

15

Snapper 7060428

KIT, SEAL & SHIM REPAIR

Note: (LESS ITEM 5)

$

$

Not available

16

Snapper 7060423

KIT DETENT REPAIR

$

$

Currently unavailable

17

Snapper 60424

KIT, DETENT SPOOL SPRING REPAIR

$

$

Currently unavailable

18

Snapper 7060425

KIT, SPOOL CAP REPLACEMENT
(Superseded to 7060425YP)

$22.99

$

Usually ships in 2-12 days

0
