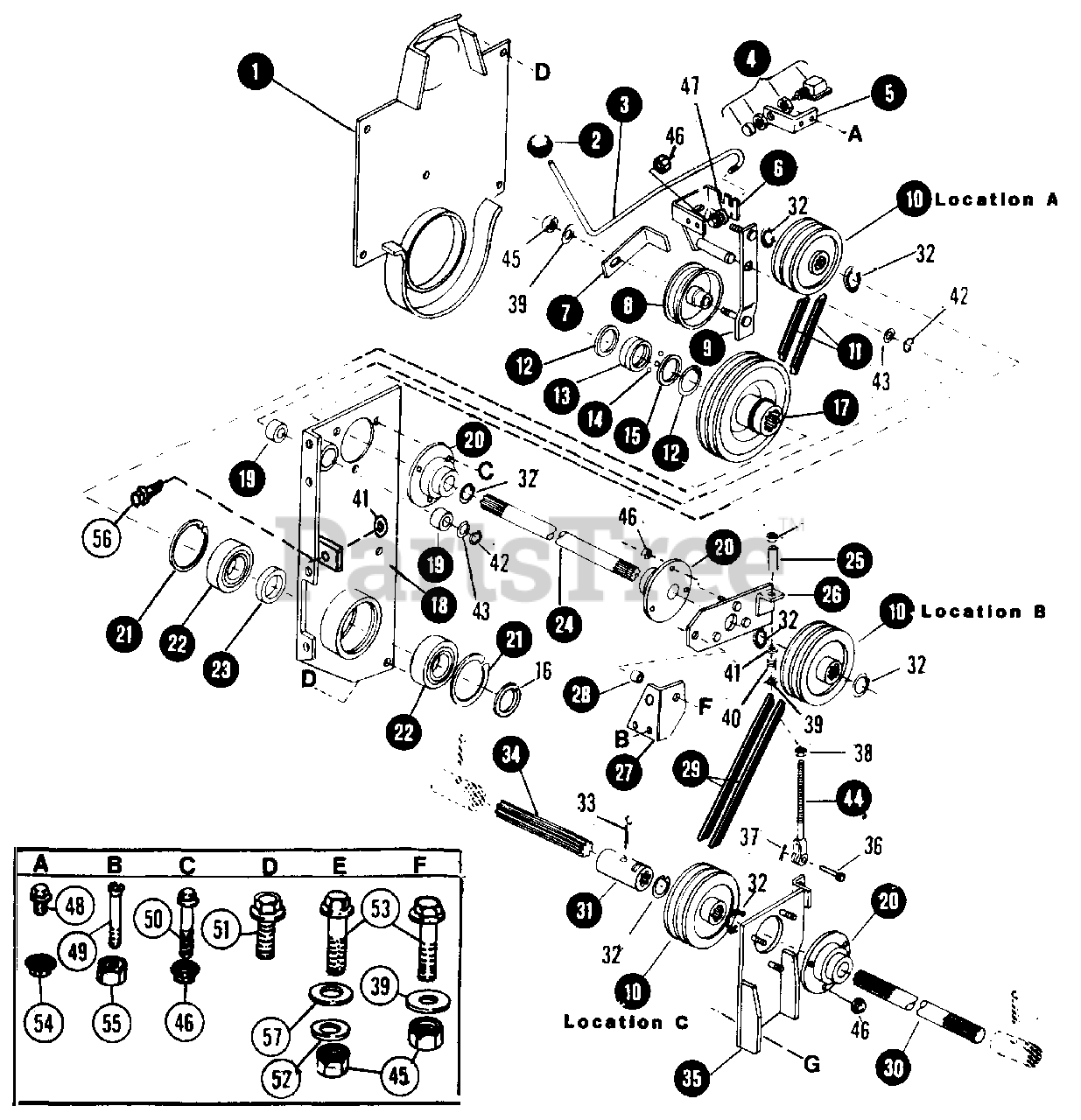

1650 (80424) - Snapper Garden Tractor, 16hp Rear Power Take-Off Parts Diagram

Garden Tractor, 16hp

Rear Power Take-Off Parts Diagram

  • Title
1

Snapper 7049847

COVER, REAR

Note: (1650A models w/rear PTO only)

$

$

Currently unavailable

2

Snapper 7018360

KNOB, P.T.O. CONTROL LEVER

$

$

Currently unavailable

3

Snapper 7019577

LEVER, REAR P.T.O. CONTROL

$

$

Currently unavailable

4

Snapper 7012668

SWITCH, P.T.O. INTERLOCK
(Superseded to 7012668YP)

$33.99

$

Usually ships in 2-12 days

0

5

Snapper 7037867

BRACKET, SWITCH MOUNTING

$

$

Currently unavailable

6

Snapper 7049610

BRACKET, IDLER ASSEMBLY

$

$

Currently unavailable

7

Snapper 7039675

GUIDE, V-BELT

$

$

Not available

8

Snapper 7018326

PULLEY IDLER, 3/8" ID, 4.0" OD, 1.25" Wide

$26.99

$

Usually ships in 2-12 days

0

9

Snapper 7047754

ARM, IDLER - ASSEMBLY

$

$

Currently unavailable

10

Snapper 7049590

PULLEY DRIVE
(Superseded to 7049590YP)

$152.99

$

Usually ships in 2-12 days

0

11

Snapper 7019607

V-BELTS (SET) REAR P.T.O. DRIVE

$46.99

$

Usually ships in 2-12 days

0

12

Snapper 7018362

RING, RETAINING

$

$

Not available

13

Snapper 7019609

COLLAR, SHAFT LOCK

$

$

Not available

14

Snapper 7012854

BALL, STEEL 3/8" DIAMETER

$2.99

$

Usually ships in 2-12 days

0

15

Snapper 7018361

SPRING, SLIDING RETAINING

$

$

Not available

16

Snapper 7012856

RING, RETAINING

$

$

Currently unavailable

17

Snapper 7019886

PULLEY, DRIVE

$

$

Currently unavailable

18

Snapper 7059546

PLATE, MOUNTING - ASSEMBLY

Note: (INCLUDES 2 OF ITEM #19)

$

$

Currently unavailable

19

Snapper 7012746

BUSHING, MOUNTING PLATE
(Superseded to 7012746YP)

$4.99

$

Usually ships in 2-12 days

0

20

Snapper 7018547

BEARING, 3 Hole Flanged Lock Collar Assy., 3/4" ID
(Superseded to 7018547YP)

Note: Was 19608

$170.99

$

Usually ships in 2-12 days

0

21

Snapper 7019610

RING, RETAINING

$

$

Currently unavailable

22

Snapper 7012857

BEARING, P.T.O. PULLEY, 1.37" ID, 2.83" OD, .66" Wide

Note: 6207-RS

$

$

Currently unavailable

23

Snapper 7027573

SPACER, STEEL

$

$

Currently unavailable

24

Snapper 7029537

SHAFT, REAR DRIVE

$

$

Not available

25

Snapper 7027527

SLEEVE, ROD GUIDE

$

$

Currently unavailable

26

Snapper 7049614

BRACKET, P.T O. SHAFT

$

$

Currently unavailable

27

Snapper 7037868

BRACKET, PIVOT

$

$

Currently unavailable

28

Snapper 7021815

SPACER, PIVOT

$7.99

$

Usually ships in 2-12 days

0

29

Snapper 7019550

V-BELTS (SET) P.T.O. DRIVE
(Superseded to 7019550YP)

$

$

Not available

30

Snapper 7029538

SHAFT, FRONT DRIVE

Note: (1650A only - see "Rear Axle & Drive Shaft" illustration and parts list for 1650 models)

$

$

Currently unavailable

31

Snapper 7027502

COUPLING, SHAFT

$

$

Not available

32

Snapper 7012899

RING, RETAINING

$2.99

$

In Stock, only 1 left!

0

33

Snapper 7090589

COTTER-PIN, 3/32 x 3/4
(Superseded to 7090589YP)

$4.99

$

In Stock, only 1 left!

0

34

Snapper 7029536

SHAFT, REAR P.T.O. DRIVE
(Superseded to 7029536YP)

$279.99

$

Usually ships in 2-12 days

0

35

Snapper 7049843

BRACKET, DRIVE SHAFT

$

$

Currently unavailable

36

Snapper 7012743

PIN, CLEVIS

$

$

Currently unavailable

37

Snapper 7091597

COTTER-PIN, 3/32 x 3/4
(Superseded to 703312)

Note: Was 90037

$3.99

$

In Stock, Qty 20+

0

38

Snapper 7012742

NUT, 3/8C - SPECIAL

$

$

Not available

39

Snapper 7090122

WASHER, 3/8" Flat
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

40

Snapper 7018311

SPRING, ROD GUIDE

$4.49

$

Usually ships in 2-12 days

0

41

Snapper 7090250

WASHER, 1/2" FLAT
(Superseded to 704123)

$4.49

$

In Stock, only 3 left!

0

42

Snapper 7012744

RING, RETAINING

$

$

Not available

43

Snapper 7012855

WASHER, 5/8 x 1 x .020

$

$

Currently unavailable

44

Snapper 7013892

ROD GUIDE ASSEMBLY

Note: Was 47750

$

$

Not available

45

Snapper 7091619

NUT, 3/8C HEX FLANGE LOCK
(Superseded to 703333)

Note: Was 90613

$4.99

$

In Stock, Qty 20+

0

46

Snapper 7091601

NUT, 5/16C HEX FLANGE LOCK
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0

47

Snapper 7021805

SPACER, LEVER TO BRACKET

$

$

Currently unavailable

48

Snapper 7090584

BOLT, 1/4C x 1/2 HEX FLANGE LOCK
(Superseded to 7090584YP)

$3.99

$

Usually ships in 2-12 days

0

49

Snapper 90682

SCREW, 1/4C x 7/8 FLAT HEAD

$

$

Currently unavailable

50

Snapper 7090607

BOLT, 5/16C x 7/8 HEX FLANGE LOCK

$

$

Currently unavailable

51

Snapper 7090620

BOLT, 3/8C x 3/4 HEX FLANGE LOCK

$

$

Not available

52

Snapper 7012858

WASHER, 5/8 x 1-1/4 x .010

$

$

Currently unavailable

53

Snapper 7091328

BOLT, 3/8C x 1-1/4 HEX FLANGE LOCK
(Superseded to 703871)

Note: Was 90587

$4.99

$

Usually ships in 2-12 days

0

54

Snapper 7091584

NUT, 1/4C HEX FLANGE LOCK
(Superseded to 703233)

Note: Was 90583

$4.49

$

In Stock, Qty 5

0

55

Snapper 7091576

NUT, 1/4C HEX
(Superseded to 703127)

Note: Was 90063

$3.49

$

In Stock, Qty 20+

0

56

Snapper 7090680

BOLT, 1/2-13 x 3/4 HEX FLANGE LOCK

$3.49

$

In Stock, only 4 left!

0

57

Snapper 7032030

WASHER, 3/8 x 1-1/4 x 1/8
(Superseded to 7032030SM)

$4.49

$

In Stock, only 1 left!

0
