1650 (80424) - Snapper Garden Tractor, 16hp Hydraulic Cylinder - Rear Lift (Type A - Benton) Parts Diagram

Garden Tractor, 16hp

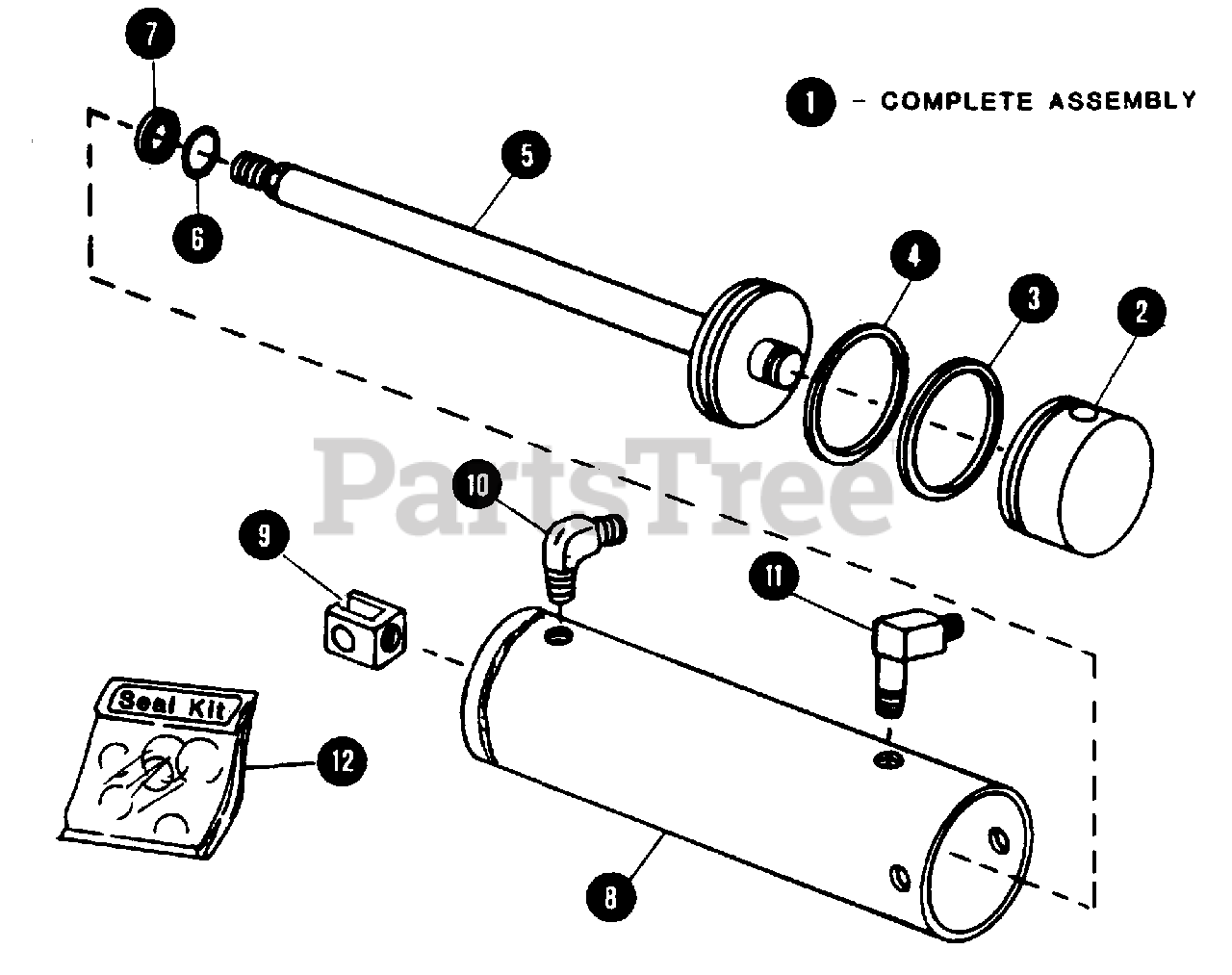

Hydraulic Cylinder - Rear Lift (Type A - Benton) Parts Diagram

  • Title

1

Snapper 7019611

CYLINDER, REAR LIFT ASSEMBLY

Note: (INCLUDES ITEMS 2 THRU 8)

$

$

Currently unavailable

2

Snapper 7019611

HEAD, CYLINDER

Note: Was 13835

$

$

Currently unavailable

3

PACKING, CYLINDER HEAD

Note: (PART OF SEAL KIT ITEM 12)

$

$

Not available

4

SEAL, PISTON

Note: (PART OF SEAL KIT ITEM 12)

$

$

Not available

5

Snapper 13832

PISTON-ROD ASSEMBLY

$

$

Currently unavailable

6

O-RING, PISTON ROD

Note: (PART OF SEAL KIT ITEM 12)

$

$

Not available

7

RING, PISTON ROD BACK-UP

Note: (PART OF SEAL KIT ITEM 12)

$

$

Not available

8

Snapper 13053

TUBE, CYLINDER

$

$

Currently unavailable

9

Snapper 27583

FITTING, PISTON ROD END

$

$

Currently unavailable

10

Snapper 12754

ELBOW, 1/4-18 NPTF x 9/16-18 NF - 90°.

$

$

Currently unavailable

11

Snapper 18364

ELBOW, 1/4-18 NPTF x 9/16-18 - 90° (LONG)

$

$

Currently unavailable

12

Snapper 7013915

KIT, SEAL REPLACEMENT
(Superseded to 7013915YP)

Note: (INCLUDES ITEMS 3, 4, 6, 7)

$

$

Not available
