1650 (80424) - Snapper Garden Tractor, 16hp Hydraulic Cylinder - Mid-Mount (Type B - Victor) Parts Diagram

Garden Tractor, 16hp

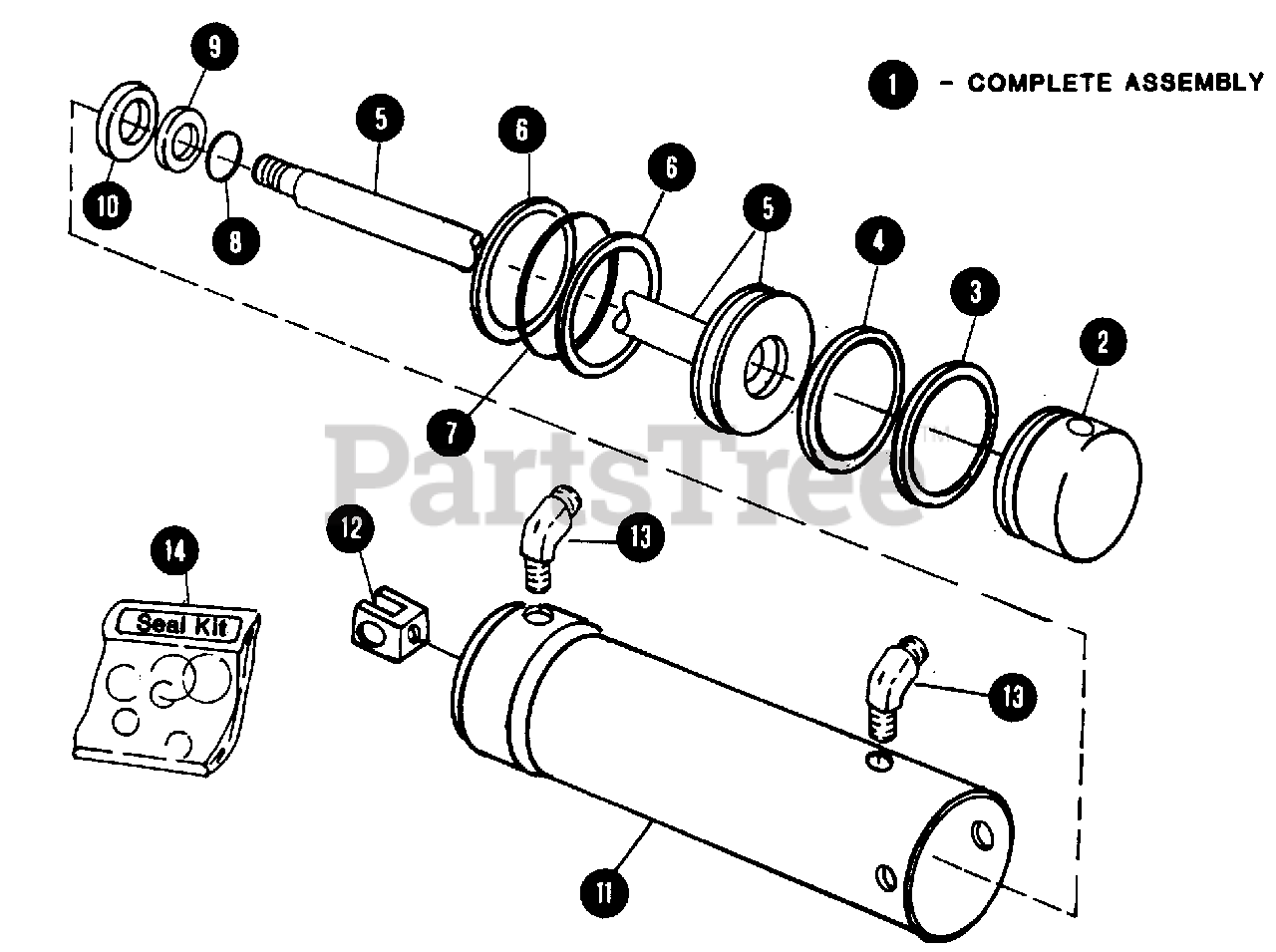

Hydraulic Cylinder - Mid-Mount (Type B - Victor) Parts Diagram

  • Title

1

Snapper 7019565

CYLINDER, REAR LIFT ASSEMBLY

Note: (INCLUDES ITEMS 2-12)

$

$

Currently unavailable

2

Snapper 13909

HEAD, CYLINDER

$

$

Currently unavailable

3

WASHER, HEAD O-RING BACK-UP

Note: (PART OF SEAL KIT ITEM 14)

$

$

Not available

4

O-RING, CYLINDER HEAD

Note: (PART OF SEAL KIT ITEM 14)

$

$

Not available

5

Snapper 13910

PISTON-ROD ASSEMBLY

$

$

Currently unavailable

6

WASHER, PISTON O-RING BACK-UP

Note: (PART OF SEAL KIT ITEM 14)

$

$

Not available

7

O-RING, PISTON

Note: (PART OF SEAL KIT ITEM 14)

$

$

Not available

8

O-RING, PISTON ROD SEAL

Note: (PART OF SEAL KIT ITEM 14)

$

$

Not available

9

WASHER SEAL O-RING BACK-UP

Note: (PART OF SEAL KIT ITEM 14)

$

$

Not available

10

WIPER, PISTON ROD

Note: (PART OF SEAL KIT ITEM 14)

$

$

Not available

11

Snapper 7019565

TUBE CYLINDER

Note: Was 13911

$

$

Currently unavailable

12

Snapper 13836

FITTING, PISTON ROD END

$

$

Currently unavailable

13

Snapper 7012785

ELBOW, 1/4 P.T. - 45°.

$

$

Currently unavailable

14

Snapper 13912

KIT, SEAL REPLACEMENT

Note: (INCLUDES ITEMS 3, 4, 6-10)

$

$

Currently unavailable
