1650 (80424) - Snapper Garden Tractor, 16hp Controls - Transmission & Brake Parts Diagram

Garden Tractor, 16hp

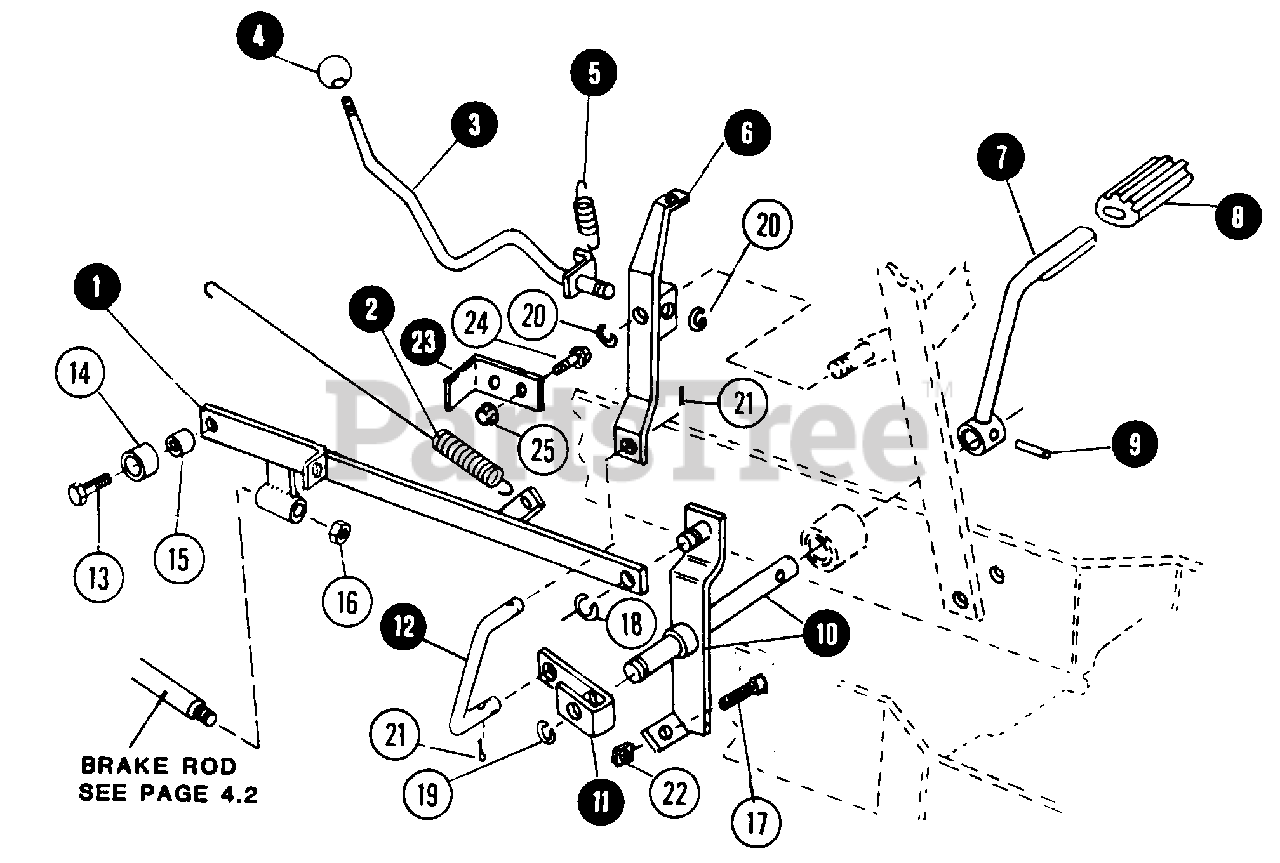

Controls - Transmission & Brake Parts Diagram

  • Title
1

Snapper 7049663

STRAP BRAKE AND SELECTOR - ASSEMBLY

$

$

Currently unavailable

2

Snapper 7018325

SPRING, STRAP RETURN
(Superseded to 7018325YP)

$9.49

$

Usually ships in 2-12 days

0

3

Snapper 7049593

LEVER, SPEED SELECTOR SHIFT
(Superseded to 7049593YP)

$62.99

$

Usually ships in 2-12 days

0

4

Snapper 7012659

KNOB, SHIFT LEVER
(Superseded to 7012659SM)

$

$

Not available

5

Snapper 18299

SPRING, SELECTOR LEVER TENSION

$

$

Currently unavailable

6

Snapper 49605

LEVER, SELECTOR

$

$

Currently unavailable

7

Snapper 47749

PEDAL, PARKING BRAKE
(Superseded to 5047749B)

$

$

Currently unavailable

8

Snapper 7012661

PAD, PEDAL
(Superseded to 7012661YP)

$

$

Not available

9

Snapper 12701

PIN, GROOVE (1/4 x 1-1/4)

$

$

Currently unavailable

10

Snapper 7049690

SHAFT, PEDAL

Note: Was 49606

$

$

Currently unavailable

11

Snapper 37839

LINK, PEDAL SHAFT SELECTOR

$

$

Currently unavailable

12

Snapper 18324

LINK, SELECTOR

$

$

Currently unavailable

13

Snapper 7090580

BOLT, 1/4C x 3/4 HEX HEAD

$

$

Currently unavailable

14

Snapper 27540

ROLLER, NEUTRAL RETURN

$

$

Currently unavailable

15

Snapper 7027541

SPACER, STEEL

$

$

Not available

16

Snapper 7090194

NUT, 5/16C HEX LOCK

$

$

Currently unavailable

17

Snapper 12775

SCREW, SELECTOR LINK ADJUSTER

$

$

Currently unavailable

18

Snapper 12735

RING, RETAINING

Note: (For 5/16" shaft)

$

$

Currently unavailable

19

Snapper 7012696

RING, RETAINING

Note: (For 1/2" shaft)

$

$

Currently unavailable

20

Snapper 7012703

RING, RETAINING

Note: (For 3/8" shaft)

$

$

Not available

21

Snapper 7091598

COTTER-PIN, 1/8 x 3/4
(Superseded to 703958)

Note: Was 90365

$4.49

$

In Stock, only 4 left!

0

22

Snapper 7091511

NUT, 5/16C MACHINE SCREW
(Superseded to 7091511SM)

Note: Was 90628

$3.49

$

In Stock, Qty 20+

0

23

Snapper 12948

ACTIVATOR, SHIFT INTERLOCK SWITCH

$

$

Currently unavailable

24

Snapper 7090584

BOLT, 1/4-20 x 1/2 FLANGE LOCK
(Superseded to 7090584YP)

$3.99

$

Usually ships in 2-12 days

0

25

Snapper 7091584

NUT, 1/4-20 FLANGE LOCK
(Superseded to 703233)

Note: Was 90583

$4.49

$

In Stock, Qty 6

0
