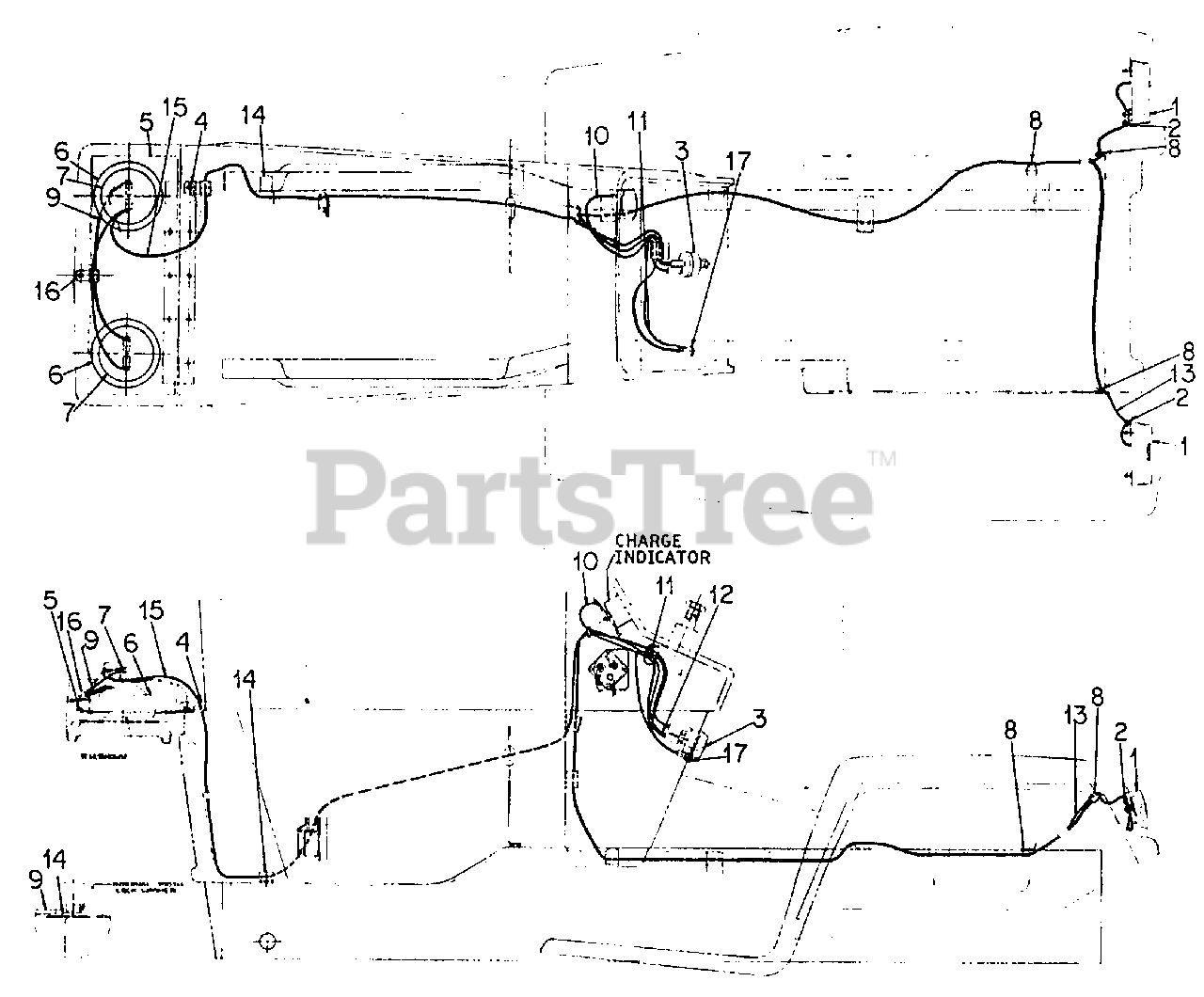

1650 (2050670U) - Cub Cadet Garden Tractor Electric Lighting Parts Diagram

Garden Tractor

Electric Lighting Parts Diagram

  • Title
1

Cub Cadet IH-545616-R1

Taillight Assy

$

$

Not available

$

$

Not available

Cub Cadet IH-9417863

Lamp, No. 1895
(Superseded to IH-9417863P)

$

$

Not available

$

$

Not available

Screw, 8-32 X 5/8 Pan Hd Mach

Note: (Common Hardware, Purchase Locally)

$

$

Not available

Washer, No. 8 Ext Tooth Lock

Note: (Common Hardware, Purchase Locally)

$

$

Not available

Cub Cadet 712-0142

Nut, 8-32 Znd Hex

$4.49

$

In Stock, Qty 10

0

2

Cub Cadet 726-3015

Clip, Taillight
(Superseded to 726-3008)

$4.99

$

Usually ships in 3-6 days

0

3

Cub Cadet IH-394771-R92

Switch, Lighting
(Superseded to IH-394771-R93)

$91.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 726-3025

Clip, Taillight Cable
(Superseded to 726-0272)

$7.49

$

Usually ships in 3-6 days

0

5

Cub Cadet IH-61419-C1

Panel, Headlight Mounting
(Superseded to IH-61419-C2)

$

$

Not available

6

Cub Cadet IH-107277-C1

Rim, Headlight
(Superseded to IH-107333-C2)

$

$

Not available

7

Cub Cadet 725-0222

Unit Assy, Headlight Sealed Beam
(Superseded to 925-0222)

$58.99

$

In Stock, only 4 left!

0

8

~NLA

Clip, Cable

$

$

Not available

9

Cub Cadet IH-545724-R1

Cable, Headlight to Ground

$

$

Not available

10

Cub Cadet IH-106714-C1

Cable, Charge Indicator to Fuse

$

$

Not available

11

Cub Cadet IH-106716-C1

Cable, Fuse to Lighting Switch

$

$

Not available

12

Cub Cadet IH-106278-C2

Cable, Lighting

$

$

Not available

13

Cub Cadet IH-545726-R1

Cable, Taillight

$

$

Currently unavailable

14

Cub Cadet 726-3015

Clip, Cable
(Superseded to 726-3008)

$4.99

$

Usually ships in 3-6 days

0

15

Cub Cadet IH-62316-C1

Cable Assy, Headlight

$

$

Not available

16

$

$

Currently unavailable

17

Cub Cadet 725-3011

Holder Assy, Fuse
(Superseded to 925-3011)

$21.99

$

In Stock, Qty 7

0

Cub Cadet 725-3012

Fuse, 10 Amp
(Superseded to 925-3012)

$6.49

$

In Stock, only 2 left!

0
