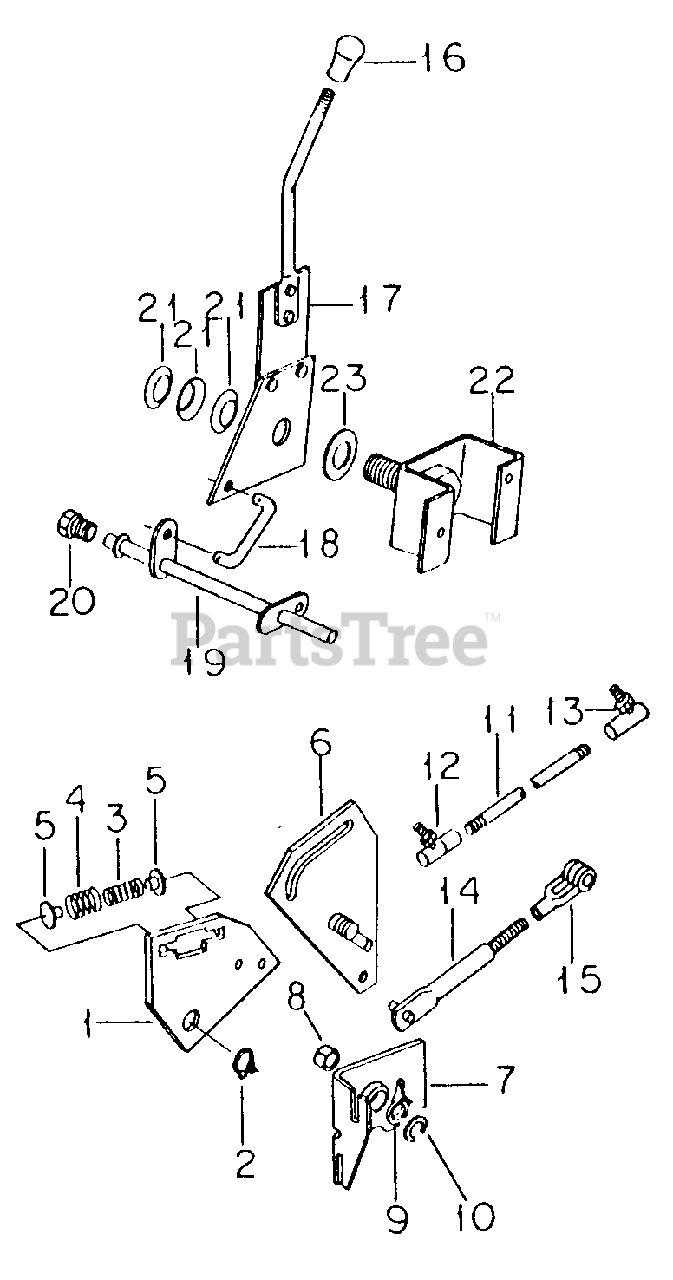

1650 (2050070U) - Cub Cadet Garden Tractor Transmission Controls Parts Diagram

Garden Tractor

Transmission Controls Parts Diagram

  • Title

1

Cub Cadet 703-0194

Plate Assy, Damper Spring
(Superseded to 903-0194)

$

$

Not available

2

Cub Cadet 716-0115

Ring, Damper Plate Retaining
(Superseded to 916-0115)

$

$

Not available

3

Cub Cadet 732-3012

Spring, Damper Light
(Superseded to 932-3012)

$6.99

$

In Stock, Qty 20+

0

4

Cub Cadet 732-3013

Spring, Damper Heavy
(Superseded to 932-3013)

$7.49

$

In Stock, Qty 20+

0

5

Cub Cadet 711-3033

Pin, Damper Spring Guide

$15.99

$

In Stock, Qty 20+

0

6

Cub Cadet IH-548057-R2

Cam Assy, Control

$

$

Not available

7

Cub Cadet IH-548055-R2

Bracket Assy, Cam Pivot

$

$

Not available

Screw, 3/8-16 X 1-1/2 Hex Hd Cap

Note: (Common Hardware, Purchase Locally)

$

$

Not available

~NLA

Washer, .406 X .968 X .083

$

$

Not available

8

Cub Cadet IH-394048-R1

Bushing, Cam Pivot

Note: (Serial No. IH-594715 & below)

$29.99

$

In Stock, only 4 left!

0

9

Cub Cadet IH-394049-R1

Washer, Cam Retaining
(Superseded to 936-0272)

$4.99

$

In Stock, Qty 20+

0

10

Cub Cadet 716-0865

Ring, Cam Retaining

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet IH-61126-C1

Stud, Connecting

$

$

Not available

12

Cub Cadet 723-3011

Joint, 5/16-24 X 1-1/2 C-Z RH Thd Ball
(Superseded to 923-3011)

$37.99

$

In Stock, only 4 left!

0

Cub Cadet 736-0119

Nut, 5/16-24 Hex Jam
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

Cub Cadet 736-3008

Washer, 11/32 X 3/4 X 11 Ga C-Z
(Superseded to 936-3008)

$6.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 723-3012

Joint, 5/16-24 C-Z Ball
(Superseded to 923-3012)

$42.99

$

In Stock, only 4 left!

0

Cub Cadet 712-0237

Nut, 5/16-24 Hex Nylon Insert

$4.99

$

In Stock, only 4 left!

0

14

Cub Cadet IH-545513-R2

Rod Assy, Control

$

$

Not available

Cub Cadet 712-0237

Nut, 5/16-24 Hex Nylon Insert

$4.99

$

In Stock, only 4 left!

0

15

Cub Cadet 719-3018

Clevis, 5/16 Adj Rod End Pin

$43.99

$

Usually ships in 3-6 days

0

Cub Cadet 711-3060

Pin, 5/16 Rod End

$

$

Not available

Pin, 3/32 X 1/2 Cotter

Note: (Common Hardware, Purchase Locally)

$

$

Not available

Nut, 5/16-24 Hex Jam

Note: (Common Hardware, Purchase Locally)

$

$

Not available

16

Cub Cadet 720-3000

Knob, Control
(Superseded to 920-3000)

$11.99

$

In Stock, only 3 left!

0

17

Cub Cadet IH-61464-C2

Handle Assy, Control

$

$

Not available

18

Cub Cadet IH-61429-C3

Link, Connecting

$

$

Not available

Nut, 5/16-24 Cdp Hex

Note: (Common Hardware, Purchase Locally)

$

$

Not available

19

Cub Cadet IH-106562-C2

Rockshaft Assy, Control

$

$

Not available

~NLA

Washer, .469 X .922 X .065

$

$

Not available

20

Cub Cadet 710-3033

Bearing, Rockshaft

$

$

Not available

Nut, 3/4-16 Hex Jam

Note: (Common Hardware, Purchase Locally)

$

$

Not available

21

Cub Cadet 736-3035

Washer, Belleville Spring

$

$

Not available

Cub Cadet 712-3021

Nut, 3/4-16 Hex Lock
(Superseded to 912-3021)

$

$

Not available

22

~NLA

Bracket Assy, Control

$

$

Not available

Screw, 1/4-20 X 1/2 Phc Hex Hd Cap

Note: (Common Hardware, Purchase Locally)

$

$

Not available

23

Cub Cadet 723-3019

Washer, Friction

$

$

Not available
