1650 (2050067U) - Cub Cadet Garden Tractor Hydraulic Lift Rockshaft & Connections Parts Diagram

Garden Tractor

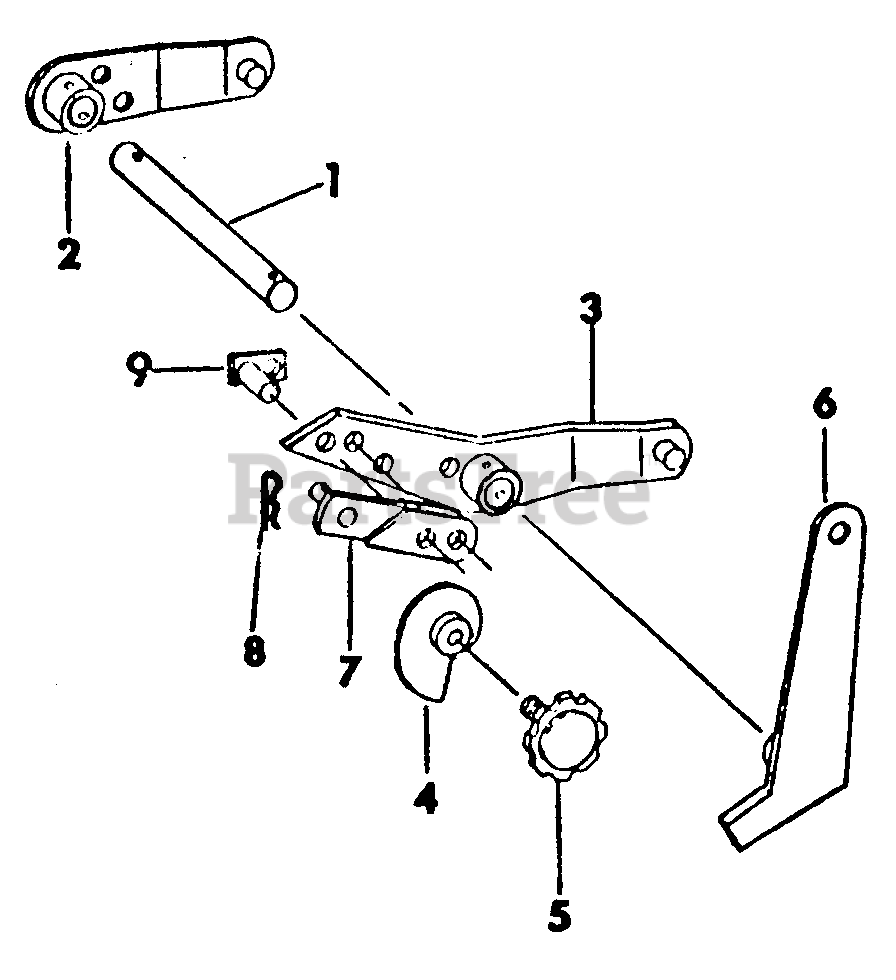

Hydraulic Lift Rockshaft & Connections Parts Diagram

  • Title

1

Cub Cadet IH-544194-R1

Rockshaft

$

$

Not available

2

Cub Cadet IH-544195-R1

Arm Assy, Lift LH

$

$

Not available

Cub Cadet 715-3002

Pin, 5/16 X 1-1/2 Coiled Spring

$8.99

$

Usually ships in 3-6 days

0

3

Cub Cadet IH-545627-R1

Arm Assy, Lift RH

$

$

Not available

Cub Cadet 715-3002

Pin, 5/16 X 1-1/2 Coiled Spring

$8.99

$

Usually ships in 3-6 days

0

4

Cub Cadet IH-544202-R2

Cam Assy, Lift Handle Stop

$

$

Currently unavailable

Cub Cadet IH-178374

Washer, 17/32 X 1-1/8 X 18 Ga C-Z

$

$

Currently unavailable

5

Cub Cadet IH-544205-R1

Knob, Torque

$

$

Not available

6

Cub Cadet IH-548048-R1

Plate Assy, Rockshaft

$

$

Not available

Cub Cadet 715-3009

Pin, 5/16 X 2 Hv Coiled Spring

$9.99

$

In Stock, only 1 left!

0

7

Cub Cadet IH-548046-R1

Clevis Assy, Hydraulic Lift

$

$

Currently unavailable

Pin, 1/2 X 1-3/16 Std Hd

Note: (Common Hardware, Purchase Locally)

$

$

Not available

Pin, 3/16 X 7/8 Cot

Note: (Common Hardware, Purchase Locally)

$

$

Not available

Cub Cadet 736-0272

Washer, 17/32 X 1-1/16 X 16 Ga

$4.99

$

In Stock, Qty 20+

0

8

Cub Cadet IH-475579-R1

Pin, Quick Attachable Cot
(Superseded to 714-3020)

$4.49

$

Usually ships in 3-6 days

0

9

Cub Cadet IH-545633-R1

Pin, Float Lockout

$

$

Not available
