165-SUB-11 - Troy-Bilt Engine 165-SUB-11 Flywheel & Blower Housing Parts Diagram

Engine

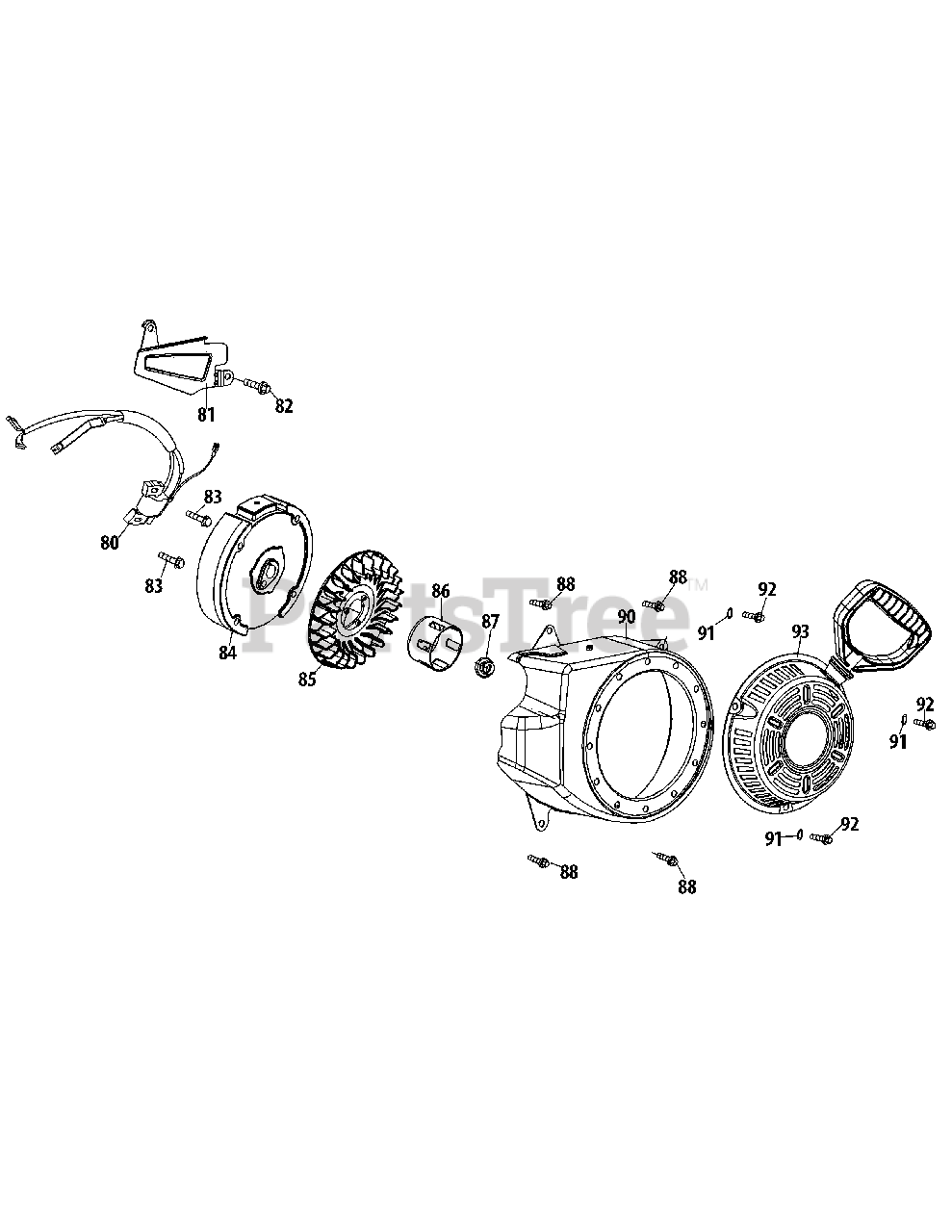

165-SUB-11 Flywheel & Blower Housing Parts Diagram

  • Title

80

Troy-Bilt 951-10646

Ignition Coil Assembly
(Superseded to 951-10646A)

$105.99

$

Usually ships in 3-6 days

0

81

Troy-Bilt 951-11110

Air Flow Shield

$4.49

$

Usually ships in 3-6 days

0

82

Troy-Bilt 710-04940

Bolt M6×10

$5.49

$

In Stock, only 3 left!

0

83

Troy-Bilt 710-04919

Bolt M6×25

$4.49

$

Usually ships in 3-6 days

0

84

Troy-Bilt 951-10805

Flywheel

$133.99

$

Usually ships in 3-6 days

0

85

Troy-Bilt 951-10909

Fan, Cooling
(Superseded to 951-10934)

$23.99

$

Usually ships in 3-6 days

0

86

Troy-Bilt 951-10911

Pulley, Starter

$17.99

$

In Stock, only 1 left!

0

87

Troy-Bilt 712-04209

Nut, Special, M14×1.5
(Superseded to 712-04287)

$6.99

$

In Stock, only 1 left!

0

88

Troy-Bilt 710-04915

Bolt M6×12

$4.49

$

In Stock, Qty 19

0

90

Troy-Bilt 951-11509

Blower Housing

$

$

Not available

91

Troy-Bilt 736-04455

Gasket 6
(Superseded to 736-04455B)

$6.99

$

Usually ships in 3-6 days

0

92

Troy-Bilt 710-04974

Bolt M6×10

$6.99

$

In Stock, only 2 left!

0

93

Troy-Bilt 951-10658

Recoil Starter
(Superseded to 951-14151)

$85.99

$

In Stock, Qty 20+

0

93

Troy-Bilt 731-05696

Recoil Starter Handle

$16.99

$

In Stock, only 2 left!

0
