165-SUB-11 - Cub Cadet Engine 165-SUB-11 Crankcase Parts Diagram

Engine

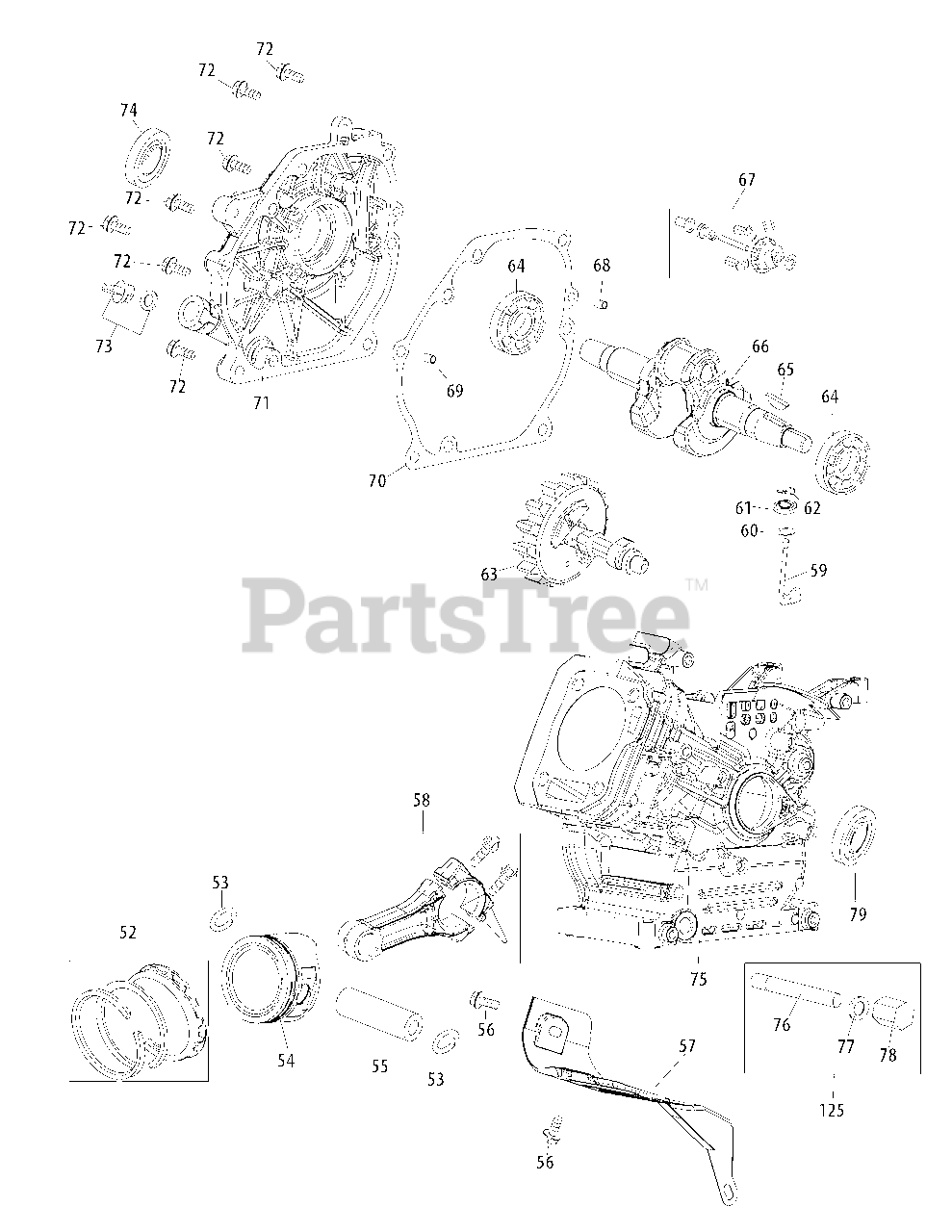

165-SUB-11 Crankcase Parts Diagram

  • Title

52

Cub Cadet 951-11688

Piston Ring Set

$19.99

$

In Stock, only 3 left!

0

53

Cub Cadet 951-11632

Piston Pin Snap Ring

$4.49

$

Usually ships in 3-6 days

0

54

Cub Cadet 951-11900

Piston

$34.99

$

In Stock, only 1 left!

0

55

Cub Cadet 951-11901

Piston Pin

$7.99

$

Usually ships in 3-6 days

0

56

Cub Cadet 710-04915

Bolt M6×12

$4.49

$

In Stock, Qty 20+

0

57

Cub Cadet 951-11113

Air Shield

$9.49

$

Usually ships in 3-6 days

0

58

Cub Cadet 951-11573

Connecting Rod Assembly
(Superseded to 751P11573A)

$10.99

$

In Stock, Qty 9

0

59

Cub Cadet 951-11356

Governor Arm Shaft
(Superseded to 951-14053)

$15.99

$

Usually ships in 3-6 days

0

60

Cub Cadet 736-04461

Washer 5.2×1.9

$3.99

$

Usually ships in 3-6 days

0

61

Cub Cadet 951-11902

Governor Seal
(Superseded to 951-11902A)

$3.99

$

In Stock, only 2 left!

0

62

Cub Cadet 714-04074

Cotter Pin
(Superseded to 714-04078)

$4.49

$

In Stock, only 1 left!

0

63

Cub Cadet 951-11575

Camshaft Assy.

$65.99

$

Usually ships in 3-6 days

0

64

Cub Cadet 951-11369

Radial Ball Bearing, 6205

$34.99

$

Usually ships in 3-6 days

0

65

Cub Cadet 951-10307

Woodruff Key
(Superseded to 751P10307A)

$2.49

$

In Stock, Qty 10

0

66

Cub Cadet 951-11247A

Crankshaft Kit

Note: (Incl.66,64,65,74,79)

$136.99

$

Usually ships in 3-6 days

0

67

Cub Cadet 951-11576

Governor Gear/Shaft Assembly
(Superseded to 751P11576A)

$3.49

$

Usually ships in 3-6 days

0

68

Cub Cadet 715-04092

Dowel Pin 7×14
(Superseded to 715-04096A)

$4.49

$

Usually ships in 3-6 days

0

69

Cub Cadet 715-04089

Dowel Pin 9×14

$3.99

$

Usually ships in 3-6 days

0

70

Cub Cadet 951-11371

Crankcase Cover Gasket
(Superseded to 951-11371A)

$3.99

$

In Stock, Qty 20+

0

71

Cub Cadet 951-12125

Cover Comp, Left Crankcase

$115.99

$

Usually ships in 3-6 days

0

72

Cub Cadet 710-04932

Bolt M8×32

$4.49

$

Usually ships in 3-6 days

0

73

Cub Cadet 951-11283

Oil Fill Plug Assembly

$6.99

$

In Stock, only 1 left!

0

74

Cub Cadet 951-11368

Oil Seal, 25×41.25×6
(Superseded to 751P11368A)

$3.49

$

In Stock, Qty 12

0

75

Cub Cadet 951-11246

Crankcase Cover Kit
(Superseded to 951-11248A)

Note: (Incl.64,70-74)

$200.99

$

In Stock, only 1 left!

0

76

Cub Cadet 951-11350

Oil Drain Pipe Assy.

$9.49

$

Usually ships in 3-6 days

0

77

Cub Cadet 736-04440

Washer 10×16×1.5
(Superseded to 736-04440A)

$6.99

$

In Stock, only 2 left!

0

78

Cub Cadet 710-04906

Oil Drain Plug

$6.99

$

In Stock, Qty 13

0

79

Cub Cadet 951-11370

Oil Seal 25×41.25×6
(Superseded to 751P11370A)

$2.99

$

In Stock, Qty 12

0

125

Cub Cadet 951-10641

Oil Drain Assembly

$12.99

$

In Stock, only 2 left!

0

Cub Cadet 951-11248A

Crankcase Kit

Note: Not shown (Incl.61,64,74,75,79)

$200.99

$

In Stock, only 1 left!

0

Cub Cadet 951-10661B

Gasket Kit - External

Note: Not shown (Incl.4,21,29-31,34,77)

$32.99

$

In Stock, Qty 5

0

Cub Cadet 951-11061A

Gasket Kit - Complete

Note: Not shown (Incl.4,21,29-31,34,46,60,61,70,74,77,79)

$44.99

$

In Stock, only 2 left!

0

Cub Cadet 951-11062B

Short Block

Note: Not shown (Incl.4,21,29,30,46,48,49,52-55,58-72,74-79)

$380.99

$

Usually ships in 3-6 days

0

Cub Cadet 952Z165-SUB-11

Complete Engine
(Superseded to 952Z165-WU)

Note: Not shown

$683.99

$

Usually ships in 3-6 days

0
