165-SU - Cub Cadet Engine Engine Assembly 165-SU Parts Diagram

Engine

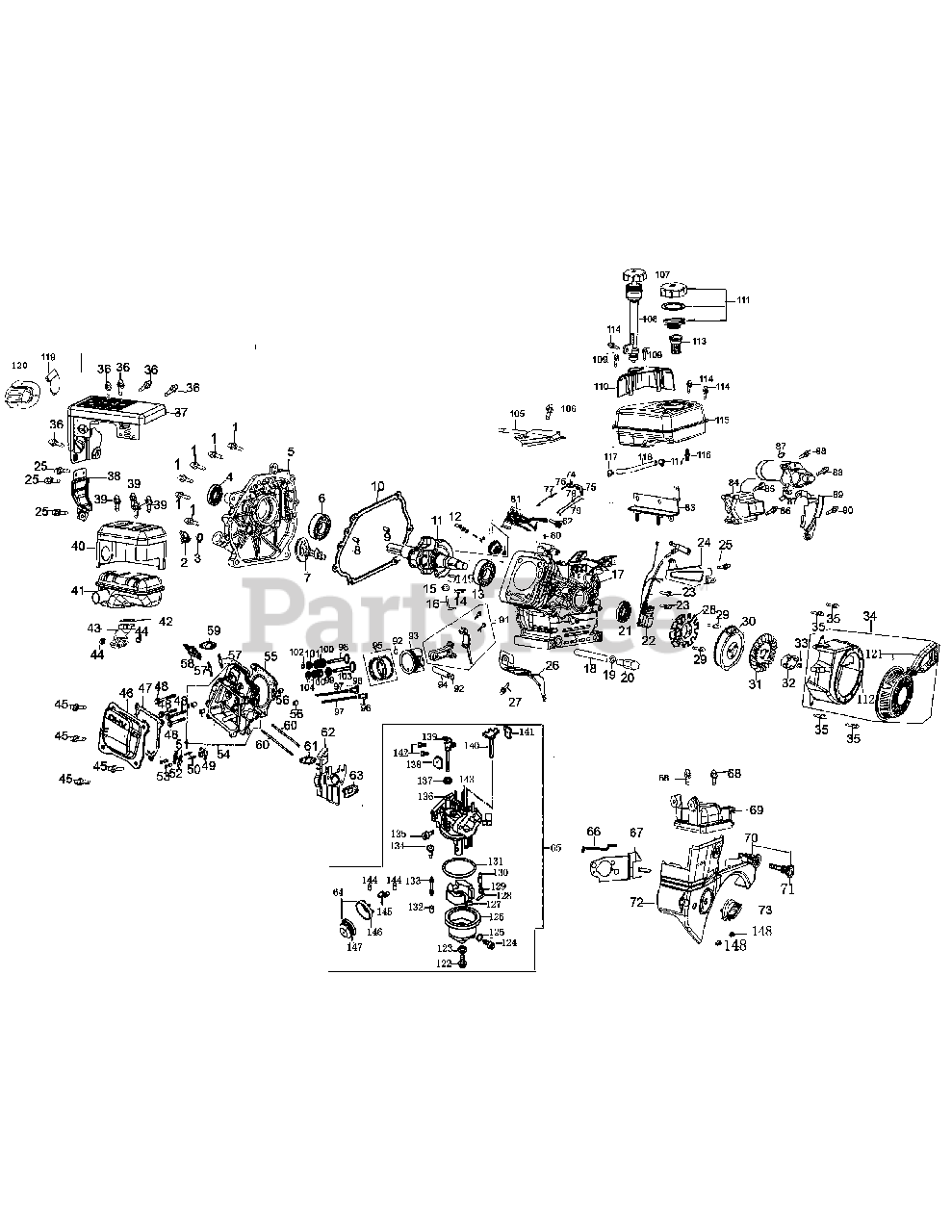

Engine Assembly 165-SU Parts Diagram

  • Title

1

Bolt

Note: Furnish 951-10724 Short Block Assy

$

$

Not available

2

Cub Cadet 951-10669

Oil Fill Plug Assembly

Note: Furnish 951-10724 Short Block Assy

$6.49

$

Usually ships in 3-6 days

0

2

Cub Cadet 951-10669

Oil Fill Plug Assembly

Note: Furnish 951-10724 Short Block Assy

$6.49

$

Usually ships in 3-6 days

0

3

O-ring

Note: Furnish 951-10724 Short Block Assy

$

$

Not available

4

Oil seal, 25 × 41.25 × 6

Note: Furnish 951-10724 Short Block Assy

$

$

Not available

4

Oil seal, 25 × 41.25 × 6

Note: Furnish 951-10723 Gasket - Complete

$

$

Not available

5

Crankcase cover

Note: Furnish 951-10724 Short Block Assy

$

$

Not available

6

Radial Ball Bearing

Note: Furnish 951-10724 Short Block Assy

$

$

Not available

7

Camshaft Assembly

Note: Furnish 951-10724 Short Block Assy

$

$

Not available

8

Dowel Pin, 9 × 14

Note: Furnish 951-10724 Short Block Assy

$

$

Not available

9

Dowel Pin, 7 × 14

Note: Furnish 951-10724 Short Block Assy

$

$

Not available

10

Crankcase Cover Gasket

Note: Furnish 951-10724 Short Block Assy

$

$

Not available

10

Crankcase Cover Gasket

Note: Furnish 951-10723 Gasket - Complete

$

$

Not available

11

Crankshaft Complete

Note: Furnish 951-10724 Short Block Assy

$

$

Not available

12

Governor Kit

Note: Furnish 951-10724 Short Block Assy

$

$

Not available

13

Radial Ball Bearing

Note: Furnish 951-10724 Short Block Assy

$

$

Not available

14

Pin Lock

Note: Furnish 951-10724 Short Block Assy

$

$

Not available

15

O-ring, 5.2 × 1.9

Note: Furnish 951-10724 Short Block Assy

$

$

Not available

15

O-ring, 5.2 × 1.9

Note: Furnish 951-10723 Gasket - Complete

$

$

Not available

16

Governor Arm

Note: Furnish 951-10724 Short Block Assy

$

$

Not available

17

Crankcase

Note: Furnish 951-10724 Short Block Assy

$

$

Not available

18

Cub Cadet 951-10641

Oil-Draining Pipe

Note: Furnish 951-10724 Short Block Assy

$12.99

$

In Stock, only 2 left!

0

18

Cub Cadet 951-10641

Oil-Draining Pipe

Note: Furnish 951-10723 Gasket - Complete

$12.99

$

In Stock, only 2 left!

0

18

Cub Cadet 951-10641

Oil Drain Assembly

Note: (Incl. Ref No. 18-20)

$12.99

$

In Stock, only 2 left!

0

19

Washer, 10 × 16 × 1.5

Note: Furnish 951-10724 Short Block Assy

$

$

Not available

19

Washer, 10 × 16 × 1.5

Note: Furnish 951-10723 Gasket - Complete

$

$

Not available

20

Drain Bolt, 10 × 1.25

Note: Furnish 951-10724 Short Block Assy

$

$

Not available

20

Drain Bolt, 10 × 1.25

Note: Furnish 951-10723 Gasket - Complete

$

$

Not available

21

Oil Seal, 25 × 41.25 × 6

Note: Furnish 951-10724 Short Block Assy

$

$

Not available

21

Oil Seal, 25 × 41.25 × 6

Note: Furnish 951-10723 Gasket - Complete

$

$

Not available

22

Cub Cadet 951-10646

Ignition Module
(Superseded to 951-10646A)

Note: Electric Start Unit Only

$105.99

$

In Stock, only 3 left!

0

28

Cub Cadet 951-10719

Stator
(Superseded to 951-12050A)

Note: Electric Start Unit Only

$97.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 951-10805

Flywheel

$133.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 951-10909

Cooling Fan
(Superseded to 951-10934)

$23.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 951-10911

Starter Cup

$17.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 951-11012

Recoil Bolt
(Superseded to 710-04968)

$6.99

$

In Stock, only 3 left!

0

37

Cub Cadet 951-10642A

Muffler Shroud
(Superseded to 951-10642B)

$

$

Not available

40

Cub Cadet 951-10643

Muffler Shield
(Superseded to 908-05022)

$22.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 951-10644

Muffler Complete
(Superseded to 951-11282)

Note: (Incl. Ref No. 41 & 43)

$

$

Not available

42

Cub Cadet 951-10666

Gasket

Note: Furnish 951-10723 Gasket - Complete

$5.99

$

Usually ships in 3-6 days

0

42

Cub Cadet 951-10666

Gasket

$5.99

$

Usually ships in 3-6 days

0

47

Valve Cover Gasket

Note: Furnish 951-10722 Cylinder Head Assy

$

$

Not available

47

Valve Cover Gasket

Note: Furnish 951-10723 Gasket - Complete

$

$

Not available

47

Valve Cover Gasket

Note: Furnish 951-10952 Gasket Kit - External

$

$

Not available

49

Plate Push Rod Guide

Note: Furnish 951-10722 Cylinder Head Assy

$

$

Not available

50

Pivot Bolt

Note: Furnish 951-10722 Cylinder Head Assy

$

$

Not available

51

Rocker Arm

Note: Furnish 951-10722 Cylinder Head Assy

$

$

Not available

52

Valve Adjusting Nut

Note: Furnish 951-10722 Cylinder Head Assy

$

$

Not available

53

Pivot Locking Nut

Note: Furnish 951-10722 Cylinder Head Assy

$

$

Not available

54

Cylinder Head Complete

Note: Furnish 951-10722 Cylinder Head Assy

$

$

Not available

55

Cylinder Head Gasket

Note: Furnish 951-10724 Short Block Assy

$

$

Not available

55

Cylinder Head Gasket

Note: Furnish 951-10722 Cylinder Head Assy

$

$

Not available

55

Cylinder Head Gasket

Note: Furnish 951-10723 Gasket - Complete

$

$

Not available

56

Dowel Pin, 10 × 16

Note: Furnish 951-10724 Short Block Assy

$

$

Not available

57

Cub Cadet 951-10657

Muffler Stud Assembly, 8 × 34

$10.99

$

Usually ships in 3-6 days

0

58

Cub Cadet 951-10292

Spark Plug
(Superseded to 951-10292A)

$6.99

$

In Stock, Qty 20+

0

59

Gasket Muffler

Note: Furnish 951-10724 Short Block Assy

$

$

Not available

59

Gasket Muffler

Note: Furnish 951-10722 Cylinder Head Assy

$

$

Not available

59

Gaske tMuffler

Note: Furnish 951-10723 Gasket - Complete

$

$

Not available

59

Gasket Muffler

Note: Furnish 951-10952 Gasket Kit - External

$

$

Not available

61

Insulator Gasket Carburetor

Note: Furnish 951-10724 Short Block Assy

$

$

Not available

61

Carburetor Insulator Gasket

Note: Furnish 951-10723 Gasket - Complete

$

$

Not available

61

Carburetor Insulator Gasket

Note: Furnish 951-10952 Gasket Kit - External

$

$

Not available

62

Insulator Carburetor

Note: Furnish 951-10724 Short Block Assy

$

$

Not available

62

Carburetor Insulator

Note: Furnish 951-10723 Gasket - Complete

$

$

Not available

62

Carburetor Insulator

Note: Furnish 951-10952 Gasket Kit - External

$

$

Not available

63

Carburetor Gasket

Note: Furnish 951-10723 Gasket - Complete

$

$

Not available

63

Gasket Carburetor

Note: Furnish 951-10952 Gasket Kit - External

$

$

Not available

65

Cub Cadet 951-10974

Carburetor Assembly
(Superseded to 951-12705)

$100.99

$

In Stock, Qty 20+

0

66

Cub Cadet 951-10640

Choke Push Rod

$10.99

$

In Stock, Qty 6

0

69

Cub Cadet 951-10635

Air Filter Heating Pipe Cover

$16.99

$

In Stock, only 2 left!

0

70

Cub Cadet 951-10637

Key Switch

$14.99

$

In Stock, Qty 8

0

71

Cub Cadet 731-05632

Key
(Superseded to 951-10630)

$6.99

$

Usually ships in 3-6 days

0

72

Cub Cadet 951-10634

Shroud
(Superseded to 951-10634A)

$32.99

$

Usually ships in 3-6 days

0

73

Cub Cadet 951-10636

Choke Knob
(Superseded to 951-11284)

$7.49

$

In Stock, only 4 left!

0

77

Cub Cadet 951-10654

Spring Governor

$8.49

$

In Stock, Qty 20+

0

78

Cub Cadet 951-10664

Spring Throttle Return
(Superseded to 751P10664A)

$2.49

$

In Stock, only 1 left!

0

79

Cub Cadet 951-10665

Rod Governor
(Superseded to 751P10665A)

$1.99

$

In Stock, Qty 20+

0

81

Cub Cadet 951-10758

Throttle Control Assembly

$23.99

$

Usually ships in 3-6 days

0

82

Cub Cadet 951-10757

Throttle Control Knob
(Superseded to 951-11224)

$7.99

$

In Stock, only 4 left!

0

84

Cub Cadet 951-10645A

Electric Starter, 110v

Note: Electric Start Unit Only

$304.99

$

In Stock, only 1 left!

0

91

Connecting Rod Assembly

Note: Furnish 951-10724 Short Block Assy

$

$

Not available

92

Piston Pin Clip

Note: Furnish 951-10724 Short Block Assy

$

$

Not available

93

Piston

Note: Furnish 951-10724 Short Block Assy

$

$

Not available

94

Pin Piston

Note: Furnish 951-10724 Short Block Assy

$

$

Not available

97

Cub Cadet 951-10648

Push Rod

Note: Furnish 951-10723 Gasket - Complete

$17.99

$

In Stock, only 3 left!

0

97

Cub Cadet 951-10648

Push Rod Kit

$17.99

$

In Stock, only 3 left!

0

98

Cub Cadet 951-10647

Exhaust Valve
(Superseded to 951-10647A)

Note: Furnish 951-10722 Cylinder Head Assy

$64.99

$

Usually ships in 3-6 days

0

98

Cub Cadet 951-10647

Exhaust Valve
(Superseded to 951-10647A)

Note: Furnish 951-10723 Gasket - Complete

$64.99

$

Usually ships in 3-6 days

0

98

Cub Cadet 951-10647

Valve Kit
(Superseded to 951-10647A)

Note: (Incl. Ref No. 98 & 103)

$64.99

$

Usually ships in 3-6 days

0

99

Valve Seal

Note: Furnish 951-10722 Cylinder Head Assy

$

$

Not available

100

Spring Valve

Note: Furnish 951-10722 Cylinder Head Assy

$

$

Not available

101

Exhaust Valve Spring Retainer

Note: Furnish 951-10722 Cylinder Head Assy

$

$

Not available

102

Exhaust Valve Adjuster

Note: Furnish 951-10722 Cylinder Head Assy

$

$

Not available

103

Intake Valve

Note: Furnish 951-10722 Cylinder Head Assy

$

$

Not available

103

Intake Valve

Note: Furnish 951-10723 Gasket - Complete

$

$

Not available

104

Internal Valve Spring Retainer

Note: Furnish 951-10722 Cylinder Head Assy

$

$

Not available

107

Cub Cadet 951-10655

Dipstick
(Superseded to 631-05020AP)

$34.99

$

In Stock, only 1 left!

0

108

Cub Cadet 951-10656

Dipstick Base
(Superseded to 631-05020AP)

$34.99

$

In Stock, only 1 left!

0

110

Cub Cadet 951-10662

Dipstick Decoration Cover

$

$

Not available

111

Cub Cadet 951-10649

Fuel Tank Cap
(Superseded to 951-12533)

$23.99

$

In Stock, only 2 left!

0

112

Cub Cadet 951-10663A

Blower Housing
(Superseded to 951-12644)

$60.99

$

Usually ships in 3-6 days

0

113

Cub Cadet 951-10652

Fuel Filter

$9.49

$

In Stock, only 3 left!

0

115

Cub Cadet 951-10653A

Fuel Tank
(Superseded to 951-10653B)

$79.99

$

In Stock, Qty 11

0

116

Cub Cadet 951-10651

Nipple Fuel Tank

$15.99

$

In Stock, Qty 16

0

117

Cub Cadet 951-10650

Fuel Line Kit

Note: (Incl. Ref No. 117 & 118)

$28.99

$

In Stock, only 2 left!

0

121

Cub Cadet 951-10658

Recoil Starter Assembly
(Superseded to 951-14151)

$85.99

$

In Stock, Qty 20+

0

121

Cub Cadet 731-05696

Starter Handle

$16.99

$

In Stock, only 3 left!

0

122

Fuel Drain Plug

Note: Furnish 951-10974 Carburetor Assy

$

$

Not available

123

Fuel Cup Fixed Bolt Packing

Note: Furnish 951-10974 Carburetor Assy

$

$

Not available

124

Fuel Drain Plug

Note: Furnish 951-10974 Carburetor Assy

$

$

Not available

125

Fuel Drain Plug Gasket

Note: Furnish 951-10974 Carburetor Assy

$

$

Not available

126

Fuel Cup

Note: Furnish 951-10974 Carburetor Assy

$

$

Not available

127

Float

Note: Furnish 951-10974 Carburetor Assy

$

$

Not available

128

Floating Pin

Note: Furnish 951-10974 Carburetor Assy

$

$

Not available

129

Needle Valve Spring

Note: Furnish 951-10974 Carburetor Assy

$

$

Not available

130

Needle Valve

Note: Furnish 951-10974 Carburetor Assy

$

$

Not available

131

O-ring Packing

Note: Furnish 951-10974 Carburetor Assy

$

$

Not available

132

Main Jet

Note: Furnish 951-10974 Carburetor Assy

$

$

Not available

133

Main Nozzle

Note: Furnish 951-10974 Carburetor Assy

$

$

Not available

134

Idle Jet Assembly

Note: Furnish 951-10974 Carburetor Assy

$

$

Not available

135

Idle Speed Adjusting Screw

Note: Furnish 951-10974 Carburetor Assy

$

$

Not available

136

Carburetor Body

Note: Furnish 951-10974 Carburetor Assy

$

$

Not available

137

Fiber Seal

Note: Furnish 951-10974 Carburetor Assy

$

$

Not available

138

Choke Plate

Note: Furnish 951-10974 Carburetor Assy

$

$

Not available

139

Throttle Shaft

Note: Furnish 951-10974 Carburetor Assy

$

$

Not available

140

Choke Plate

Note: Furnish 951-10974 Carburetor Assy

$

$

Not available

141

Choke Shaft

Note: Furnish 951-10974 Carburetor Assy

$

$

Not available

142

Cross Screw

Note: Furnish 951-10974 Carburetor Assy

$

$

Not available

143

Position Spring

Note: Furnish 951-10974 Carburetor Assy

$

$

Not available

144

Clip

Note: Furnish 951-10974 Carburetor Assy

$

$

Not available

145

Fuel Hose

Note: Furnish 951-10974 Carburetor Assy

$

$

Not available

146

Primer Base

Note: Furnish 951-10974 Carburetor Assy

$

$

Not available

147

Cub Cadet 951-10639

Primer Bulb
(Superseded to 951-10639A)

Note: Furnish 951-10974 Carburetor Assy

$15.99

$

In Stock, Qty 20+

0

147

Cub Cadet 951-10639

Primer
(Superseded to 951-10639A)

$15.99

$

In Stock, Qty 20+

0

149

Cub Cadet 951-10307

Woodruff Key
(Superseded to 751P10307A)

$2.49

$

In Stock, Qty 10

0

Cub Cadet 951-10724

Short Block Assembly
(Superseded to 951-11062B)

Note: (Not shown)

$380.99

$

Usually ships in 3-6 days

0

Cub Cadet 951-10722A

Cylinder Head Assembly
(Superseded to 951-10722B)

Note: (Not shown)

$170.99

$

In Stock, only 1 left!

0

Cub Cadet 951-10723A

Gasket Kit - Complete

Note: (Not shown)

$40.99

$

Usually ships in 3-6 days

0

Cub Cadet 951-10661A

Gasket Kit - External
(Superseded to 951-10661B)

Note: (Not shown)

$32.99

$

In Stock, Qty 5

0

Cub Cadet 951-14050

Carburetor Repair Kit - HAUYI

Note: (Not shown)

$58.99

$

In Stock, Qty 7

0

Cub Cadet 951-12712

Carburetor Repair Kit - DENI

Note: (Not shown)

$58.99

$

In Stock, only 1 left!

0

Cub Cadet 952Z165-SU

Complete 165-SU Engine
(Superseded to 952Z165-WU)

Note: (Not shown)

$683.99

$

Usually ships in 3-6 days

0

Cub Cadet 952Z365-SUA

Complete 365-SUA Engine
(Superseded to 952Z670-WUB)

Note: Electric Start Unit, (not shown)

$887.99

$

Usually ships in 3-6 days

0
