165 RX - Husqvarna String Trimmer (1988-02) Starter Assembly Parts Diagram

String Trimmer

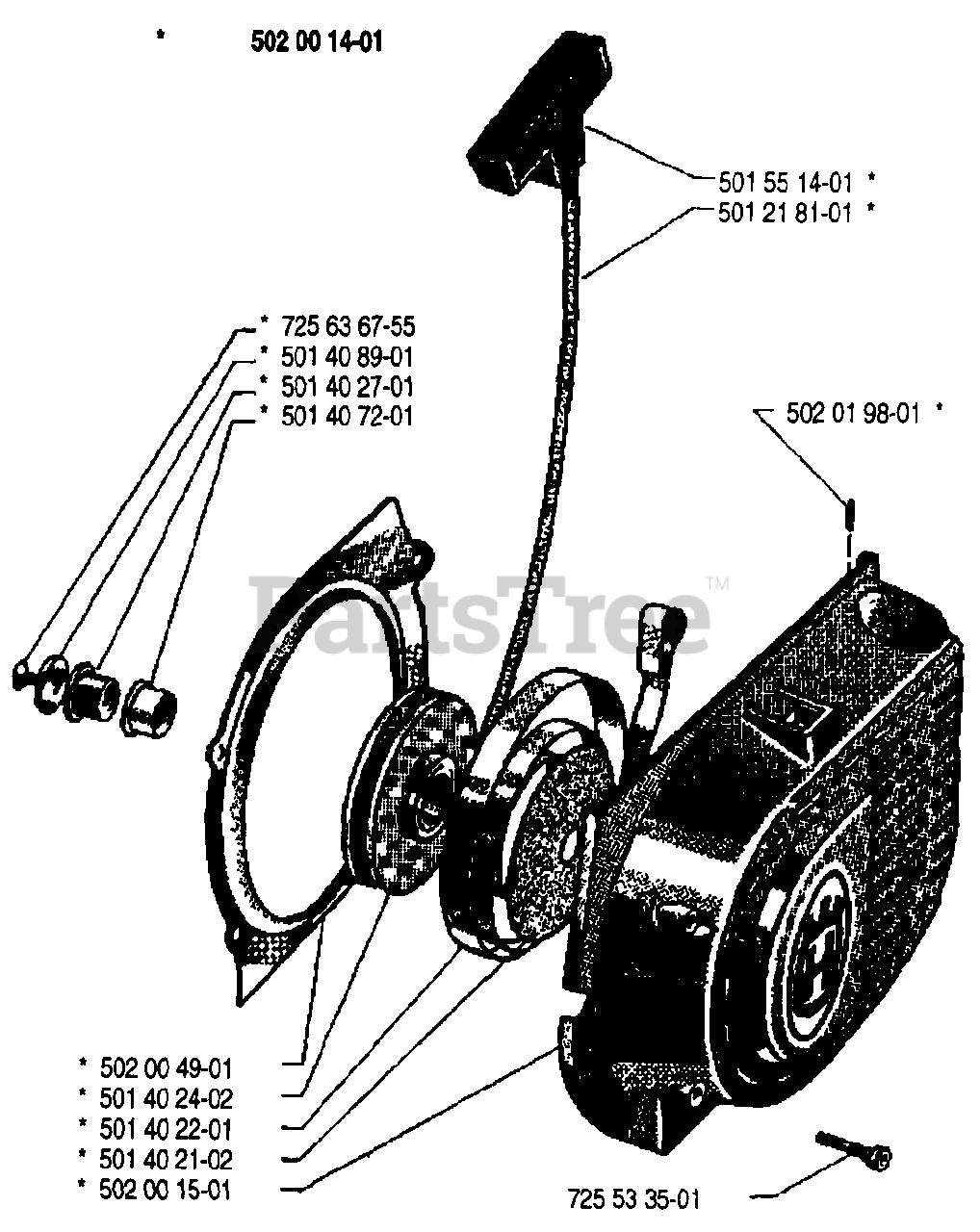

Starter Assembly Parts Diagram

  • Title
502001401

Husqvarna 502001401

STARTER ASS'Y NLA

$

$

Not available

501551401

Husqvarna 501551401

STARTING HANDLE
(Superseded to 503543901)

$11.99

$

In Stock, only 3 left!

0

501218101

Husqvarna 501218101

STARTER ROPE

$

$

Not available

502019801

$

$

Not available

725636755

Husqvarna 725636755

SCREW MF6S 6X14

$4.99

$

Usually ships in 3-10 days

0

501408901

$

$

Not available

501402701

Husqvarna 501402701

SHAFT
(Superseded to 537226101)

$56.99

$

Usually ships in 3-10 days

0

501407201

Husqvarna 501407201

BUSHING
(Superseded to 537226101)

$56.99

$

Usually ships in 3-10 days

0

502004901

Husqvarna 502004901

AIR CONDUCTOR

$6.91

$

Usually ships in 3-10 days

0

501402402

Husqvarna 501402402

STARTER PULLEY

$

$

Not available

501402201

Husqvarna 501402201

RECOIL SPRING

$

$

Not available

501402102

Husqvarna 501402102

DAMPING DISC

$20.11

$

Usually ships in 3-10 days

0

502001501

Husqvarna 502001501

STARTER HOUSING

$

$

Not available

725533501

Husqvarna 725533501

SCREW MCS 5X30
(Superseded to 725533555)

$3.49

$

In Stock, only 1 left!

0
