165 RX - Husqvarna String Trimmer (1987-09) General Assembly Parts Diagram

String Trimmer

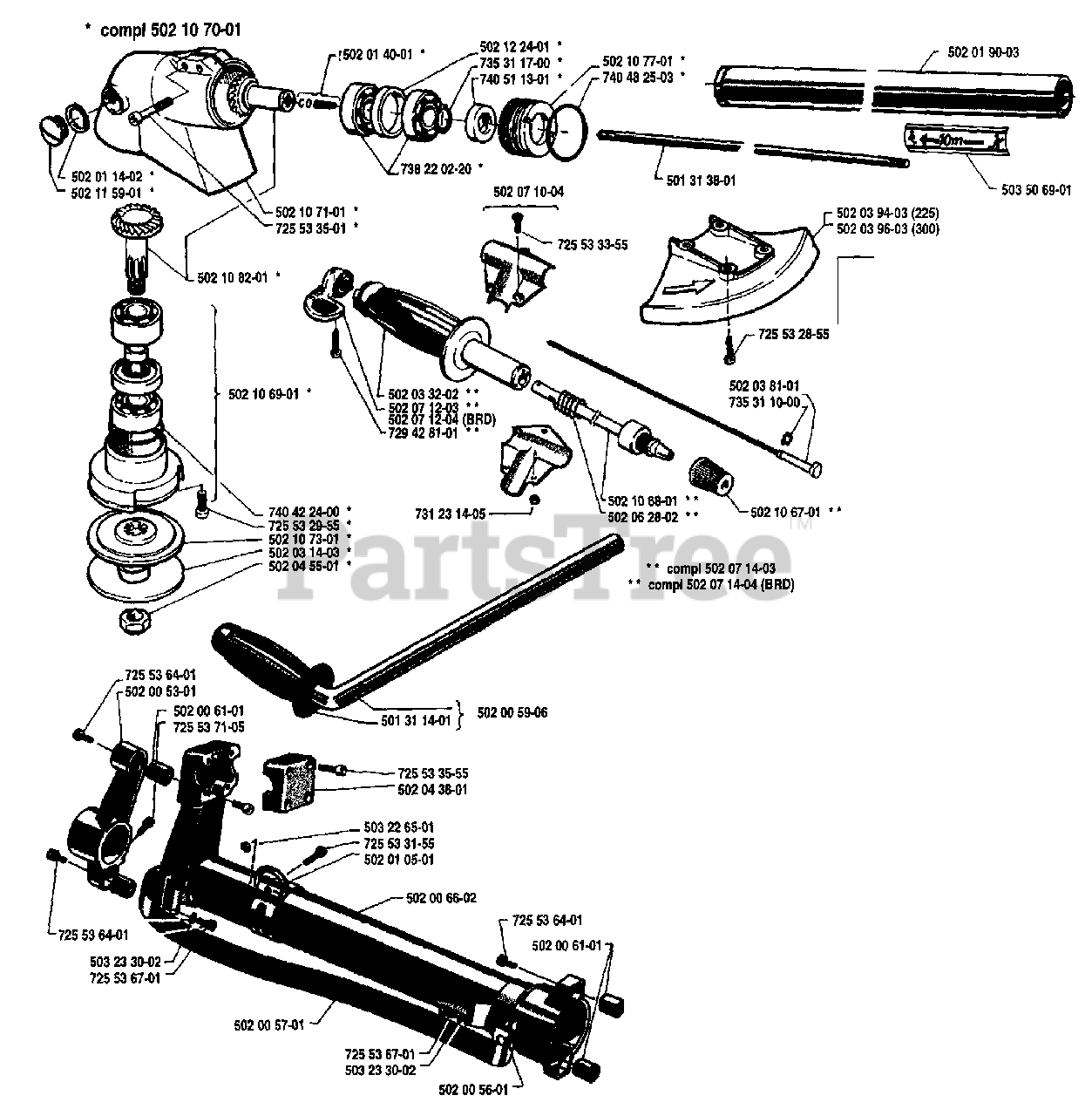

General Assembly Parts Diagram

  • Title
502107001

Husqvarna 502107001

BEVEL GEAR
(Superseded to 502107007)

$

$

Not available

502011402

Husqvarna 502011402

GASKET
(Superseded to 502286201)

$

$

Not available

502115901

Husqvarna 502115901

REPL BY 502 11 59-02
(Superseded to 502115902)

$21.99

$

Usually ships in 3-10 days

0

502107101

Husqvarna 502107101

GEAR HOUSING
(Superseded to 502107007)

$

$

Not available

725533501

Husqvarna 725533501

SCREW MCS 5X30
(Superseded to 725533555)

$3.49

$

In Stock, only 1 left!

0

502108201

Husqvarna 502108201

GEAR WHEELS SET
(Superseded to 502107007)

$

$

Not available

502014001

Husqvarna 502014001

SPRING SET NLA

$

$

Not available

502122401

$

$

Not available

735311700

Husqvarna 735311700

RETAINING RING SGA 15

$3.49

$

In Stock, Qty 7

0

740511301

Husqvarna 740511301

SEALING RING

$

$

Not available

738220220

Husqvarna 738220220

BEARING,39R
(Superseded to 738220215)

$

$

Not available

502071004

Husqvarna 502071004

HOLDER RIGHT
(Superseded to 502071005)

$

$

Not available

502107701

$

$

Not available

740482503

$

$

Not available

501313801

Husqvarna 501313801

SHAFT
(Superseded to 537014005)

$130.39

$

Usually ships in 3-10 days

0

725533355

Husqvarna 725533355

SCREW MC6S 5X25

$6.49

$

In Stock, Qty 17

0

502019003

Husqvarna 502019003

TUBE
(Superseded to 502252502)

$

$

Not available

502039403

Husqvarna 502039403

BLADE GUARD 225 MM
(Superseded to 574506702)

$48.99

$

In Stock, only 1 left!

0

502039603

Husqvarna 502039603

BLADE GUARD

$

$

Not available

725532855

Husqvarna 725532855

SCREW MC6S 5X14

$

$

Not available

502038101

$

$

Not available

735311000

Husqvarna 735311000

RETAINING RING SGA 8

$2.99

$

Usually ships in 3-10 days

0

502106801

$

$

Not available

502106901

Husqvarna 502106901

GEAR HOUSING COVER
(Superseded to 502107007)

$

$

Not available

502033202

Husqvarna 502033202

HANDLE RIGHT

$

$

Not available

502071203

Husqvarna 502071203

TRIGGER
(Superseded to 502033102)

$

$

Not available

502071204

Husqvarna 502071204

THROTTLE CONTROL NLA

$

$

Not available

729428101

$

$

Not available

731231405

Husqvarna 731231405

NUT M6M M5

$3.49

$

Usually ships in 3-10 days

0

740422400

$3.49

$

In Stock, Qty 10

0

725532955

Husqvarna 725532955

SCREW MC6S 5X16

$7.99

$

In Stock, Qty 20+

0

502107301

Husqvarna 502107301

DRIVER
(Superseded to 502254102)

$74.99

$

Usually ships in 3-10 days

0

502031403

$

$

Not available

502045501

Husqvarna 502045501

LOCKNUT 12X1.75
(Superseded to 732252201)

$1.99

$

In Stock, only 2 left!

0

725536401

Husqvarna 725536401

SCREW MC6S 6X10

$5.99

$

Usually ships in 3-10 days

0

502005301

$

$

Not available

502006101

Husqvarna 502006101

ANTIVIBE ELEMENT

$16.76

$

Usually ships in 3-10 days

0

725537105

Husqvarna 725537105

SCREW MC6S 6X22

$

$

Not available

501311401

Husqvarna 501311401

NO LONGER AVAILABLE NLA

$

$

Not available

502005906

$

$

Not available

$

$

Currently unavailable

502106701

$

$

Not available

502071403

Husqvarna 502071403

HANDLE ASSY RH
(Superseded to 515105605)

$

$

Not available

502071404

Husqvarna 502071404

HANDLE RIGHT
(Superseded to 515105605)

$

$

Not available

725533555

Husqvarna 725533555

SCREW MC6S 5X30

$3.49

$

In Stock, only 1 left!

0

502043801

$30.18

$

Usually ships in 3-10 days

0

503226501

Husqvarna 503226501

SQUARE NUT M5
(Superseded to 503226504)

$6.49

$

In Stock, Qty 8

0

725533155

Husqvarna 725533155

SCREW MC6S 5X20
(Superseded to 525824902)

$6.49

$

In Stock, only 2 left!

0

502010501

Husqvarna 502010501

EYELET
(Superseded to 502266001)

$

$

Not available

502006602

Husqvarna 502006602

SUPPORTING TUBE

$198.99

$

Usually ships in 3-10 days

0

725536401

Husqvarna 725536401

SCREW MC6S 6X10

$5.99

$

Usually ships in 3-10 days

0

502006101

Husqvarna 502006101

ANTIVIBE ELEMENT

$16.76

$

Usually ships in 3-10 days

0

725536401

Husqvarna 725536401

SCREW MC6S 6X10

$5.99

$

Usually ships in 3-10 days

0

503233002

Husqvarna 503233002

Spring Washer, 6.4 X 10

$2.23

$

Usually ships in 3-10 days

0

725536701

Husqvarna 725536701

4CREW MC6S 6X14

$

$

Not available

502005701

Husqvarna 502005701

SUPPORT STRAP

$

$

Not available

725536701

Husqvarna 725536701

4CREW MC6S 6X14

$

$

Not available

503233002

Husqvarna 503233002

Spring Washer, 6.4 X 10

$2.23

$

Usually ships in 3-10 days

0

502005601

$

$

Not available

503506901

Husqvarna 503506901

DECAL
(Superseded to 503901301)

$

$

Not available
