165 R - Husqvarna String Trimmer (1984-06) Piston/Cylinder Parts Diagram

String Trimmer

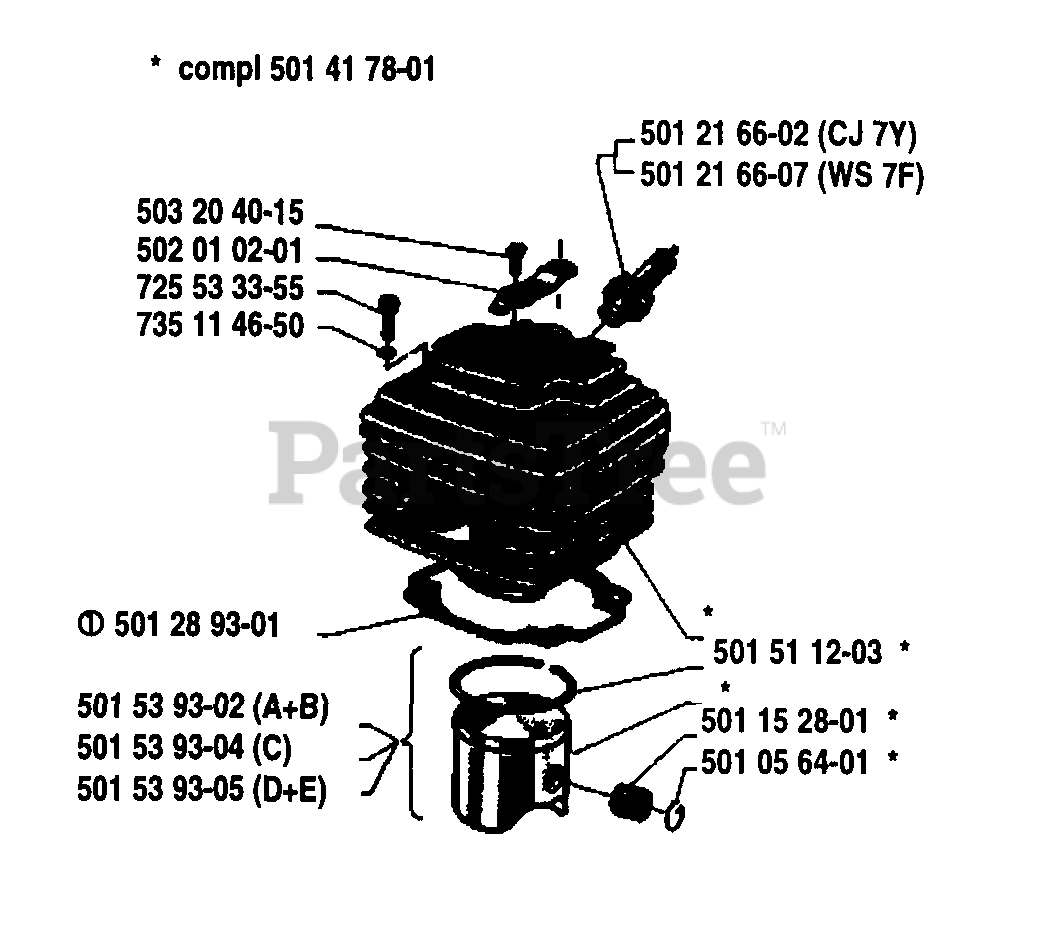

Piston/Cylinder Parts Diagram

  • Title

501417801

Husqvarna 501417801

CYLINDER
(Superseded to 502258002)

$

$

Not available

503204015

Husqvarna 503204015

SCREW FS 6X16
(Superseded to 723132955)

$6.49

$

Usually ships in 3-10 days

0

502010201

Husqvarna 502010201

LEVER

$

$

Not available

725533355

Husqvarna 725533355

SCREW MC6S 5X25

$6.49

$

In Stock, Qty 17

0

735114650

Husqvarna 735114650

SPRING WASHER 5.3X10

$2.49

$

In Stock, only 1 left!

0

501216602

Husqvarna 501216602

REPL BY 503 23 50-11
(Superseded to 503235111)

$3.99

$

In Stock, Qty 20+

0

501216607

Husqvarna 501216607

S. PLUG
(Superseded to 503235111)

$3.99

$

In Stock, Qty 20+

0

501289301

Husqvarna 501289301

CYL GASKET
(Superseded to 501289302)

$

$

Not available

501539302

Husqvarna 501539302

PISTON A + B
(Superseded to 537073001)

$115.39

$

Usually ships in 3-10 days

0

501539303

Husqvarna 501539303

$

$

Currently unavailable

501539304

Husqvarna 501539304

PISTON
(Superseded to 537073001)

$115.39

$

Usually ships in 3-10 days

0

501511203

Husqvarna 501511203

PISTON RING
(Superseded to 503289015)

$31.99

$

In Stock, only 3 left!

0

501152801

Husqvarna 501152801

NEEDLE BEARING

$

$

Not available

501056401

Husqvarna 501056401

RING
(Superseded to 737431200)

$7.49

$

Usually ships in 3-10 days

0
