165 R - Husqvarna String Trimmer (1984-06) Guard Assembly Parts Diagram

String Trimmer

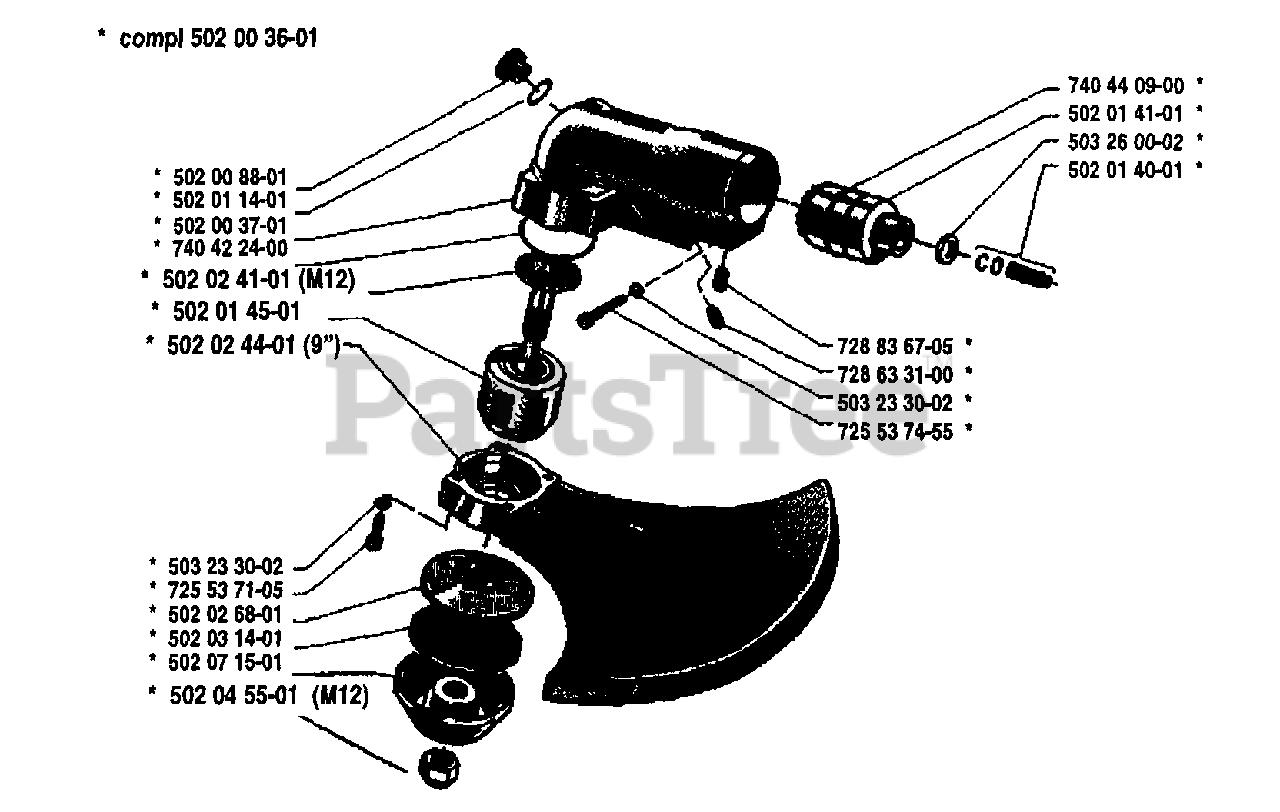

Guard Assembly Parts Diagram

  • Title

502003601

Husqvarna 502003601

GEAR ASSY
(Superseded to 502107007)

$

$

Not available

502008801

Husqvarna 502008801

FILL PLUG
(Superseded to 502115902)

$21.99

$

Usually ships in 3-10 days

0

502011401

Husqvarna 502011401

GASKET
(Superseded to 502286201)

$

$

Not available

502003701

Husqvarna 502003701

GEAR HOUSING

$

$

Not available

740422400

Husqvarna 740422400

O-RING

$3.49

$

In Stock, Qty 10

0

502024101

Husqvarna 502024101

SHAFT

$

$

Not available

502014501

Husqvarna 502014501

BEARING HOUSING NLA

$

$

Not available

502024401

Husqvarna 502024401

Blade Guard, 225mm

$

$

Not available

503233002

Husqvarna 503233002

Spring Washer, 6.4 X 10

$2.23

$

Usually ships in 3-10 days

0

725537105

Husqvarna 725537105

SCREW MC6S 6X22

$

$

Not available

502026801

Husqvarna 502026801

$

$

Currently unavailable

502031401

Husqvarna 502031401

$

$

Currently unavailable

502071501

Husqvarna 502071501

NUT PROTECTION

$

$

Not available

502045501

Husqvarna 502045501

LOCKNUT 12X1.75
(Superseded to 732252201)

$1.99

$

In Stock, only 2 left!

0

740440900

Husqvarna 740440900

O-RING

$2.99

$

Usually ships in 3-10 days

0

502014101

Husqvarna 502014101

HOUSING

$

$

Not available

503260002

Husqvarna 503260002

SEALING RING

$

$

Not available

502014001

Husqvarna 502014001

SPRING SET NLA

$

$

Not available

728836705

Husqvarna 728836705

SCREW SK6SS 6X14

$

$

Not available

728633100

Husqvarna 728633100

SCREW

$

$

Not available

503233002

Husqvarna 503233002

Spring Washer, 6.4 X 10

$2.23

$

Usually ships in 3-10 days

0

725377455

Husqvarna 725377455

$

$

Currently unavailable
