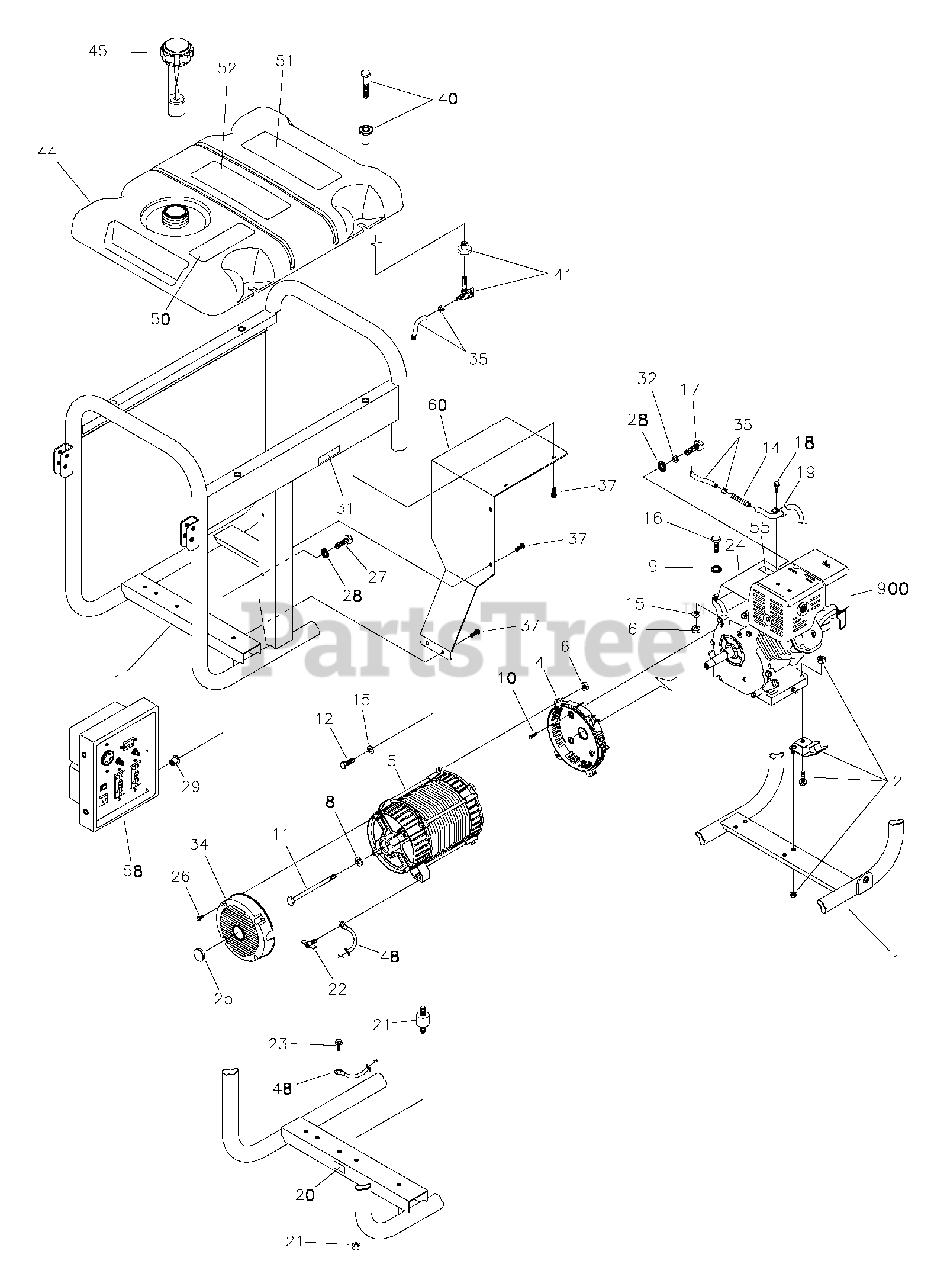

1648-1 - PowerBoss 4,500 Watt Portable Generator Main Unit Parts Diagram

4,500 Watt Portable Generator

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton B189252GS

KIT, Cradle

$533.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 194150GS

KIT, Vibration Mount

$13.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 190220GS

ADAPTER, Engine

$43.99

$

Usually ships in 2-12 days

0

5

NSP

ASSY, Alternator

Note: (see "Alternator")

$

$

Not available

6

NUT, Hex M8 - 1.25

Note: (Purchase locally)

$

$

Not available

8

Briggs & Stratton 96796GS

WASHER, 8.4 x 22.2 x 3

$3.49

$

Usually ships in 2-12 days

0

9

WASHER, Flat, 5/16 - M8

Note: (Purchase locally)

$

$

Not available

10

Briggs & Stratton 190274DGS

SBHCS, 3/8 - 16 x 7/8

$3.49

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 187365AGS

HHCS, 5/16 - 24 x 7.13

$26.99

$

Usually ships in 2-12 days

0

12

HHCS, M8 - 1.25 x 25

Note: (Purchase locally)

$

$

Not available

14

Briggs & Stratton 200082GS

CONNECTOR

$8.99

$

Usually ships in 2-12 days

0

15

WASHER, Lock 5/16 - M8

Note: (Purchase locally)

$

$

Not available

16

HHCS, M8 - 1.25 x 35

Note: (Purchase locally)

$

$

Not available

17

HHCS, M6 - 1.0 x 30

Note: (Purchase locally)

$

$

Not available

18

Briggs & Stratton 56893GS

CRIMPTITE, 10-24 x 1/2"

$3.49

$

In Stock, only 1 left!

0

19

Briggs & Stratton 55934GGS

CLAMP, Hose

$4.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton B4986GS

DECAL, Ground

$2.99

$

In Stock, only 1 left!

0

21

Briggs & Stratton 194153GS

KIT, Vibration Mount

$11.99

$

In Stock, Qty 5

0

22

Briggs & Stratton 86494GS

SCREW, Wing M6 - 1.0 x 16

$2.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 86292GS

SCREW, 10 - 16 x 3/4, Self Drill
(Superseded to 313085GS)

$4.99

$

In Stock, only 1 left!

0

24

Briggs & Stratton B189434GS

COVER, Engine

$24.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 191190GS

CAP

$3.99

$

In Stock, only 1 left!

0

26

Briggs & Stratton 74908GS

SCREW, M5-0.8 x 10, Taptite

$2.99

$

Usually ships in 2-12 days

0

27

HHCS, 1/4 - 20 x 1

Note: (Purchase locally)

$

$

Not available

28

FLAT WASHER, 1/4 - M6

Note: (Purchase locally)

$

$

Not available

29

Briggs & Stratton 189377GS

WELLNUT, 1/4 - 20

$3.49

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 196830GS

DECAL, Exhaust Warning

$15.99

$

Usually ships in 2-12 days

0

32

LOCK WASHER, 1/4

Note: (Purchase locally)

$

$

Not available

34

Briggs & Stratton 195422GS

COVER, RBC, Plastic w/Cap

$13.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 791745

KIT, Fuel Hose (cut to fit)

$10.99

$

In Stock, Qty 20+

0

37

Briggs & Stratton B2153GS

SCREW, Self Drill, 12 - 14 x 7/8

$4.49

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 194398GS

KIT, Fuel Tank Hardware

Note: (Includes Qty of 4)

$10.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 192980GS

KIT, Fuel Valve

$17.99

$

In Stock, Qty 20+

0

44

Briggs & Stratton 197443GS

ASSY, Fuel Tank

Note: (Includes Items 41, 50, 51 & 52)

$204.99

$

Usually ships in 2-12 days

0

45

Briggs & Stratton B4363GS

CAP, Fuel Gauge

$41.99

$

In Stock, Qty 20+

0

48

Briggs & Stratton 195373GS

WIRE, Ground

$2.49

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 188333GS

DECAL, Instructions, Fuel Level

$23.99

$

In Stock, only 1 left!

0

51

Briggs & Stratton 194799GS

DECAL, Danger

$11.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 93826GS

DECAL, Start Instructions

$14.99

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 197798GS

DECAL, Fuel Shut-Off

$9.49

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 189249GS

ASSY, Control Panel

Note: (see "Control Panel")

$434.99

$

Usually ships in 2-12 days

0

60

Briggs & Stratton J189384GS

HEAT SHIELD, Muffler

$66.99

$

Usually ships in 2-12 days

0

900

ENGINE, Honda

Note: Contact Engine Manufacturer

$

$

Not available

Briggs & Stratton BB3061BGS

OIL BOTTLE
(Superseded to 100005)

Note: Not Illustrated

$8.99

$

In Stock, Qty 20+

0

Briggs & Stratton B1464GS

MANUAL, Engine

Note: Not Illustrated

$17.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 200167GS

MANUAL, Operator's

Note: Not Illustrated

$14.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 65787GS

CABLE, Battery Charge

Note: Not Illustrated

$24.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 200719GS

KIT, Decals Srv

Note: Not Illustrated

$27.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 100031

STABILIZER, Fuel
(Superseded to 100126)

Note: Optional Accessories

$3.49

$

In Stock, Qty 20+

0
