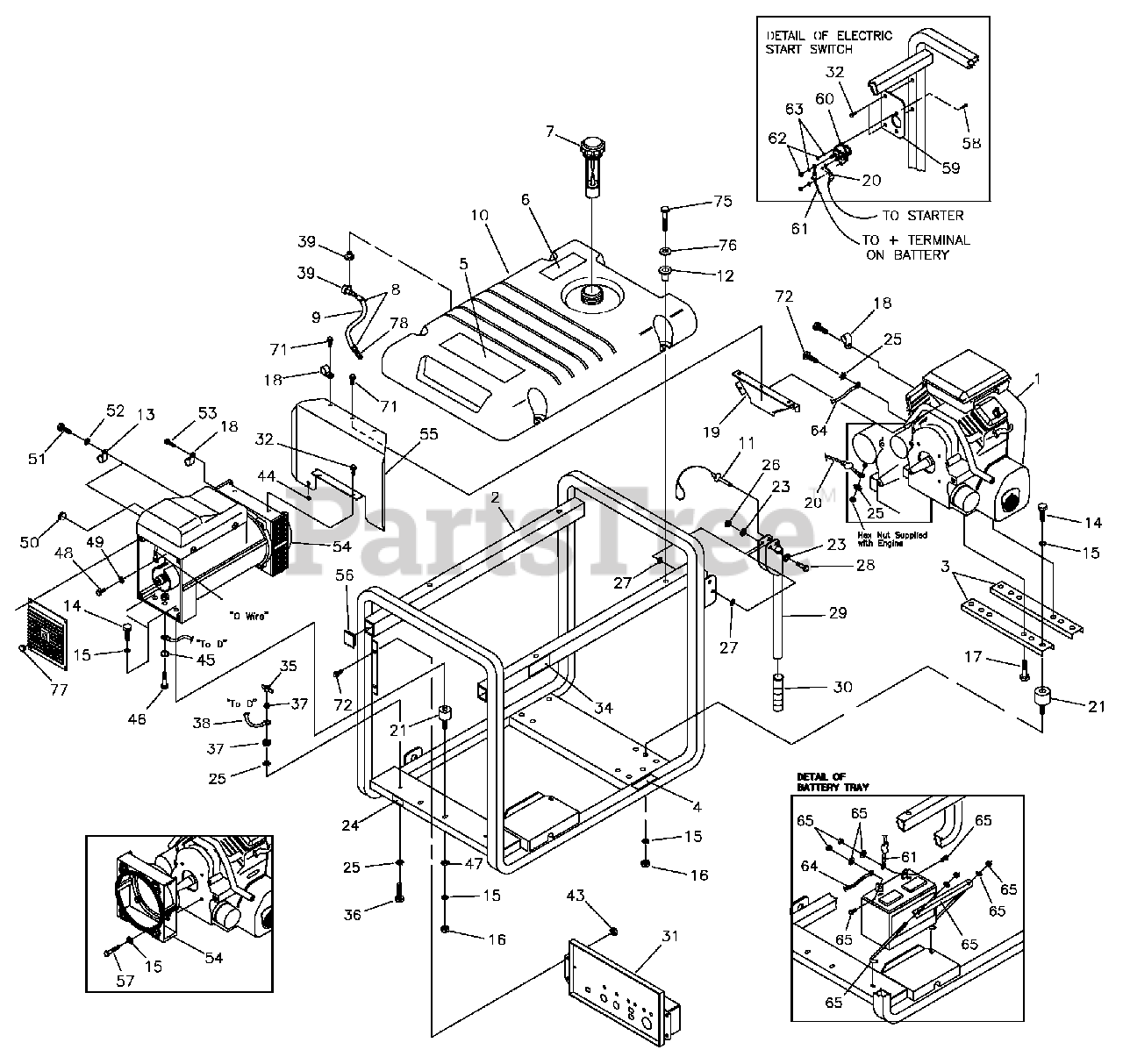

1647-0 - PowerBoss 8,000 Watt Portable Generator Main Unit Parts Diagram

8,000 Watt Portable Generator

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton ~NSP

ENGINE

$

$

Currently unavailable

2

Briggs & Stratton B189039GS

CRADLE

$145.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton B77304GS

SUPPORT, Engine

$27.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 77816GS

DECAL, Caution Hot Muffler

$4.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 93826GS

DECAL, Start Instructions

$14.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 92982GS

DECAL, Danger
(Superseded to 194799GS)

$11.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton B4363GS

CAP, Fuel Tank

$41.99

$

In Stock, Qty 20+

0

8

Briggs & Stratton 48031CGS

CLAMP, Hose
(Superseded to 691038)

$3.99

$

In Stock, Qty 16

0

9

Briggs & Stratton 30340GS

HOSE
(Superseded to 499742)

$77.99

$

In Stock, Qty 9

0

10

Briggs & Stratton 193633GS

ASSY,Tank, Fuel
(Superseded to 193500GS)

Note: (Includes Items 5, 6 & 39)

$

$

Not available

11

Briggs & Stratton B4135GS

PIN

$

$

Not available

12

Briggs & Stratton 83465GS

GROMMET, Fuel Tank Mounting

$3.99

$

In Stock, only 4 left!

0

13

Briggs & Stratton 96832GS

CLAMP, Cable

$3.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 23152GS

SCREW

$2.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 22237GS

WASHER, Lock

$2.49

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 22241GS

NUT

$3.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 75246GS

SCREW

$3.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 55934GGS

CLAMP, Hose

$4.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton J93074GS

SUPPORT, Heat Shield

$136.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 189302AGS

ASSY,Wire, Starter

$22.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 38353GS

MOUNTS,Vibration

$39.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 22145GS

WASHER

$2.99

$

In Stock, only 1 left!

0

24

Briggs & Stratton B4986GS

DECAL, Ground

$2.99

$

In Stock, only 1 left!

0

25

Briggs & Stratton 26850GS

WASHER

$2.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 49820GS

NUT, Nylok

$3.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 187104GS

WASHER, Nylon

$4.49

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 39287GS

SCREW

$3.99

$

In Stock, only 2 left!

0

29

Briggs & Stratton BB5586GS

HANDLE

Note: (Includes Item 30)

$

$

Not available

30

Briggs & Stratton B4605GS

GRIP
(Superseded to 198669GS)

$8.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 189051GS

ASSY, Control Panel

Note: (see "Control Panel")

$385.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton B2153GS

SCREW

$4.49

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 73054GS

DECAL, Fuel Shut-Off

$8.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 87680GS

NUT,Wing

$7.49

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 45757GS

SCREW

$3.49

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 49813GS

NUT

$2.99

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 19553621GS

ASSY,Wire, Ground

$7.49

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 192980GS

KIT,Valve, Fuel

$17.99

$

In Stock, Qty 20+

0

43

Briggs & Stratton 52856GS

NUT, Lock

$3.49

$

Usually ships in 2-12 days

0

44

Briggs & Stratton 62265GS

GROMMET

$8.49

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 27482GS

WASHER

$3.49

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 42907GS

SCREW

$4.49

$

Usually ships in 2-12 days

0

47

Briggs & Stratton 22131GS

WASHER

$2.99

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 52618GS

SCREW

$2.99

$

Usually ships in 2-12 days

0

49

Briggs & Stratton 49226GS

WASHER, Lock

$2.99

$

Usually ships in 2-12 days

0

50

Briggs & Stratton B4794GS

GROMMET, Generator Cover

$4.49

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 47411GS

SCREW

$

$

Not available

52

Briggs & Stratton 22473GS

WASHER
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

53

Briggs & Stratton 76040GS

SCREW

$2.99

$

Usually ships in 2-12 days

0

54

Briggs & Stratton B4268GS

ASSY,Alternator

Note: (see "Alternator")

$2472.99

$

Usually ships in 2-12 days

0

55

Briggs & Stratton J189091GS

SHIELD, Heat

$60.99

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 46476GS

CAP, Plug

$2.49

$

Usually ships in 2-12 days

0

57

Briggs & Stratton 22511GS

SCREW

$1.99

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 22287GS

SCREW

$3.49

$

Usually ships in 2-12 days

0

59

Briggs & Stratton 78289GS

BRACKET, Starter Switch

$7.49

$

Usually ships in 2-12 days

0

60

Briggs & Stratton 77282GS

SWITCH, Starter

$76.99

$

In Stock, only 2 left!

0

61

Briggs & Stratton 189298BGS

CABLE, Battery Positive

$18.99

$

Usually ships in 2-12 days

0

62

Briggs & Stratton 22127GS

NUT

$1.99

$

Usually ships in 2-12 days

0

63

Briggs & Stratton 22097GS

WASHER, Lock

$3.49

$

Usually ships in 2-12 days

0

64

Briggs & Stratton 185939GGS

CABLE, Battery Negative

$12.99

$

Usually ships in 2-12 days

0

65

Briggs & Stratton 187856GS

KIT, Hardware Tray and Battery

$18.99

$

Usually ships in 2-12 days

0

71

Briggs & Stratton 56893GS

SCREW

$3.49

$

In Stock, only 1 left!

0

72

Briggs & Stratton 91526GS

SCREW

$3.99

$

Usually ships in 2-12 days

0

75

Briggs & Stratton 189286GS

SCREW

$3.49

$

In Stock, only 1 left!

0

76

Briggs & Stratton 189155GS

WASHER

$9.49

$

In Stock, only 1 left!

0

77

Briggs & Stratton 187049GS

PLUG, Domed

$8.49

$

Usually ships in 2-12 days

0

78

Briggs & Stratton 192280GS

HOSE BARB

$18.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 189065GS

MANUAL, Owners

Note: Not Shown

$16.99

$

Usually ships in 2-12 days

0

Briggs & Stratton MS5375

MANUAL, Engine

Note: Not Shown

$

$

Not available

Briggs & Stratton MS6497

SHEET, Instruction

Note: Not Shown

$0.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 193347GS

KIT, Battery Hardware

Note: Not Shown

$2.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 807948

MUFFLER
(Superseded to 692099)

Note: Not Shown

$184.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 807595

CLAMP, Muffler
(Superseded to 690898)

Note: Not Shown

$14.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 805812

BRACKET, Muffler
(Superseded to 691513)

Note: Not Shown

$55.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 392154

ARRESTOR, Spark

Note: Not Shown

$

$

Currently unavailable

Briggs & Stratton 690661

SCREW

Note: Not Shown

$3.49

$

In Stock, Qty 8

0

Briggs & Stratton 692056

BOLT

Note: Not Shown

$5.99

$

In Stock, Qty 20+

0

Briggs & Stratton 692359

SCREW

Note: Not Shown

$99.99

$

Usually ships in 2-12 days

0

Briggs & Stratton BB3061GS

OIL, Bottle

Note: Not Shown

$13.99

$

In Stock, only 1 left!

0

Briggs & Stratton 43438GS

PLUG, 240V, 30A

Note: Not Shown

$26.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 37806GS

PLUG, 125V, 30A
(Superseded to 100523GS)

Note: Not Shown

$20.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 193634GS

KIT, Decal Service

Note: Not Shown

$88.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 84883GS

Cord Wrap

Note: Optional Accessory Not

$29.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 43630GS

PLUG, 120/240 Volt 20 Amp

Note: Optional Accessory Not

$74.99

$

Usually ships in 2-12 days

0
