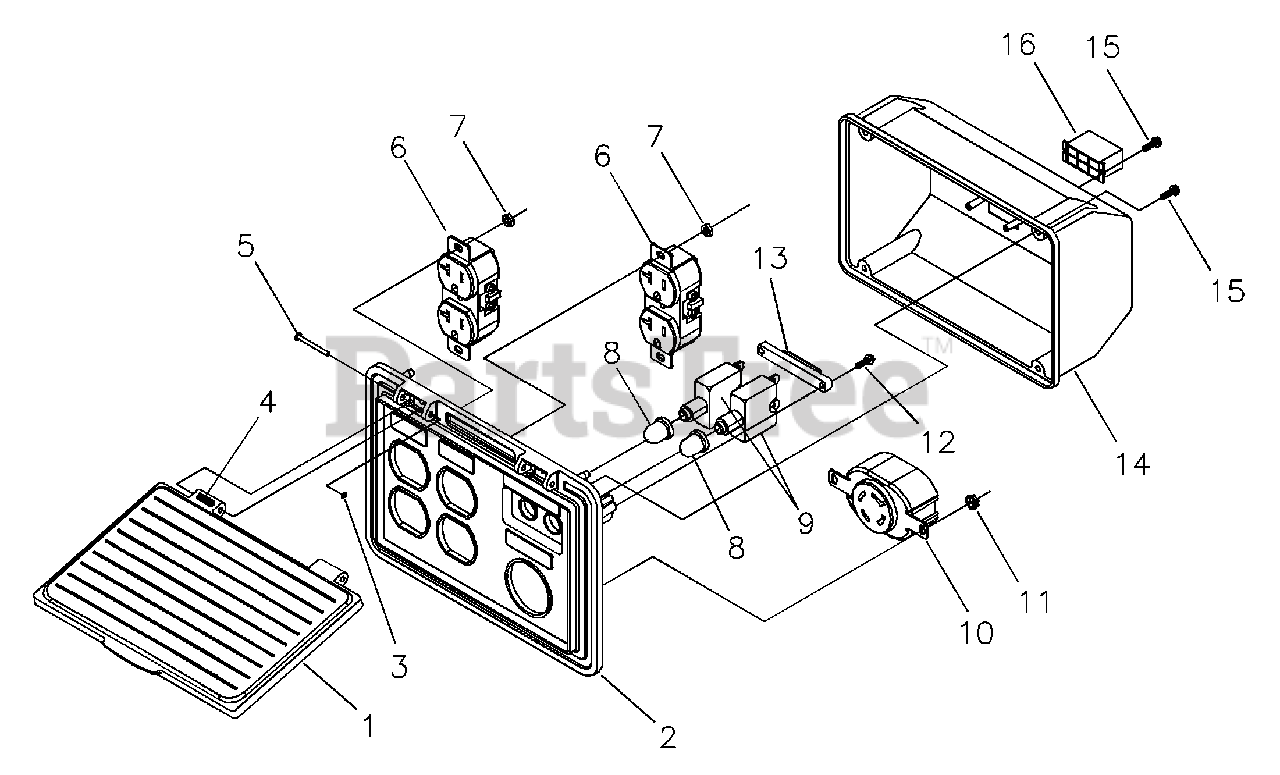

1646-0 - Generac Wheelhouse 5,500 Watt Portable Generator Control Panel Parts Diagram

Wheelhouse 5,500 Watt Portable Generator

Control Panel Parts Diagram

  • Title

1

Briggs & Stratton 188914GS

COVER, Lid, Control Panel

$

$

Not available

2

Briggs & Stratton 188889GS

CONTROL PANEL, Compact

$

$

Not available

3

Briggs & Stratton 189167GS

CLIP, Hinge Pin Retainer

$3.49

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 189182GS

SPRING, Hinge, Pin

$3.49

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 189166GS

PIN, Hinge, Cover, Compact

$3.49

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 68759GS

OUTLET, 120V, 20Amp, Duplex

$24.99

$

In Stock, only 4 left!

0

7

Briggs & Stratton 189165GS

NUT, Palnut, Pushnut

$3.49

$

In Stock, only 2 left!

0

8

Briggs & Stratton 84198GS

CAP, Circuit Breaker

$4.49

$

In Stock, Qty 20+

0

9

Briggs & Stratton 75207GS

CIRCUIT BREAKER
(Superseded to 209872GS)

$9.99

$

In Stock, only 4 left!

0

10

Briggs & Stratton 43437GS

OUTLET, 120/240 Locking, 30A

$17.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 189164GS

NUT, Palnut, Pushnut

$3.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 84543CGS

SCREW, Phillips, Head

$2.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 93857GS

BAR, Retaining

$15.99

$

In Stock, only 1 left!

0

14

Briggs & Stratton 188890GS

COVER, Back, Control Panel

$

$

Not available

15

Briggs & Stratton 82308GS

SCREW, Self Tapping, STC 3x

$2.99

$

In Stock, only 2 left!

0

16

Briggs & Stratton 22694GS

HOUSING, Receptacle

$5.99

$

In Stock, only 1 left!

0
