16410 - Toro Walk-Behind Mower (SN: 039000001 - 039999999) (1993) HANDLE ASSEMBLY Parts Diagram

Walk-Behind Mower

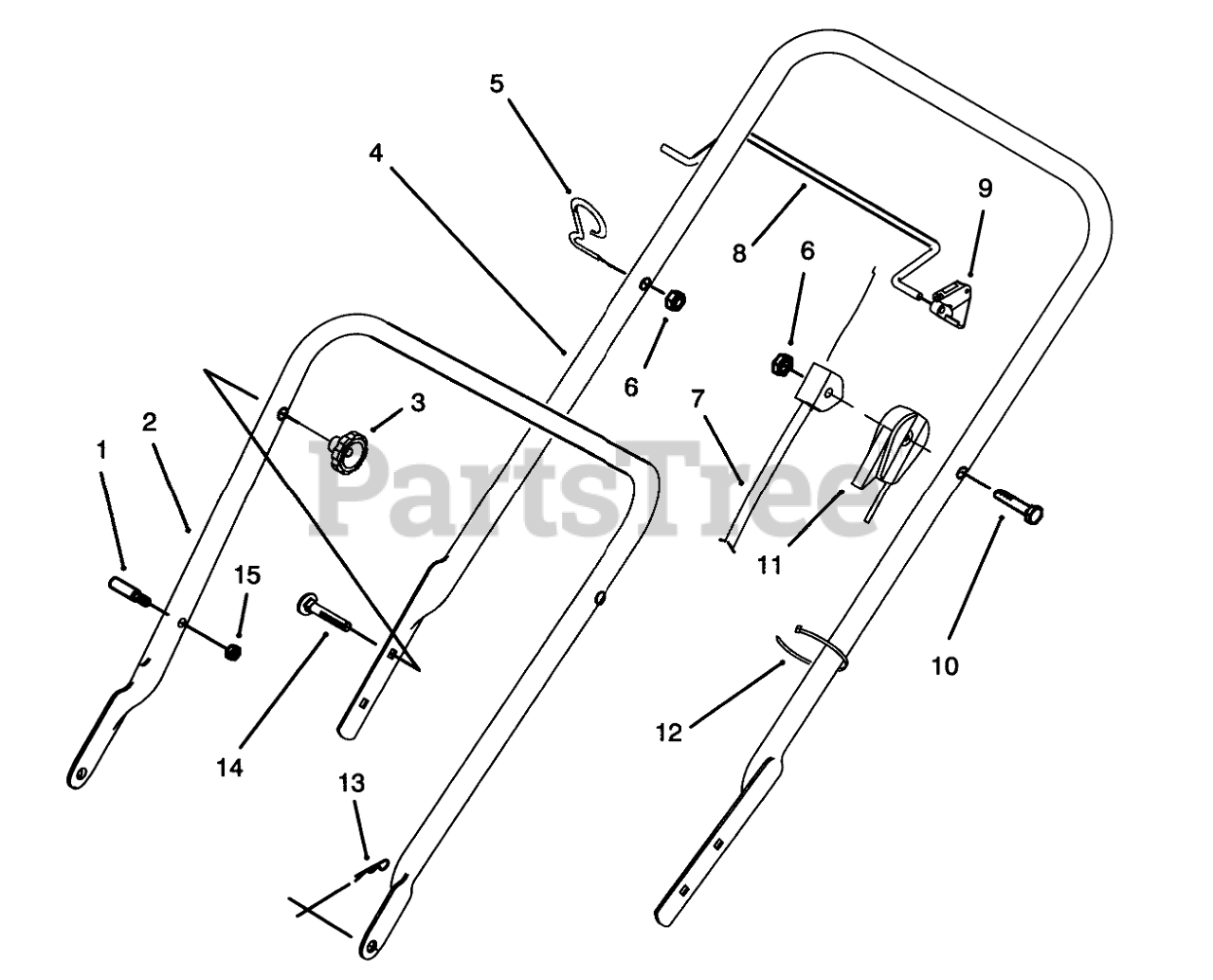

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 49-2750

HANDLE PIN

Note: Service Replacement Part

$36.99

$

Usually ships in 3-6 days

0

2

Toro 49-1690

LOWER HANDLE ASM

$173.99

$

Usually ships in 3-6 days

0

3

Toro 19-4050

KNOB

$17.99

$

In Stock, only 2 left!

0

4

Toro 92-6513

UPPER HANDLE

$

$

Not available

5

Toro 86-9671

GUIDE-ROPE

$4.49

$

In Stock, Qty 20+

0

6

Toro 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, Qty 8

0

7

Toro 92-4064

BRAKE CONTROL

$59.99

$

Usually ships in 3-6 days

0

8

Toro 92-3134

Bar-Control
(Superseded to 92-3134-03)

$

$

Not available

9

Toro 92-5412

STOP-PIVOT
(Superseded to 107-0757)

$5.49

$

In Stock, Qty 20+

0

10

Toro 321-33

SCREW-HH

$8.99

$

In Stock, only 1 left!

0

11

Toro 92-5729

THROTTLE CONTROL

$

$

Not available

12

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

13

Toro 3290-255

PIN-COTTER, HAIR

$8.99

$

In Stock, only 1 left!

0

14

Toro 614697

SCREW

$2.49

$

In Stock, Qty 20+

0

15

Toro 3296-47

NUT-LOCK, NI

Note: Service Replacement Part

$3.99

$

In Stock, Qty 20+

0

Toro 16-3489

Loose Parts Assembly (Incl. Ref. #3, 12-14)

Note: Not illustrated

$

$

Not available
