16410 - Toro Walk-Behind Mower (SN: 039000001 - 039999999) (1993) ENGINE ASSEMBLY Parts Diagram

Walk-Behind Mower

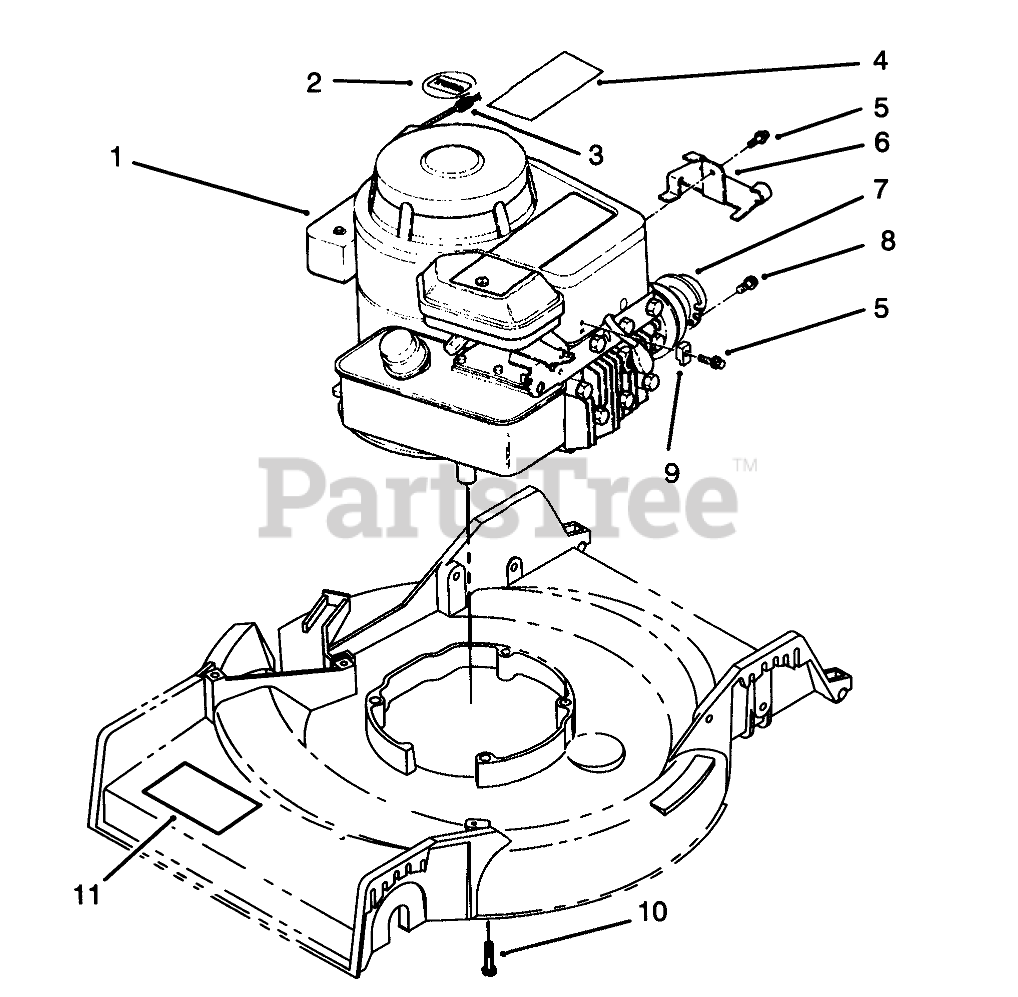

ENGINE ASSEMBLY Parts Diagram

  • Title
1

Engine-Briggs and Stratton 084232-0121-e1

$

$

Not available

2

Toro 92-2296

Decal-Toro
(Superseded to 68-5370)

$8.49

$

Usually ships in 3-6 days

0

3

Toro 2210-316

STOP-ROPE

$7.99

$

Usually ships in 3-6 days

0

4

Toro 92-3145

Decal-Engine
(Superseded to 86-9760)

$

$

Not available

5

Toro 86-7990

CLAMP SCREW F/W ENGINE

$3.49

$

Usually ships in 3-6 days

0

6

Toro 88-0460

CABLE BRACKET

$

$

Not available

7

Toro 2210-174

MUFFLER DEFLECTOR F/W

$

$

Not available

8

Toro 2210-173

SCREW W/ENGINE

$

$

Not available

9

Toro 86-7980

CASING CLAMP F/W ENGINE

$1.49

$

Usually ships in 3-6 days

0

10

Toro 32144-105

THD FORM SCREW

$

$

Not available

11

Toro 71-0600

DECAL

$13.99

$

Usually ships in 3-6 days

0
