1641 (145-653-100) - Cub Cadet Garden Tractor (SN: 821060 - 880000) Pedestal, Instrument Panel & Engine Controls Parts Diagram

Garden Tractor

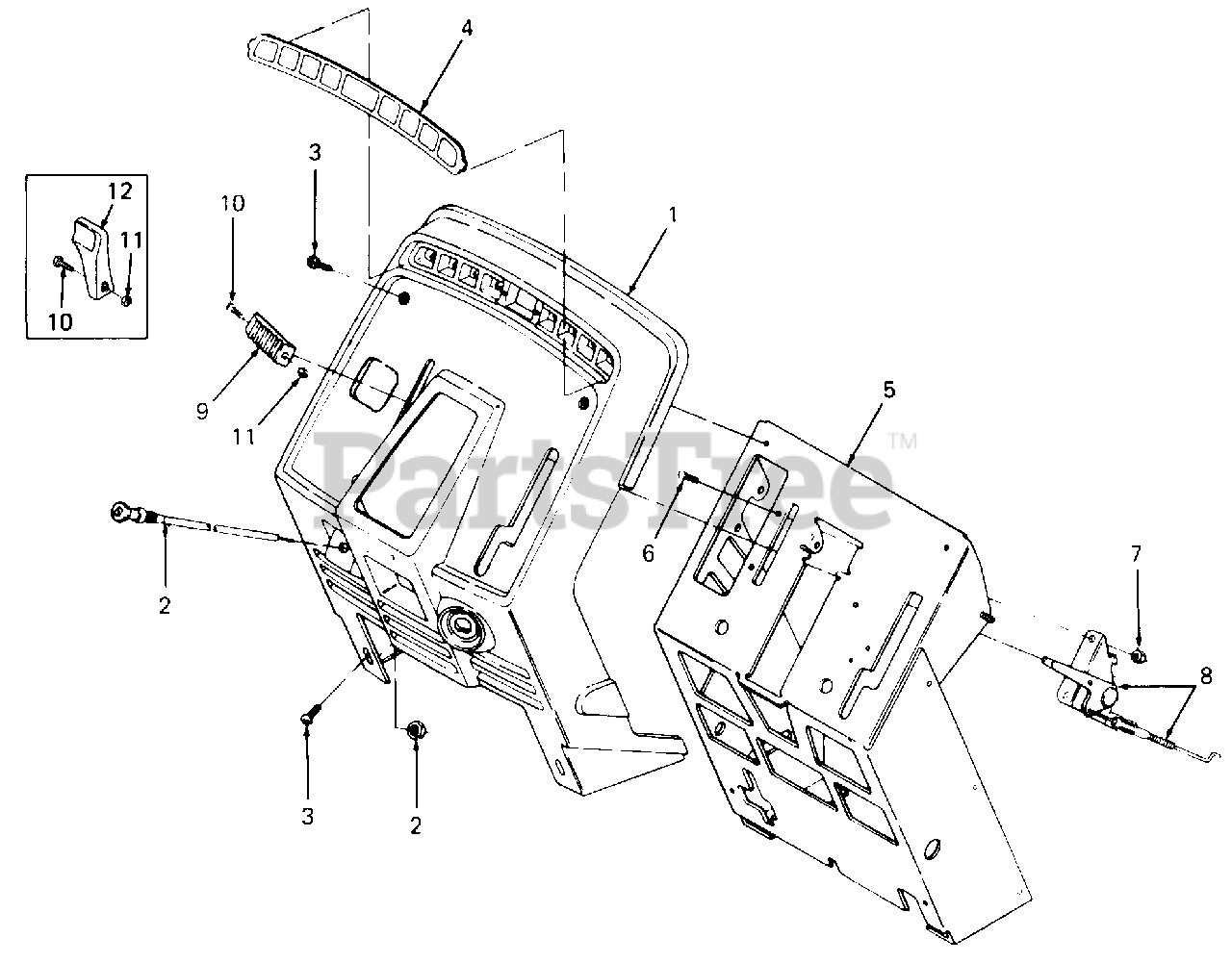

Pedestal, Instrument Panel & Engine Controls Parts Diagram

  • Title

1

Cub Cadet 731-3096

Panel, Instrument
(Superseded to 931-3096)

$

$

Not available

2

Cub Cadet 746-3036

Choke Cable w/Nut

$

$

Not available

3

Cub Cadet 710-3009

Screw, Pan Hd Cutting, #10-24 X .75 Lg

$7.49

$

Usually ships in 3-6 days

0

4

Cub Cadet 779-3507

Label, Dash

$

$

Not available

5

Cub Cadet 603-0023

Pedestal

Variations

Cub Cadet 603-0023-0498

PEDESTAL ASSEMBLY (CUB YELLOW) - OLD CUB YELLOW (0498)

$

$

Not available

$

$

6

Cub Cadet 710-0709

Stud, Self Clinching

$

$

Not available

7

Cub Cadet 712-3071

Nut, Hex Keps, #10-32
(Superseded to 712-3071A)

$3.49

$

Usually ships in 3-6 days

0

8

Cub Cadet 746-3038

Control, Throttle
(Superseded to 946-3038A)

$38.99

$

In Stock, Qty 10

0

9

Cub Cadet 731-3106

Knob, Throttle
(Superseded to 931-3161A)

$19.99

$

In Stock, only 1 left!

0

10

Cub Cadet 710-3217

Screw, Cross Rec Truss Hd, #8-32 X .38 Lg

$6.99

$

In Stock, Qty 7

0

11

Cub Cadet 712-0142

Nut, 8-32

$4.49

$

In Stock, Qty 9

0

12

Cub Cadet 731-3161

Knob, Throttle
(Superseded to 931-3161A)

Note: (Tractors with serial no. 851,001 & above)

$19.99

$

In Stock, only 1 left!

0
