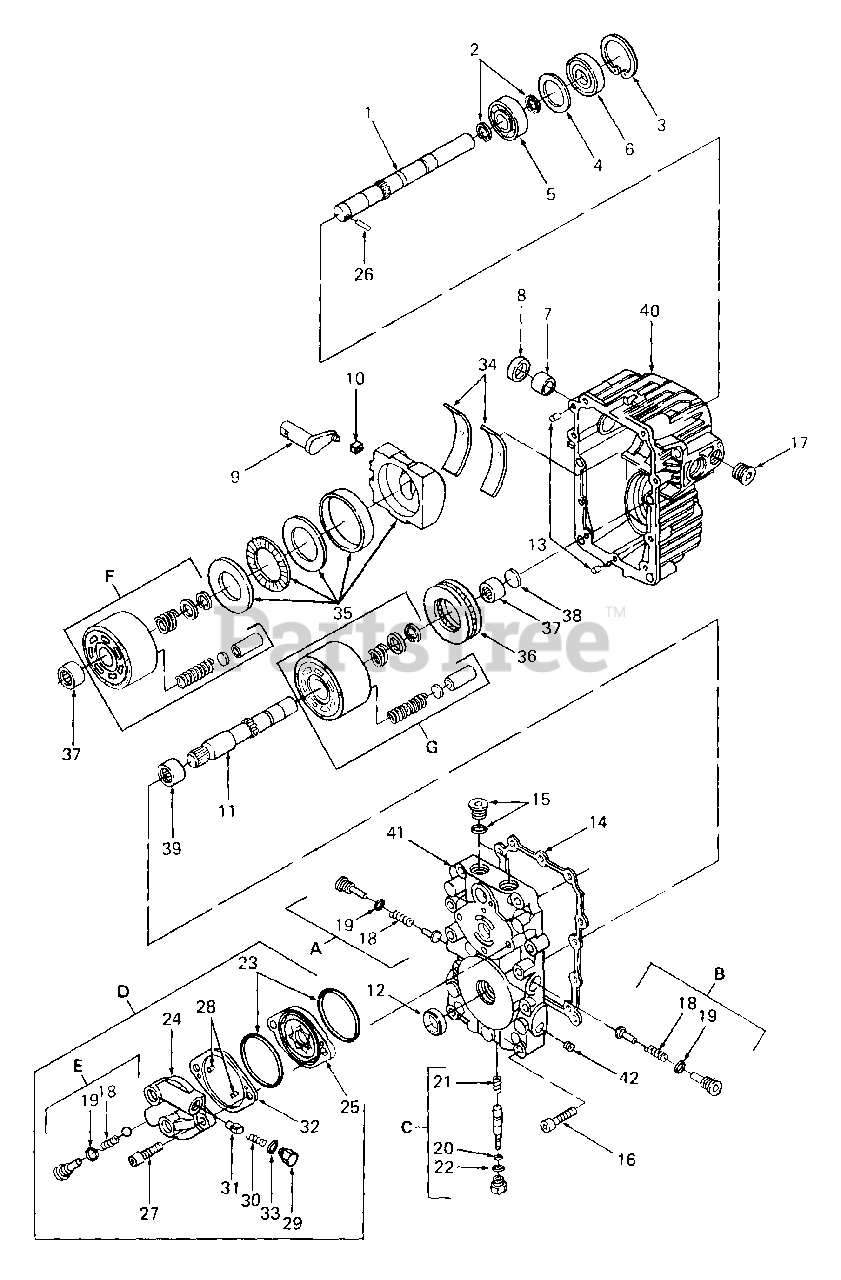

1641 (143-653-100) - Cub Cadet Garden Tractor (SN: 821060 - 880000) Hydrostatic Transmission Parts Diagram

Garden Tractor

Hydrostatic Transmission Parts Diagram

  • Title

A

Cub Cadet HG-2510050

Kit, Poppet Check Valve

$

$

Not available

B

Cub Cadet HG-2510033

Kit, Orificed Check Valve

$

$

Not available

C

Cub Cadet HG-2510012

Kit, Bypass Valve

$114.99

$

Usually ships in 3-6 days

0

D

Cub Cadet HG-2510031

Kit, Charge Pump

$

$

Not available

E

Cub Cadet HG-2510020

Kit, Check Valve

$

$

Not available

F

Cub Cadet HG-2510014

Kit, Pump Cylinder Block

$

$

Not available

G

Cub Cadet HG-2510013

Kit, Motor Cylinder Block

$

$

Not available

1

Cub Cadet HG-2000077

Shaft
(Superseded to HG-71387)

$

$

Not available

2

Cub Cadet HG-2000022

Ring, Retaining

Note: Included in Overhaul Seal Kit P/N HG-2510010

$4.49

$

Usually ships in 3-6 days

0

3

Cub Cadet HG-2000038

Ring, Retaining

Note: Included in Overhaul Seal Kit P/N HG-2510010

$

$

Not available

4

Cub Cadet HG-2000023

Spacer

Note: Included in Overhaul Seal Kit P/N HG-2510010

$8.99

$

Usually ships in 3-6 days

0

5

Cub Cadet HG-2000032

Bearing, Ball

$

$

Not available

6

Cub Cadet HG-2000036

Seal, Lip
(Superseded to HG-51092)

Note: Included in Overhaul Seal Kit P/N HG-2510010

$17.99

$

Usually ships in 3-6 days

0

7

Cub Cadet HG-2000019

Bearing, Journal
(Superseded to HG-2510096)

$

$

Not available

8

Cub Cadet HG-2000037

Seal, Lip

Note: Included in Overhaul Seal Kit P/N HG-2510010

$

$

Not available

9

Cub Cadet HG-2000014

Arm, Trunnion

$

$

Not available

10

Cub Cadet HG-2000015

Guide, Slot

$21.99

$

Usually ships in 3-6 days

0

11

Cub Cadet HG-2000007

Shaft, Motor

$180.99

$

In Stock, only 1 left!

0

12

Not Used

Note: Not used in this application

$

$

Not available

13

Cub Cadet HG-9004800-2506

Pin

$4.49

$

Usually ships in 3-6 days

0

14

Cub Cadet HG-2000061

Gasket, Center Section

Note: Included in Overhaul Seal Kit P/N HG-2510010

$

$

Not available

15

Cub Cadet HG-9005110-5600

Plug

$20.99

$

Usually ships in 3-6 days

0

16

Cub Cadet HG-9007314-0808

Screw

$5.99

$

Usually ships in 3-6 days

0

17

Cub Cadet HG-9005110-7500

Plug

$

$

Not available

18

Cub Cadet HG-2000028

Spring

$

$

Not available

19

Cub Cadet HG-9004201-3700

O-Ring

Note: Included in Overhaul Seal Kit P/N HG-2510010

$4.49

$

Usually ships in 3-6 days

0

20

Cub Cadet HG-9004175-0027

O-Ring

Note: Included in Overhaul Seal Kit P/N HG-2510010

$

$

Not available

21

Cub Cadet HG-2003011

Spring
(Superseded to HG-2513011)

$171.99

$

Usually ships in 3-6 days

0

22

Cub Cadet HG-9004201-2500

O-Ring

Note: Included in Overhaul Seal Kit P/N HG-2510010

$

$

Not available

23

Cub Cadet HG-9004100-1430

O-Ring

Note: Included in Overhaul Seal Kit P/N HG-2510010

$

$

Not available

24

Cub Cadet HG-2000051

Housing, Charge Pump

$

$

Not available

25

Cub Cadet HG-2000047

Gerotor Assy

$

$

Not available

26

Cub Cadet HG-9004875-0112

Pin

$

$

Not available

27

Cub Cadet HG-9007315-0807

Screw

$

$

Not available

28

Cub Cadet HG-9004800-1912

Pin

$

$

Not available

29

Cub Cadet SU-3100055

Plug
(Superseded to SU-4800323)

$35.99

$

Usually ships in 3-6 days

0

30

Cub Cadet SU-3101536

Spring

$

$

Not available

31

Cub Cadet SU-3100053

Cone, Relief Valve

$

$

Not available

32

Cub Cadet HG-2000044

Shim, Charge Pump

$

$

Not available

33

Cub Cadet HG-9004201-3100

O-Ring

$

$

Not available

34

Cub Cadet HG-2000012

Bearing, Cradle

$

$

Currently unavailable

35

Cub Cadet HG-2510015

Swashplate Assy

$

$

Not available

36

Cub Cadet HG-50019

Bearing, Ball Thrust
(Superseded to HG-53341)

$37.99

$

Usually ships in 3-6 days

0

37

Cub Cadet HG-2000033

Bearing, Needle

$

$

Currently unavailable

38

Cub Cadet HG-2000011

Washer, Thrust

$

$

Not available

39

Cub Cadet HG-2000035

Bearing, Needle

$

$

Currently unavailable

40

Cub Cadet HG-2510032

Housing Assy
(Superseded to HG-2510096)

Note: (Includes Ref No. 7, 36, 37 & 38)

$

$

Not available

41

Cub Cadet HG-2510023

Center Section Assy

Note: (For tractors w/serial no. 831,439 & below); (Includes Ref No. 37 & 39)

$

$

Not available

Cub Cadet HG-2510049

Center Section Assy

Note: (For tractors w/serial no. 831,440 & above); (includes Ref No. 37 & 39)

$

$

Not available

42

Cub Cadet HG-9005001-0600

Plug

$

$

Not available

Cub Cadet HG-2510010

Kit, Overhaul Seal

Note: Includes items 2-4, 6, 8, 14, 19, 20, 22 & 23

$

$

Not available
