1641 (143-653-100) - Cub Cadet Garden Tractor (SN: 821060 - 880000) Air Cleaner Parts Diagram

Garden Tractor

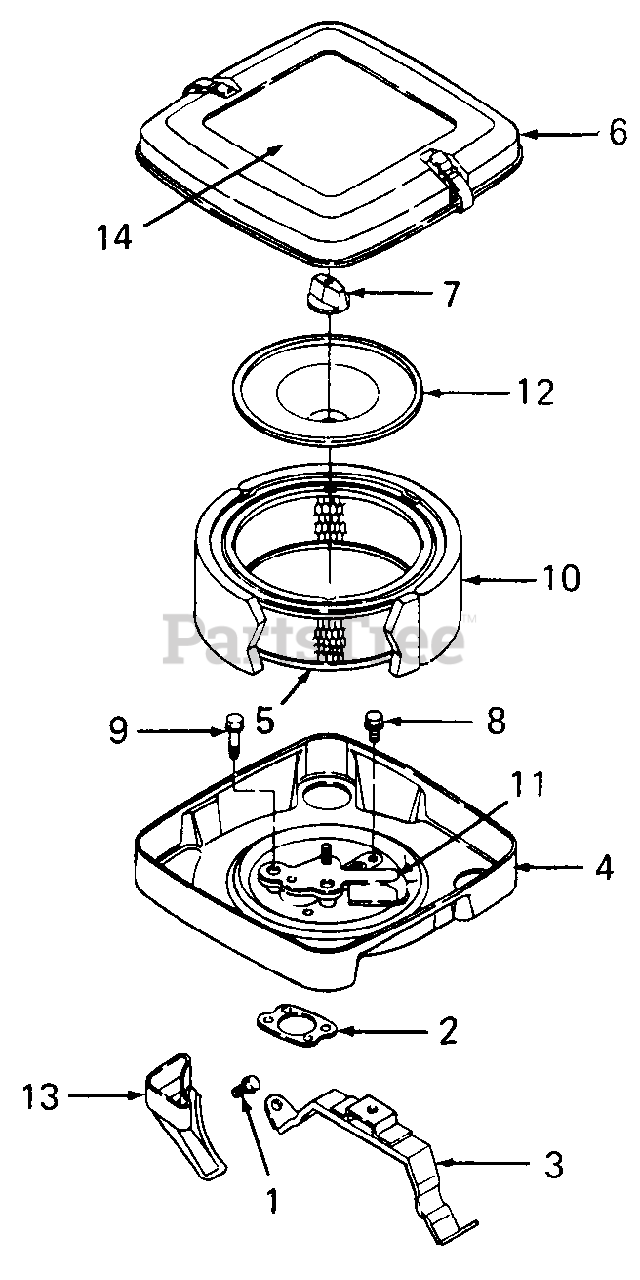

Air Cleaner Parts Diagram

  • Title

1

Cub Cadet BS-805406

Screw, Sems
(Superseded to BS-691982)

$3.99

$

In Stock, only 4 left!

0

2

Cub Cadet BS-805655

Gasket, Air Cleaner
(Superseded to BS-692081)

$5.49

$

In Stock, only 3 left!

0

3

Cub Cadet BS-807796

Bracket, Air Cleaner
(Superseded to BS-692153)

$9.49

$

In Stock, only 1 left!

0

4

Cub Cadet BS-807857

Base, Air Cleaner
(Superseded to BS-691561)

$

$

Not available

5

Cub Cadet BS-394018

Cartridge, Air Cleaner
(Superseded to BS-394018S)

$25.99

$

In Stock, Qty 12

0

6

Cub Cadet BS-807862

Cover, Air Cleaner
(Superseded to BS-699959)

$59.99

$

In Stock, only 4 left!

0

7

Cub Cadet BS-491875

Knob, Air Cleaner
(Superseded to BS-691985)

$7.99

$

In Stock, Qty 9

0

8

Cub Cadet BS-805406

Screw, Sems
(Superseded to BS-691982)

$3.99

$

In Stock, only 4 left!

0

9

Cub Cadet BS-805057

Screw, Sems
(Superseded to BS-691492)

$3.99

$

In Stock, only 2 left!

0

10

Cub Cadet BS-271271

Element, Foam
(Superseded to BS-272490S)

$5.49

$

In Stock, Qty 20+

0

11

Cub Cadet BS-807797

Shield Assy
(Superseded to BS-844930)

$36.99

$

Usually ships in 2-12 days

0

12

Cub Cadet BS-805631

Plate, Air Cleaner
(Superseded to BS-844932)

$22.99

$

In Stock, Qty 7

0

13

Cub Cadet BS-805632

Tube, Air Inlet

$

$

Not available

14

Cub Cadet 779-3602

Label, Vanguard Engine

$

$

Not available
