16404 - Toro Walk-Behind Mower (SN: 020000001 - 029999999) (1992) HANDLE ASSEMBLY Parts Diagram

Walk-Behind Mower

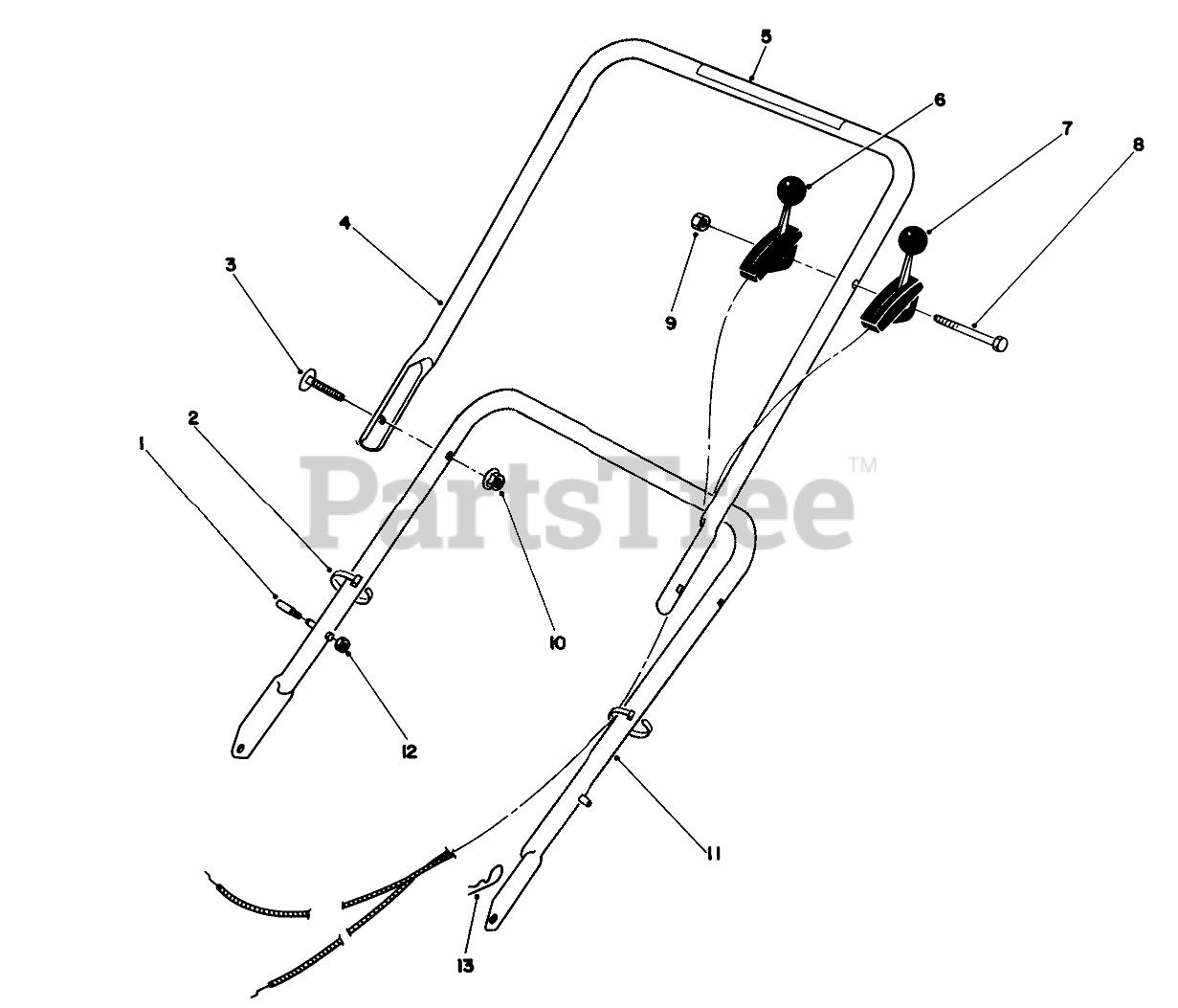

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 49-2750

HANDLE PIN

$36.99

$

Usually ships in 3-6 days

0

2

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

3

Toro 17-9424

SCREW
(Superseded to 6-6330)

$

$

Not available

4

Toro 13-2369

Handle-Upper (Incl. Ref. #5)

$

$

Not available

5

Toro 63-8540

DECAL - HANDLE

$

$

Not available

6

Toro 74-3871

TRACTION CONTROL

$

$

Not available

7

Toro 76-3247

THROTTLE CONTROL

$

$

Not available

8

Toro 321-15

SCREW-HH

$1.49

$

In Stock, Qty 11

0

9

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

10

Toro 3296-58

NUT-LOCK, NI

$2.99

$

In Stock, only 1 left!

0

11

Toro 49-1690

LOWER HANDLE ASM

$173.99

$

Usually ships in 3-6 days

0

12

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 12

0

13

Toro 3290-255

PIN-COTTER, HAIR

$8.99

$

In Stock, only 1 left!

0
