16404 - Toro Walk-Behind Mower (SN: 010000001 - 019999999) (1991) ENGINE BRIGGS & STRATTON MODEL 122702-3171-01 Parts Diagram

Walk-Behind Mower

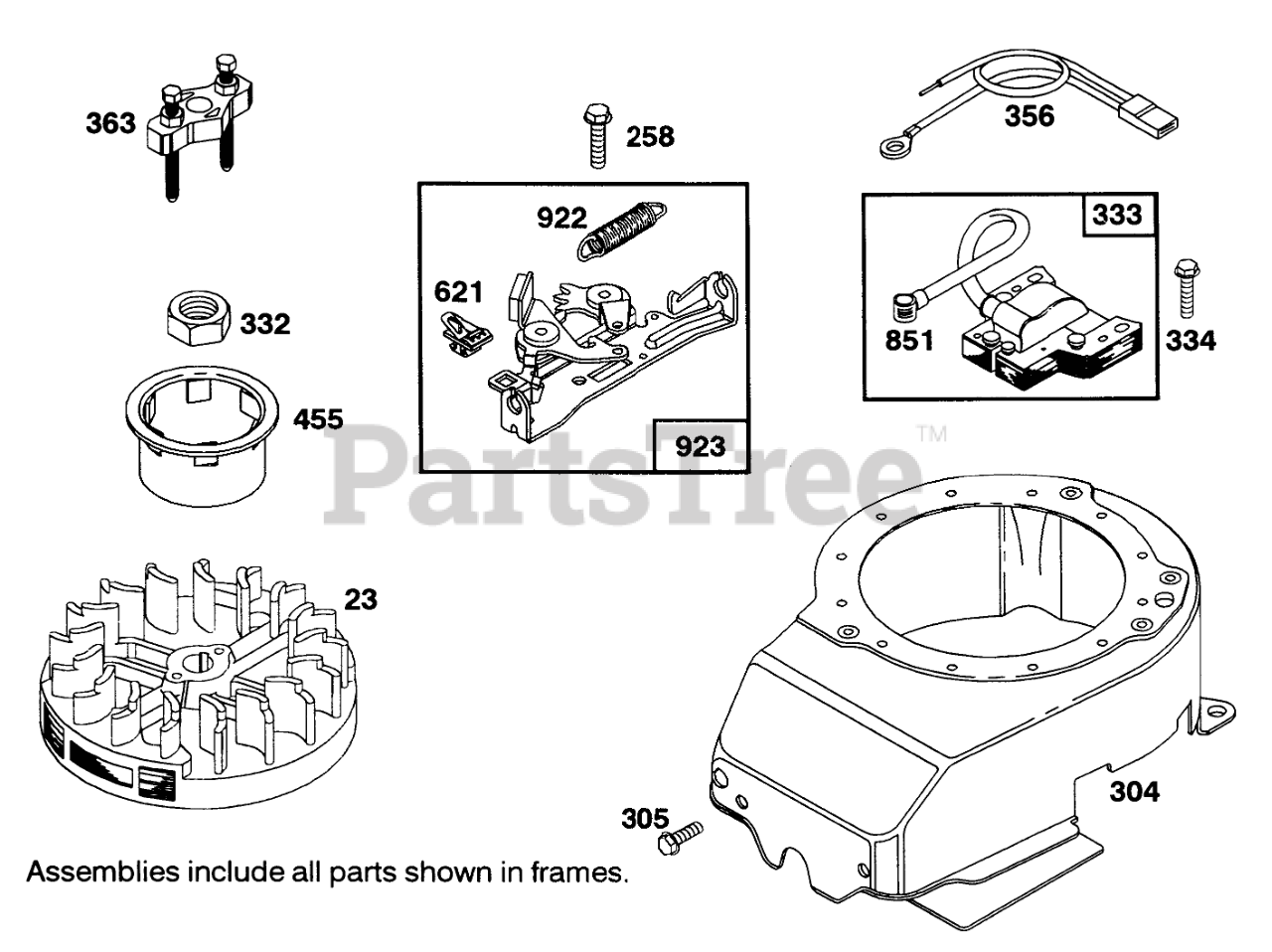

ENGINE BRIGGS & STRATTON MODEL 122702-3171-01 Parts Diagram

  • Title

23

Briggs & Stratton 492177

Flywheel
(Superseded to 691987)

$112.99

$

In Stock, only 1 left!

0

258

Briggs & Stratton 94512

Screw-Sem
(Superseded to 691648)

$4.99

$

Usually ships in 2-12 days

0

304

Briggs & Stratton 493293

Housing-Blower
(Superseded to 795071)

$102.99

$

In Stock, only 3 left!

0

305

Briggs & Stratton 94513

Screw-Sem
(Superseded to 692198)

$5.99

$

In Stock, Qty 12

0

332

Briggs & Stratton 92284

Nut
(Superseded to 690662)

$5.99

$

In Stock, only 1 left!

0

333

Briggs & Stratton 802574

Armature-Magneto
(Superseded to 590454)

$57.99

$

In Stock, Qty 20+

0

334

Briggs & Stratton 93381

Screw
(Superseded to 691061)

$3.49

$

In Stock, Qty 20+

0

356

Briggs & Stratton 398808

Wire Stop

$11.99

$

In Stock, only 1 left!

0

363

Briggs & Stratton 19069

Puller-Flywheel

$23.99

$

In Stock, only 1 left!

0

455

Briggs & Stratton 224250

Cup-Starter

$9.49

$

Usually ships in 2-12 days

0

621

Briggs & Stratton 396847

Switch
(Superseded to 692310)

$5.99

$

In Stock, Qty 20+

0

851

Briggs & Stratton 221798

Terminal-Cable
(Superseded to 493880S)

$3.49

$

In Stock, Qty 20+

0

922

Briggs & Stratton 262640

Brake Spring
(Superseded to 691831)

$10.99

$

In Stock, only 2 left!

0

923

Briggs & Stratton 492918

Brake Ass-y
(Superseded to 796387)

$

$

Not available
