16402 - Toro Walk-Behind Mower (SN: 010000001 - 019999999) (1991) ENGINE BRIGGS & STRATTON MODEL 122707-3187-01 Parts Diagram

Walk-Behind Mower

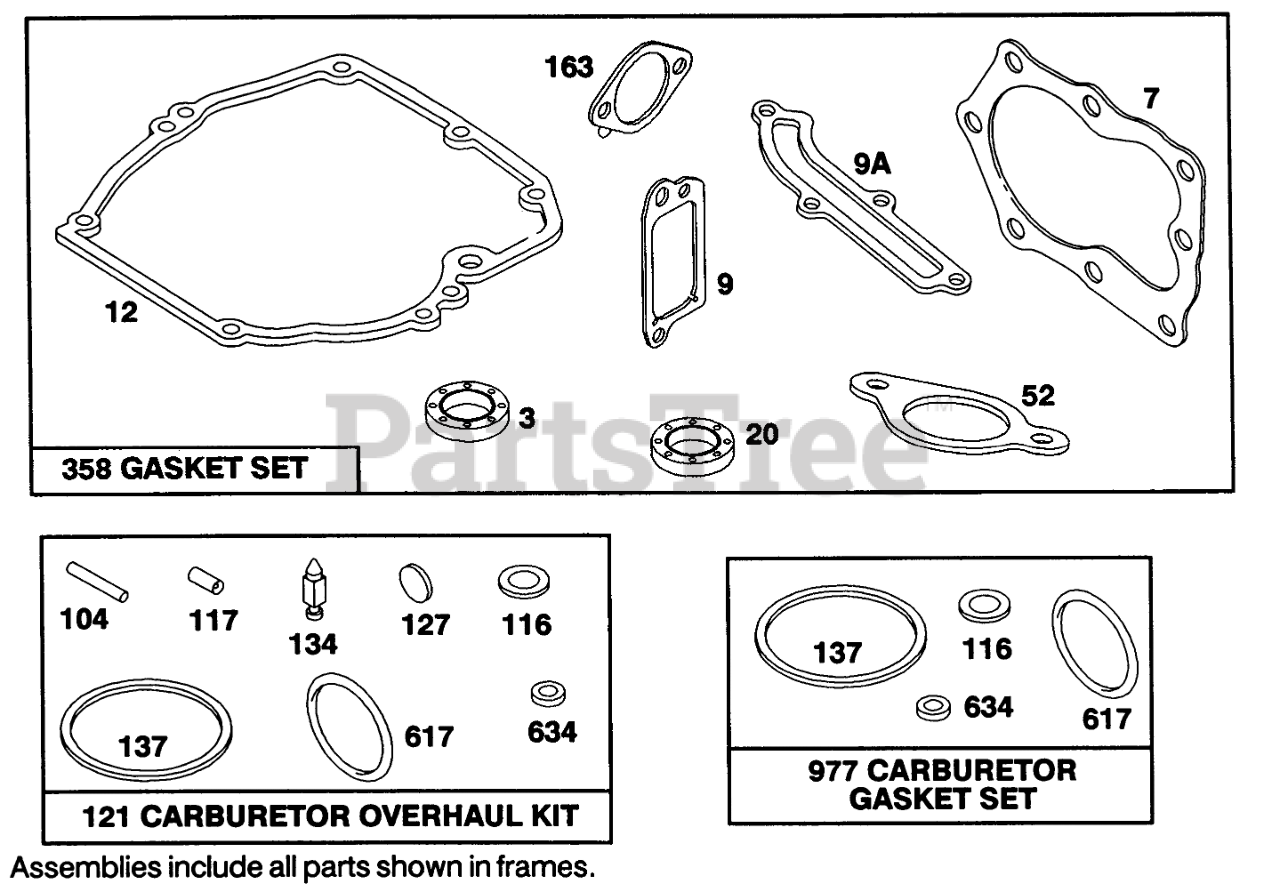

ENGINE BRIGGS & STRATTON MODEL 122707-3187-01 Parts Diagram

  • Title

3

Briggs & Stratton 393862

Seal-Oil
(Superseded to 299819S)

$5.49

$

In Stock, Qty 13

0

7

Briggs & Stratton 272200

Gasket-Cylinder Hd
(Superseded to 272200S)

$

$

Not available

9

Briggs & Stratton 271904

Gasket-Valve Cover
(Superseded to 699833)

$5.49

$

In Stock, only 1 left!

0

9A

Briggs & Stratton 272238

Gasket-Breather
(Superseded to 691879)

$6.99

$

In Stock, only 1 left!

0

12

Briggs & Stratton 272198

Gasket
(Superseded to 692232)

$5.99

$

In Stock, Qty 20+

0

20

Briggs & Stratton 399781

Seal-Oil
(Superseded to 399781S)

$7.99

$

In Stock, Qty 20+

0

52

Briggs & Stratton 272199

Gasket-Intake
(Superseded to 272199S)

$4.99

$

In Stock, only 1 left!

0

104

Briggs & Stratton 231371

Spring
(Superseded to 797622)

$3.99

$

In Stock, Qty 10

0

116

Gasket-Sealing (Sold in Kit Only).

$

$

Not available

117

Jet (Sold in Kit Only).

$

$

Not available

121

Briggs & Stratton 493762

Carburetor Kit
(Superseded to 498260)

$16.99

$

In Stock, Qty 20+

0

Toro 127

603 1963 OPC

$3.23

$

Usually ships in 3-6 days

0

134

Briggs & Stratton 398188

Valve-Inlet (Includes Seat)

$6.49

$

In Stock, Qty 20+

0

137

Gasket-Bowl (Sold in Kit Only).

$

$

Not available

163

Briggs & Stratton 272296

Gasket-Air Cleaner

$4.99

$

In Stock, only 1 left!

0

358

Briggs & Stratton 493263

Gasket Set
(Superseded to 496117)

$40.99

$

Usually ships in 2-12 days

0

617

Briggs & Stratton 270344

Seal-O Ring
(Superseded to 270344S)

$3.49

$

In Stock, Qty 20+

0

634

Washer-Shaft (Sold in Kit Only)

$

$

Not available

977

Briggs & Stratton 490937

Gasket Set-Carb
(Superseded to 498260)

$16.99

$

In Stock, Qty 20+

0
