16401 - Toro Walk-Behind Mower (SN: 079000001 - 079999999) (1997) HOUSING ASSEMBLY Parts Diagram

Walk-Behind Mower

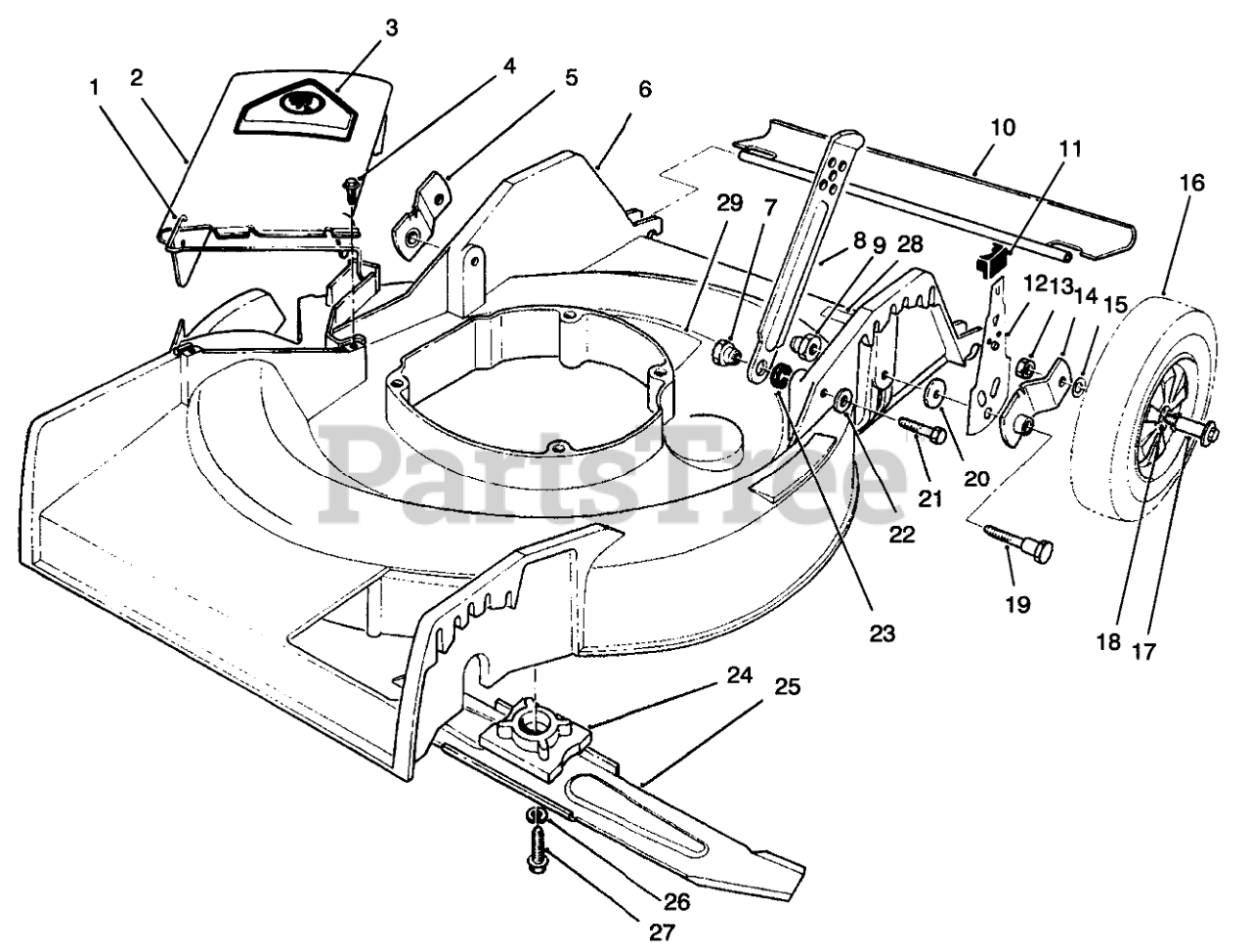

HOUSING ASSEMBLY Parts Diagram

  • Title
1

Toro 20-2640

SPRING HINGE

$

$

Not available

2

Toro 13-4049

Deflector Assembly (Incl. Ref. #1 & 3)

$

$

Not available

3

Toro 39-5770

DECAL-DANGER

$7.99

$

In Stock, Qty 8

0

4

Toro 46-6811

SCREW-HWH

$3.49

$

In Stock, only 3 left!

0

5

Toro 20-2130

Pivot Arm
(Superseded to 98-1527)

$

$

Not available

6

Toro 13-3489

Housing-21" (Incl. Ref. #28 & 29)

$

$

Not available

7

Toro 27-6520

HANDLE PIVOT NUT

$8.99

$

Usually ships in 3-6 days

0

8

Toro 82-7621

Latch-Handle
(Superseded to 82-7621-03)

$

$

Not available

9

Toro 12-2080

HANDLE PIVOT NUT

$22.99

$

Usually ships in 3-6 days

0

10

Toro 66-5990

SHIELD - TRAILING

$

$

Not available

11

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 8

0

12

Toro 66-6030

REAR SPRING ARM ASM

$14.99

$

Usually ships in 3-6 days

0

13

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

14

Toro 20-2140

Pivot Arm
(Superseded to 98-1511)

$

$

Not available

15

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 20+

0

16

Toro 27-6200

Wheel & Tire Assembly (Incl. Ref. #18)

$

$

Not available

17

Toro 27-6231

WHEEL BOLT

$5.99

$

In Stock, Qty 8

0

18

Toro 27-6250

BUSHING

$2.99

$

In Stock, Qty 15

0

19

Toro 3-0655

5/16-18 PIVOT SCREW

$15.99

$

In Stock, only 1 left!

0

20

Toro 33-0390

PIVOT WASHER

$3.49

$

In Stock, only 2 left!

0

21

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

22

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

23

Toro 3-3287

SPACER

$5.49

$

In Stock, Qty 6

0

24

Toro 49-7900

BLADE RETAINER

$63.99

$

In Stock, only 2 left!

0

25

Toro 20-2720

Blade
(Superseded to 20-2720-03)

$36.99

$

In Stock, only 2 left!

0

26

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

27

Toro 26-0671

SCREW-HH

$9.49

$

In Stock, Qty 20+

0

28

Toro 92-1779

DECAL-WARNING

$8.49

$

Usually ships in 3-6 days

0

29

Toro 71-1280

DECAL-INSTRUCTION, SAFETY

$31.99

$

In Stock, Qty 13

0
