16401 - Toro Walk-Behind Mower (SN: 069000001 - 069999999) (1996) Engine Briggs Stratton Model 127702-0645-01 Parts Diagram

Walk-Behind Mower

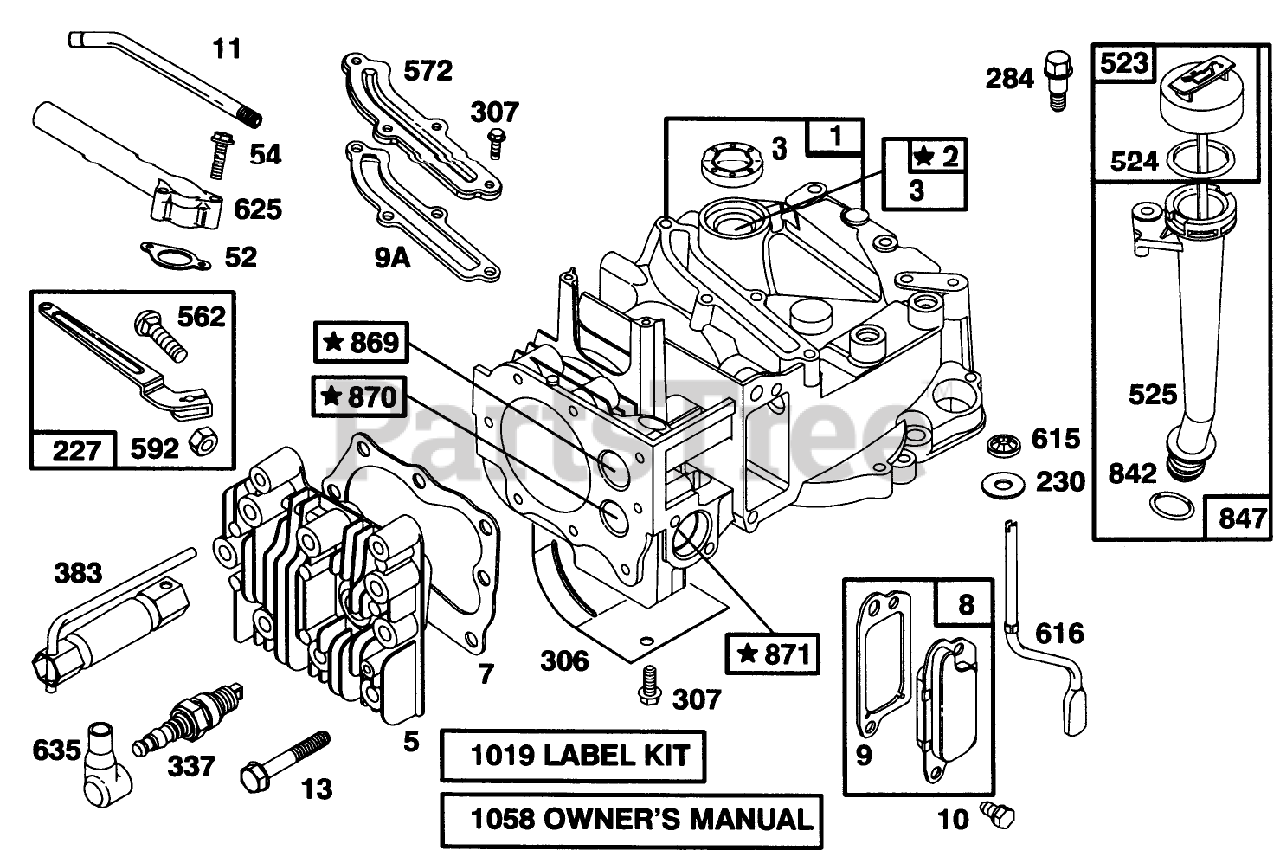

Engine Briggs Stratton Model 127702-0645-01 Parts Diagram

  • Title

1

Toro 493260

Cylinder

$

$

Currently unavailable

2

Toro 293708

Bushing

Note: REQUIRES SPECIAL TOOLS TO INSTALL SEE REPAIR INSTRUCTION MANUAL

$

$

Currently unavailable

3

Toro 299819

Seal-Oil

Note: Included in Gasket Set-Part No. 497316.

$

$

Currently unavailable

5

Toro 214349

Head-Cylinder

$

$

Currently unavailable

7

Toro 272916

Gasket-Cylinder Hd

Note: Included in Gasket Set-Part No. 497316.

$

$

Currently unavailable

8

Toro 495786

Breather ASM

$

$

Currently unavailable

9

Toro 272481

Gasket?Breather

Note: Included in Gasket Set-Part No. 497316.

$

$

Currently unavailable

9A

Toro 272238

Gasket-Breather

Note: Included in Gasket Set-Part No. 497316.

$

$

Currently unavailable

10

Toro 94650

Screw-Hex.

$

$

Currently unavailable

11

Toro 231933

Breather Tube

$

$

Currently unavailable

13

Toro 94547

Screw-Hex.

$

$

Currently unavailable

52

Toro 272199

Gasket-Intake

Note: Included in Gasket Set-Part No. 497316.

$

$

Currently unavailable

54

Toro 94526

Screw-Hex

$

$

Currently unavailable

227

Toro 492349

Lever Ass-y. Gov.

$

$

Currently unavailable

230

Toro 67072

Washer

$

$

Currently unavailable

284

Toro 94511

Screw-Hex.

$

$

Currently unavailable

306

Toro 224324

Shield-Cylinder

$

$

Currently unavailable

307

Toro 94515

Screw-Sem

$

$

Currently unavailable

337

Toro 802592

Plug-Spark

$

$

Currently unavailable

383

Toro 89838

Wrench-Plug, Spark

$

$

Currently unavailable

523

Toro 495264

Dipstick

$

$

Currently unavailable

524

Toro 280393

O-Ring Seal

Note: Included in Gasket Set-Part No. 497316.

$

$

Currently unavailable

525

Toro 495265

Tube-Dipstick

$

$

Currently unavailable

562

Toro 92613

Bolt

$

$

Currently unavailable

572

Toro 224328

Cover-Breather

$

$

Currently unavailable

592

Toro 231082

Nut (Governor Control Lever)

$

$

Currently unavailable

615

Toro 94474

Pushnut

$

$

Currently unavailable

616

Toro 262578

Crank-Govemor

$

$

Currently unavailable

625

Toro 281085

Tube-Fuel Intake

$

$

Currently unavailable

635

Toro 66538

Boot-Plug, Spark

$

$

Currently unavailable

842

Toro 280966

O-Ring Seal

Note: Included in Gasket Set-Part No. 497316.

$

$

Currently unavailable

847

Toro 495263

Tube-Oil Filler

$

$

Currently unavailable

869

Toro 213512

Seat-IntakeValve

Note: REQUIRES SPECIAL TOOLS TO INSTALL SEE REPAIR INSTRUCTION MANUAL

$

$

Currently unavailable

870

Toro 213513

Exhaust Valve Seat

Note: REQUIRES SPECIAL TOOLS TO INSTALL SEE REPAIR INSTRUCTION MANUAL

$

$

Not available

871

Toro 262001

Bushing-Guide

Note: REQUIRES SPECIAL TOOLS TO INSTALL SEE REPAIR INSTRUCTION MANUAL

$

$

Currently unavailable

1019

Toro 494256

Label Kit

$

$

Currently unavailable

1058

Toro 272262

Owner-s Manual

$

$

Currently unavailable
