16401 - Toro Walk-Behind Mower (SN: 049000001 - 049999999) (1994) GEAR CASE ASSEMBLY Parts Diagram

Walk-Behind Mower

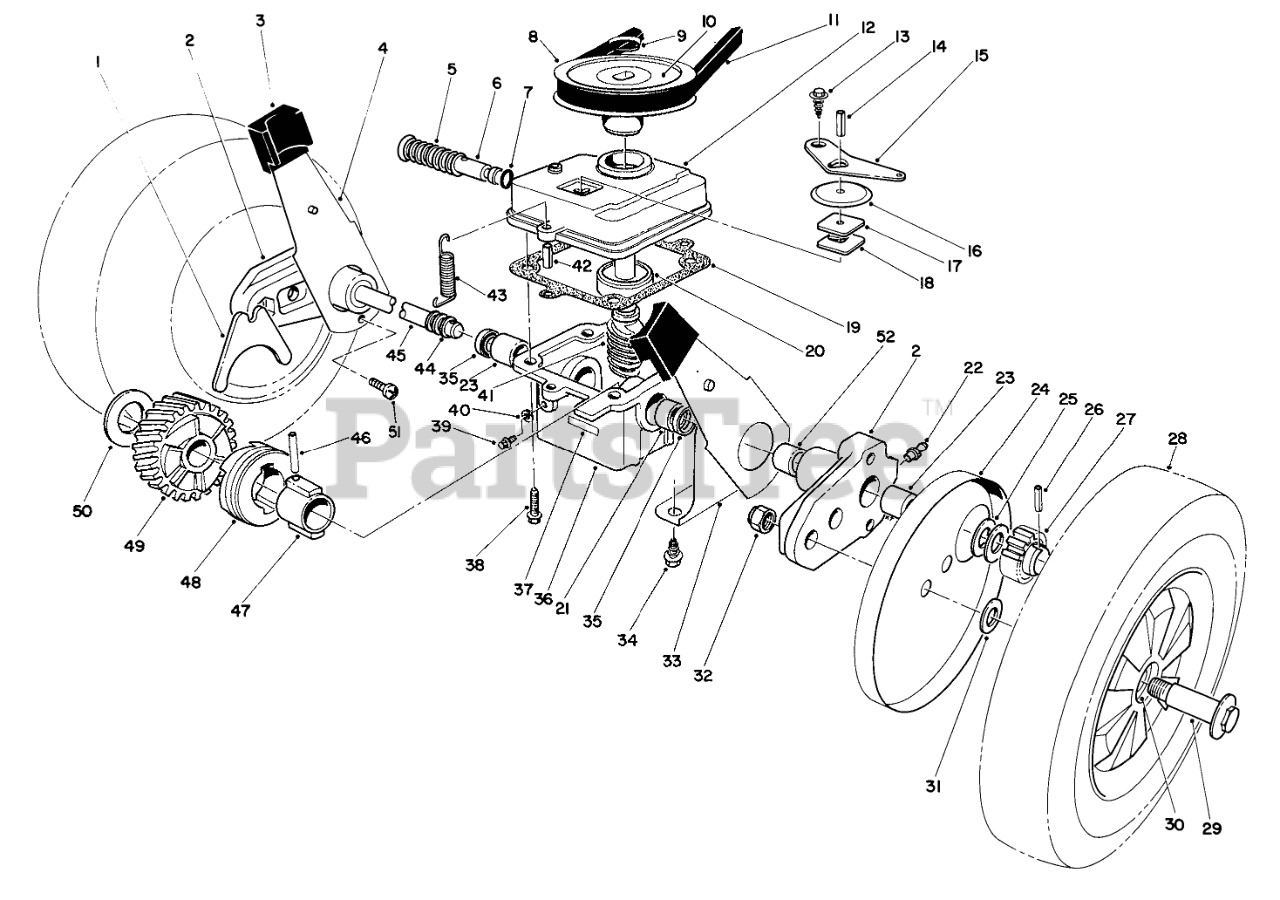

GEAR CASE ASSEMBLY Parts Diagram

  • Title

1

Toro 5-3247

SHIFTER FORK

$

$

Not available

2

Toro 66-6001

Arm-Pivot (Incl. Ref. #22, 23 & 52)

$55.99

$

In Stock, only 2 left!

0

3

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 20+

0

4

Toro 67-9370

SPRING ARM ASSY-FRONT

$31.99

$

Usually ships in 3-6 days

0

5

Toro 3-0731

SPRING

$11.99

$

Usually ships in 3-6 days

0

6

Toro 46-8240

SHIFTER ROD

$46.99

$

Usually ships in 3-6 days

0

7

Toro 237-137

O-RING

$15.99

$

Usually ships in 3-6 days

0

8

Toro 18-9760

PULLEY

$74.99

$

Usually ships in 3-6 days

0

9

Toro 3290-346

PUSH-ON 93-3236

$9.49

$

Usually ships in 3-6 days

0

10

Toro 33-2450

DECAL

$

$

Not available

11

Toro 5-4505

V BELT

$23.99

$

Usually ships in 3-6 days

0

12

Toro 39-1101

GEAR CASE COVER

$

$

Not available

13

Toro 32140-64

Screw
(Superseded to 32144-112)

$1.49

$

In Stock, Qty 20+

0

14

Toro 32121-114

SPIROL PIN H D

$2.49

$

Usually ships in 3-6 days

0

15

Toro 5-3252

SHIFTER ARM

$38.99

$

In Stock, only 1 left!

0

16

Toro 52-7380

DUST COVER

$

$

Not available

17

Toro 52-7370

DUST FILTER

$3.99

$

In Stock, only 2 left!

0

18

Toro 3-0681

LATCH PLATE

$

$

Not available

19

Toro 36-1000

GASKET

$10.99

$

Usually ships in 3-6 days

0

20

Toro 47-7250

BEARING

$72.99

$

Usually ships in 3-6 days

0

21

Toro 47-2890

BUSHING

$3.99

$

Usually ships in 3-6 days

0

22

Toro 302-56

FITTING-GREASE

$5.49

$

In Stock, only 1 left!

0

23

Toro 47-2900

BUSHING

$6.49

$

In Stock, Qty 20+

0

24

Toro 36-5630

Cover-Wheel
(Superseded to 36-5630-03)

$36.99

$

Usually ships in 3-6 days

0

25

Toro 46-6510

THRUST WASHER

$

$

Not available

26

Toro 32121-98

Pin
(Superseded to 32121-88)

$8.49

$

In Stock, only 2 left!

0

27

Toro 46-6520

PINION GEAR 15T

$27.99

$

In Stock, Qty 6

0

28

Toro 11-1419

Wheel, Tire & Gear Ass-y (Incl. Ref. #30)

$

$

Not available

29

Toro 27-6231

WHEEL BOLT

$5.99

$

In Stock, Qty 7

0

30

Toro 27-6250

BUSHING

$2.99

$

In Stock, only 4 left!

0

31

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 20+

0

32

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

33

Toro 68-9000

END CAP

$

$

Not available

34

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

35

Toro 47-6730

SEAL-OIL

$13.99

$

In Stock, Qty 20+

0

36

Toro 8-0479

Gear Case (Incl. Ref. #21, 23, & 35)

$258.99

$

Usually ships in 3-6 days

0

37

Toro 40-4755

DECAL

$1.99

$

Usually ships in 3-6 days

0

38

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

39

Toro 28-1550

NYLON SCREW

$

$

Not available

40

Toro 46-9640

FILL PLUG GASKET

$

$

Not available

41

Toro 8-5679

Worm Shaft & Gear (Incl. Ref. #49)

$165.99

$

In Stock, only 4 left!

0

42

Toro 32121-1

3/16 X 1/2 ROLL PIN

$4.49

$

In Stock, Qty 5

0

43

Toro 17-4490

TENSION SPRING

$21.99

$

In Stock, only 1 left!

0

44

Toro 24-7920

COVER-SHAFT, DRIVE

$11.99

$

Usually ships in 3-6 days

0

45

Toro 66-6020

DRIVE SHAFT

$90.99

$

Usually ships in 3-6 days

0

46

Toro 32121-88

COIL PIN

$8.49

$

In Stock, only 2 left!

0

47

Toro 3-0721

SLEEVE

$

$

Not available

48

Toro 19-5660

CLUTCH JAW

$46.99

$

Usually ships in 3-6 days

0

49

Helical Gear

$

$

Not available

50

Toro 3-0724

THRUST WASHER

$

$

Not available

51

Toro 63-8590

SCREW

$1.49

$

In Stock, only 4 left!

0

52

Toro 70-9760

BUSHING

$4.99

$

In Stock, Qty 20+

0

Toro 13-3479

GEAR CASE ASM W/DECAL

Note: Not illustrated

$

$

Not available

Toro 27-0490

BRG/SHAFT INSTALL TL

Note: Not illustrated

$

$

Not available

Toro 39-9640

SPECIAL TOOL

Note: Not illustrated

$27.99

$

Usually ships in 3-6 days

0

Toro 39-9640

SPECIAL TOOL

Note: Use with 27-0490 Bearing & Shaft Tool

$27.99

$

Usually ships in 3-6 days

0

Toro 27-0460

SP ROTARY BSHG TOOL

Note: Not illustrated

$

$

Not available
